Homework Answers
Add Answer to:

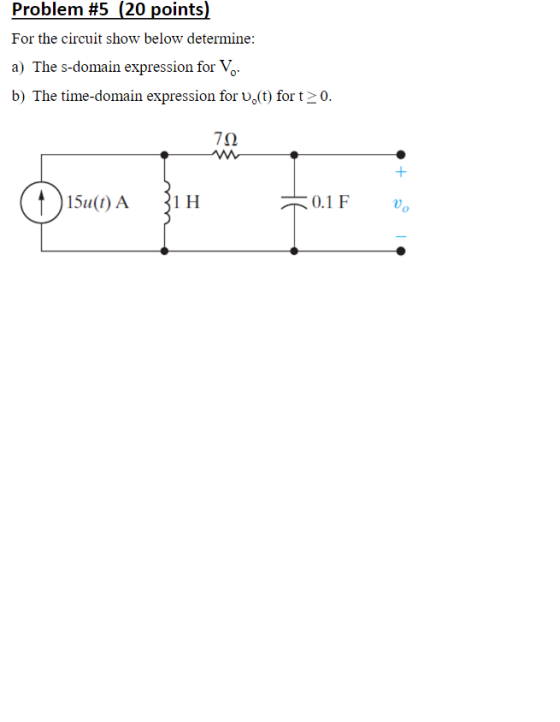

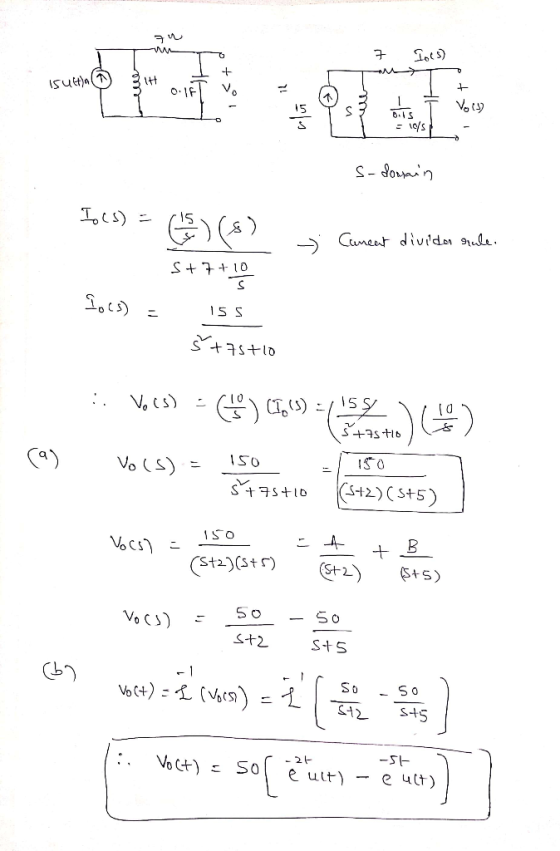

Problem #5 (20 points) For the circuit show below determine: a) The s-domain expression for V....
In the circuit below, determine: a) The transformed circuit in the Laplace domain b) Expression for...
In the circuit below, determine: a) The transformed circuit in the Laplace domain b) Expression for V(s) c) i(t); t 0 using transform techniques 422 302 2u(t) Is + I 4u(-t)
120 Problem 1, Use the node-voltage method to find the steady state expression for v () in the circuit shown. The sinusoidal sources are v,-35cos 50 t V'and i 20 sin 50 1 A 20 Ω 0 Problem 2 1...
120 Problem 1, Use the node-voltage method to find the steady state expression for v () in the circuit shown. The sinusoidal sources are v,-35cos 50 t V'and i 20 sin 50 1 A 20 Ω 0 Problem 2 120) Use the mesh-current method to find the steady state expression for velt) in the circuit shown. Answer must be in time domain. Below excitation voltage v is given in time domain v(t) 0.75 V,<t 2 Ω ) 5osin(40140°) Problem 3...
2. For the circuit in problem 1 above: a) Transform the circuit into the s-domain b)...
2. For the circuit in problem 1 above: a) Transform the circuit into the s-domain b) Using Laplace transform techniques applied directly to the circuit (not applied to the differential equation found in problem 1), find iz(t), t > 0. No credit for time- domain techniques. IX V 40 + - 5+10u(t) 10 H 1/4 F 2. For the circuit in problem 1 above: a) Transform the circuit into the s-domain b) Using Laplace transform techniques applied directly to the...
Problem 1: For the circuit below, use TIME DOMAIN TECHNIQUES. a) Find v, i, and the...
Problem 1: For the circuit below, use TIME DOMAIN TECHNIQUES. a) Find v, i, and the time constant. Clearly show your work in the document that you submit after the test. b) Enter the time constant, v(O), and i(0) into Blackboard. c) Sketch the time response of this circuit. Remember to label your axis!!! 312 10u(-t) V (+) 0.1 F + WWW (4) lut)A
Solving for The switch in the circuit below has been closed for a long time and it opens at t = 0. Find the following: f...
Solving for The switch in the
circuit below has been closed for a long time and it opens at t =
0. Find the following:
for b) can you solve it without using Laplace transform? As in
no s domain, thank you
1. The switch in the circuit below has been closed for a long time and it opens at t = 0. Find the following: (a) (20 points) v(0%), and v.(0%) for t < 0. (b) (20 points) v(t),...
· [Bonus] Determine the Thevenin equivalent circuit below when v40 cos(4000t- 30°). Find the time domain expression for in the circuit below. What is the time domain express for the maximum power...
· [Bonus] Determine the Thevenin equivalent circuit below when v40 cos(4000t- 30°). Find the time domain expression for in the circuit below. What is the time domain express for the maximum power transfer for the circuit? for maximum power transfer? Reminder: Express all answers in time domain. Vth and the value for Rth 115 pts 1/80 mF 20 mH 80 2
· [Bonus] Determine the Thevenin equivalent circuit below when v40 cos(4000t- 30°). Find the time domain expression for in...
Problem #5 (20 points) Determine the voltages V, and V2 in the circuit shown below. 3...
Problem #5 (20 points) Determine the voltages V, and V2 in the circuit shown below. 3 kN V, 1k1 V2 V2 = V = 30 v © 33 kl 22 9 mA
please answer both questions Problem 3 (20 Points) There is no energy stored in the circuit...
please answer both
questions
Problem 3 (20 Points) There is no energy stored in the circuit fort <0. Use the Laplace transform to find the time domain expression for vo(t). 2002 2002 200u(t) V 10 MF 3400 mH Problem 4 (20 Points) For each circuit, calculate the transfer function, the poles of the transfer function 1204F and the zeros of the transfer function. 2 k2 20 MF 2k9 (b) 250 kA 125 mH 1) 125 mHg 250 0} (c) 800...
5. Shown here is the time-domain depiction of a circuit containing an ideal OpAmp. a) Sketch...
5. Shown here is the time-domain depiction of a circuit containing an ideal OpAmp. a) Sketch the corresponding phasor domain circuit assuming that vę (t) = V cos(ot+0). NVcci b) Derive the phasor domain expression for the output voltage phasor, V. TO -Vcci c) Determine the time domain output voltage, v. (t).
a. (10) For the circuit below, draw the s-domain equivalent circuit and show that H(S) =...
a. (10) For the circuit below, draw the s-domain equivalent circuit and show that H(S) = 2 2 . 2321H 0.5F V b. (10) Using Inverse Laplace Transforms, find the impulse response (1) c. (5) Briefly tell me in your own words what an impulse response is. d. (15) For an input, vt) = 2e- Transforms to find vo(t). use Laplace Transforms to find V.(s) and then use Inverse Laplace e. (5) Briefly discuss how convolution could have been used...
In the circuit below, determine: a) The transformed circuit in the Laplace domain b) Expression for V(s) c) i(t); t 0 using transform techniques 422 302 2u(t) Is + I 4u(-t)
120 Problem 1, Use the node-voltage method to find the steady state expression for v () in the circuit shown. The sinusoidal sources are v,-35cos 50 t V'and i 20 sin 50 1 A 20 Ω 0 Problem 2 120) Use the mesh-current method to find the steady state expression for velt) in the circuit shown. Answer must be in time domain. Below excitation voltage v is given in time domain v(t) 0.75 V,<t 2 Ω ) 5osin(40140°) Problem 3...
2. For the circuit in problem 1 above: a) Transform the circuit into the s-domain b) Using Laplace transform techniques applied directly to the circuit (not applied to the differential equation found in problem 1), find iz(t), t > 0. No credit for time- domain techniques. IX V 40 + - 5+10u(t) 10 H 1/4 F 2. For the circuit in problem 1 above: a) Transform the circuit into the s-domain b) Using Laplace transform techniques applied directly to the...
Problem 1: For the circuit below, use TIME DOMAIN TECHNIQUES. a) Find v, i, and the time constant. Clearly show your work in the document that you submit after the test. b) Enter the time constant, v(O), and i(0) into Blackboard. c) Sketch the time response of this circuit. Remember to label your axis!!! 312 10u(-t) V (+) 0.1 F + WWW (4) lut)A
Solving for The switch in the
circuit below has been closed for a long time and it opens at t =
0. Find the following:
for b) can you solve it without using Laplace transform? As in
no s domain, thank you
1. The switch in the circuit below has been closed for a long time and it opens at t = 0. Find the following: (a) (20 points) v(0%), and v.(0%) for t < 0. (b) (20 points) v(t),...
· [Bonus] Determine the Thevenin equivalent circuit below when v40 cos(4000t- 30°). Find the time domain expression for in the circuit below. What is the time domain express for the maximum power transfer for the circuit? for maximum power transfer? Reminder: Express all answers in time domain. Vth and the value for Rth 115 pts 1/80 mF 20 mH 80 2
· [Bonus] Determine the Thevenin equivalent circuit below when v40 cos(4000t- 30°). Find the time domain expression for in...
Problem #5 (20 points) Determine the voltages V, and V2 in the circuit shown below. 3 kN V, 1k1 V2 V2 = V = 30 v © 33 kl 22 9 mA
please answer both
questions
Problem 3 (20 Points) There is no energy stored in the circuit fort <0. Use the Laplace transform to find the time domain expression for vo(t). 2002 2002 200u(t) V 10 MF 3400 mH Problem 4 (20 Points) For each circuit, calculate the transfer function, the poles of the transfer function 1204F and the zeros of the transfer function. 2 k2 20 MF 2k9 (b) 250 kA 125 mH 1) 125 mHg 250 0} (c) 800...
5. Shown here is the time-domain depiction of a circuit containing an ideal OpAmp. a) Sketch the corresponding phasor domain circuit assuming that vę (t) = V cos(ot+0). NVcci b) Derive the phasor domain expression for the output voltage phasor, V. TO -Vcci c) Determine the time domain output voltage, v. (t).
a. (10) For the circuit below, draw the s-domain equivalent circuit and show that H(S) = 2 2 . 2321H 0.5F V b. (10) Using Inverse Laplace Transforms, find the impulse response (1) c. (5) Briefly tell me in your own words what an impulse response is. d. (15) For an input, vt) = 2e- Transforms to find vo(t). use Laplace Transforms to find V.(s) and then use Inverse Laplace e. (5) Briefly discuss how convolution could have been used...
