Question

120 Problem 1, Use the node-voltage method to find the steady state expression for v () in the circuit shown. The sinusoidal
0 0
Add a comment Improve this question Transcribed image text
Answer #1

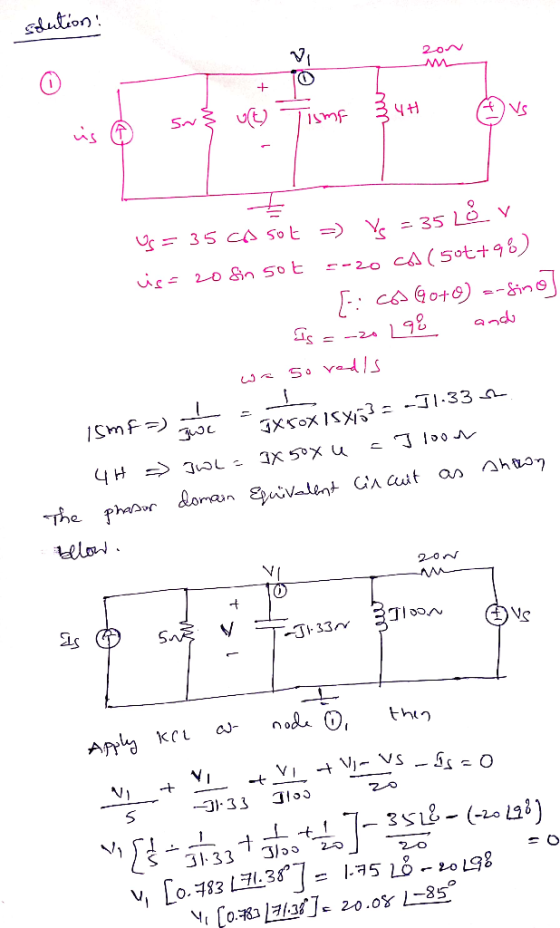

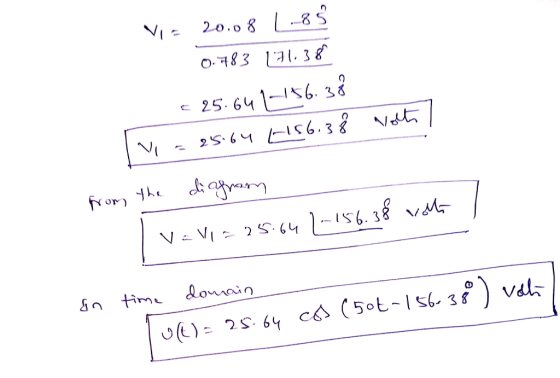

24 ts s -尹 as S 31.33 3 2> 2025.64 1si or

Add a comment
Know the answer?
Add Answer to:
120 Problem 1, Use the node-voltage method to find the steady state expression for v () in the circuit shown. The sinusoidal sources are v,-35cos 50 t V'and i 20 sin 50 1 A 20 Ω 0 Problem 2 1...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • Use the node-voltage method to find the steady-state expression for vo(t) in the circuit in (Figure...

    Use the node-voltage method to find the steady-state expression for vo(t) in the circuit in (Figure 1) if vg1= 10 sin(400t+143.13∘)V, vg2= 18.03cos(400t+33.69∘)V. Write the steady-state expression for vo(t) as vo=Vocos(ωt+ϕ), where −180∘<ϕ≤180∘. Find the numerical value of Vo. Find the numerical value of ϕ. Find the numerical value of ω. 50 mH 1500

  • Use the node-voltage method to find the steady-state expression for vo(t) in the circuit in (Figure...

    Use the node-voltage method to find the steady-state expression for vo(t) in the circuit in (Figure 1) if vg1= 19 sin(400t+143.13∘)V, vg2= 18.03cos(400t+33.69∘)V. Write the steady-state expression for vo(t) as vo=Vocos(ωt+ϕ), where −180∘<ϕ≤180∘. EE 211/EE 212 FA19 Circuits Analysis for Engineers KEE 211/212 HW #10 -- Impedances, Sinusoidal Steady State Analysis Problem 9.57 PSpicelMultisim Use the node-voltage method to find the steady-state expression for (t) in the circuit in (Figure 1) if gl19 sin(400t143.13°) V. g218.03 cos(400t 33.69o) V. Write...

  • Use the node voltage method to find the steady-state expression for io in the circuit seen...

    Use the node voltage method to find the steady-state expression for io in the circuit seen in (Figure 1) if ig 4 cos 2500t A and v, 16 cos(2500t + 90° ) V Write the steady-state expression for io(t) as to = L cos(wt + φ), where-180° <φ < 180° Figure く 1of1 100 μF 50 uF 12Ω View "31.6 mH 30

  • Use the node-voltage method, find the steady-state expression for vo (t) in the following circuit if...

    Use the node-voltage method, find the steady-state expression for vo (t) in the following circuit if v,(t) 20 cos(5000t +60) V and v2 (t)10sin(50001) V 0.8mH 8S2 it40uF

  • Use the node-voltage method to find the steady-state expression for io in the circuit seen in...

    Use the node-voltage method to find the steady-state expression for io in the circuit seen in (Figure 1) if ig= 6 cos2500tA and vg= 20 cos(2500t+90∘)V. Write the steady-state expression for io(t) as io=Iocos(ωt+ϕ), where −180∘<ϕ≤180∘. Assignment 8 Problem 9.56 13 of 19 > Review I Constants Part A Use the node-voltage method to find the steady-state expression ror io in the circuit seen in (Figure 1)T = 6 cos 2500t A and Find the numerical value of 2250090) V...

  • Use the node-voltage method to find the steady-state expression for voft) in the circuit below if...

    Use the node-voltage method to find the steady-state expression for voft) in the circuit below if Vg1 20*cos(2000t - 36.879) V, Vg2 50*sin(2000t 16.269) V 100 μF 1 mH 0, 10Ω Vg2

  • For the circuit shown, find the steady-state voltage across the inductor v (t), when us 1 (t) = 2...

    For the circuit shown, find the steady-state voltage across the inductor v (t), when us 1 (t) = 20 cos(1000t) V, vs2(t) = 30 cos(1000t-90') V, using: (a) The mesh-current method (b) The node-voltage method. (c) The Source transformation Method (d) The superposition Principle (e The Thevenin's equivalent at the terminals a-b. 200μF VL 15mH Vs2 10Ω For the circuit shown, find the steady-state voltage across the inductor v (t), when us 1 (t) = 20 cos(1000t) V, vs2(t) =...

  • For the circuit shown, find the steady-state voltage across the inductor v (t), when us 1 (t) = 2...

    For the circuit shown, find the steady-state voltage across the inductor v (t), when us 1 (t) = 20 cos(1000t) V, vs2(t) = 30 cos(1000t-90') V, using: (a) The mesh-current method (b) The node-voltage method. (c) The Source transformation Method (d) The superposition Principle (e The Thevenin's equivalent at the terminals a-b. 200μF VL 15mH Vs2 10Ω For the circuit shown, find the steady-state voltage across the inductor v (t), when us 1 (t) = 20 cos(1000t) V, vs2(t) =...

  • You have the following circuit in sinusoidal steady-state. Use phasor circuit analysis to find the time...

    You have the following circuit in sinusoidal steady-state. Use phasor circuit analysis to find the time domain expression for the steady-state current, i(t), and steady-state voltages, VR(t), VC(t) and VL(t). Vs(t) = 50 cos(1000t) Volts. Problem 1 (20 points) You have the following circuit in sinusoidal steady-state. Use phasor circuit analysis to find the time domain expression for the steady-state current, i(t), and steady- state voltages, Vr(t), Vc(t) and Vl(t). Vs(t) = 50 cos(1000t) Volts. i(t) 100 12 25 mH...

  • 2- A circuit across the terminals of a sinusoidal voltage source, as shown in Figure 2....

    2- A circuit across the terminals of a sinusoidal voltage source, as shown in Figure 2. The steady-state expression for the source voltage is v;=50.cos(1000t+20). (40 points) 12 mH 100 MF 10 Figure 2 a) Construct the frequency-domain equivalent circuit. b) Calculate the steady-state current i by the phasor method.
