You are designing a household washing machine that is to be equipped with a 60 Hz...

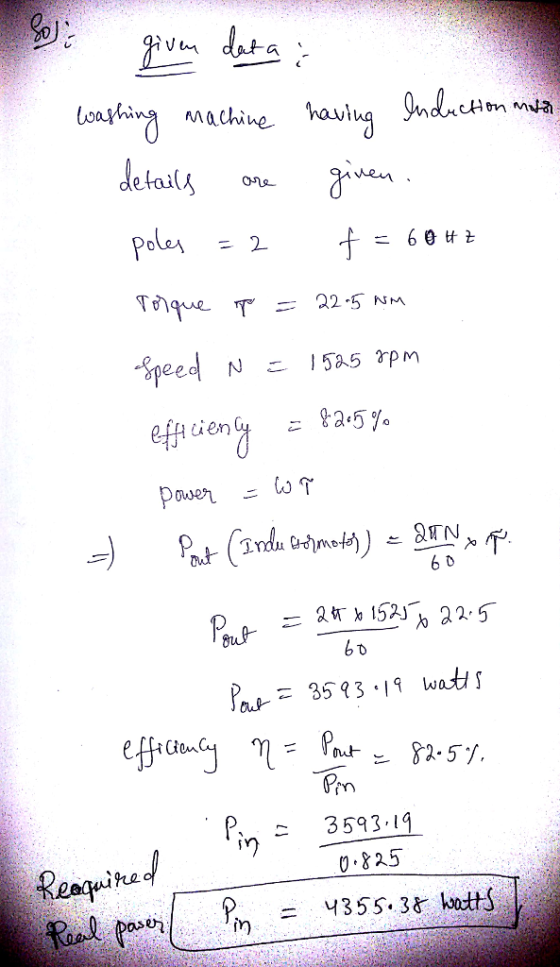

You are designing a household washing machine that is to be equipped with a 60 Hz , 2 pole induction motor which produces 22.5 torque N*m at speed of 1525 rpm. efficiency is 82.5%. compute the real power requirement in watts.
Homework Answers
Add Answer to:
You are designing a household washing machine that is
to be equipped with a 60 Hz...
A 4 phase, 460 V, 60 Hz, 26.8 hp, 4 pole, Y-connected induction motor draws 25...
A 4 phase, 460 V, 60 Hz, 26.8 hp, 4 pole, Y-connected
induction motor draws 25 A at a power factor of 0.9 lagging. Core
loss is 900 W, stator copper loss is 1100W, friction and winding
losses are 300 W, and stray loss is neglected. The machine shaft
rotates at 1738 rpm. Calculate the air gap power and output load
torque
- [Induction Motor - 15 points) A three-phase, 460 V, 60 Hz, 26.8 hp, 4-pole, Y-connected induction motor...
Q3) A 400-V, 3-phase, 50-HZ, 4-pole Y-connected synchronous machine is operated as a motor and draws 27A at 0.77 PF leading. The motor armature resistance is 0.50/Phase and synchronous reactance i...
Q3) A 400-V, 3-phase, 50-HZ, 4-pole Y-connected synchronous machine is operated as a motor and draws 27A at 0.77 PF leading. The motor armature resistance is 0.50/Phase and synchronous reactance is j12Ω /phase. The rotational loss is 200 watts. The field winding has a resistance of 0.4Ω and is supplied by 50V DC sources. Determine the following: a) Real and reactive power drawn by the motor b) The power developed c) The torque angle d) The shaft torque e) Efficiency...
A 3-phase, 208 V, 60 Hz, 30 hp, four-pole induction motor
A 3-phase, 208 V, 60 Hz, 30 hp, four-pole induction motor has the following equivalent circuit parameters. R1 = 0.2 Ω, , , Xm = 12Ω.The rotational loss is 500 W. For a slip of 5%, calculate (a) The motor speed in rpm and radians per sec (b) The current drawn by the motor from the power supply (c) The stator cu-loss (d) The air gap power (e) The rotor cu-loss (f) The shaft power (g)The developed torque and the shaft torque (h) The efficiency of the motor Use...
6. [Induction Motor - 15 points] A three-phase, 460 V, 60 Hz, 26.8 hp, 4-pole, Y-connected...
6. [Induction Motor - 15 points] A three-phase, 460 V, 60 Hz, 26.8 hp, 4-pole, Y-connected induction motor draws 25 A at a power factor of 0.9 lagging. The core loss is 900 W, stator copper loss is 1100 W, friction and windage loss is 300 W, and stray loss is neglected. The machine shaft rotates at a speed of 1738 rpm. Calculate the air gap power and output load torque.
1. A 15 hp, 4 pole, 208 V, 60 Hz, Y-connected, three-phase squirrel cage induction motor has the ...
1. A 15 hp, 4 pole, 208 V, 60 Hz, Y-connected, three-phase squirrel cage induction motor has the following parameters in Ω/phase referred to the stator: R,-0.220, Xi = 0.430, X,-15.0, R2 0.130 and X2-0.430. Mechanical and core losses amount to 300 W and 200 W respectively for rated voltage. (a) The motor is fed with a 60 Hz, 208 V voltage. It runs with a slip of 4.5 %. Find the speed, shaft torque and power, efficiency and power...
A three-phase 60 Hz induction motor 480 v (rms, line- to line), lo tp, spee is...
A three-phase 60 Hz induction motor 480 v (rms, line- to line), lo tp, spee is 12 amperes (rms), total stator Copper loss is Copper loss is 150 W, total combine with operation at the specified paramders, a) The number of Poles ! induction motor has specifications as follows R- to line), lo tp, speed is 1765 RPM, line Current stal Stator Copper loss is 140 w, total rotor is 15o W , total combined rotational loss is losw the...
Help ASAP #3. A 3-phase, 220 V, 4-pole, 60 Hz induction motor has the following parameters...
Help ASAP
#3. A 3-phase, 220 V, 4-pole, 60 Hz induction motor has the following parameters referred to (jDraw the equivalent circuit of the motor. Find (0) the motor speed (l) the input current (iii) The input power factor (iv) the motor torque (v) the efficiency of the motor.
A two-pole, 75kW, 440 V, 50 Hz, Y-connected, three-phase squirrel cage induction motor has the fo...
Please solve this question. Thank you.
A two-pole, 75kW, 440 V, 50 Hz, Y-connected, three-phase squirrel cage induction motor has the following parameters, in Ω/phase referred to the stator: R1-0.075, XI 0.17, xm-72, R2-0.065 and X-0.17. Its rated slip is 4%. Assume that the mechanical losses are 1 kW and the core losses are 1.1 kW. Compute: a. The rated input current b. The rated power factor. c. The pullout torque d. The induced and load torques at rated conditions....
A three phase, 60 Hz induction motor rated at 440 V and 40 hp drives a...
A three phase, 60 Hz induction motor rated at 440 V and 40 hp drives a load at 1710 rpm. The induction motor has the following impedances referred to the stator in /phase: R,=0.1512, X,=0.7512; R2=1.222,X=0.7522; X=25 12 . The core loss is 450 W and friction and windage loss is 250 W. Calculate the following 1. line current and power factor 2. Real and reactive input power 3. Air-gap power 4. Mechanical power and torque developed 5. shaft horse...
Problem 3: Consider an 6 pole 3-phase AC induction motor being driven at 60 Hz a)...
Problem 3: Consider an 6 pole 3-phase AC induction motor being driven at 60 Hz a) b) c) d) When connected to a load, the motor outputs 2 kW of power assuming negligible rotational losses while rotating at a speed of 1070 rpm. What is the slip? (5 points) When connected to a load, the motor outputs 2 kW of power assuming negligible rotational losses while rotating at a speed of 1070 rpm. What is the developed torque? (5 points)...
A 4 phase, 460 V, 60 Hz, 26.8 hp, 4 pole, Y-connected
induction motor draws 25 A at a power factor of 0.9 lagging. Core
loss is 900 W, stator copper loss is 1100W, friction and winding
losses are 300 W, and stray loss is neglected. The machine shaft
rotates at 1738 rpm. Calculate the air gap power and output load
torque
- [Induction Motor - 15 points) A three-phase, 460 V, 60 Hz, 26.8 hp, 4-pole, Y-connected induction motor...
Q3) A 400-V, 3-phase, 50-HZ, 4-pole Y-connected synchronous machine is operated as a motor and draws 27A at 0.77 PF leading. The motor armature resistance is 0.50/Phase and synchronous reactance is j12Ω /phase. The rotational loss is 200 watts. The field winding has a resistance of 0.4Ω and is supplied by 50V DC sources. Determine the following: a) Real and reactive power drawn by the motor b) The power developed c) The torque angle d) The shaft torque e) Efficiency...
6. [Induction Motor - 15 points] A three-phase, 460 V, 60 Hz, 26.8 hp, 4-pole, Y-connected induction motor draws 25 A at a power factor of 0.9 lagging. The core loss is 900 W, stator copper loss is 1100 W, friction and windage loss is 300 W, and stray loss is neglected. The machine shaft rotates at a speed of 1738 rpm. Calculate the air gap power and output load torque.
1. A 15 hp, 4 pole, 208 V, 60 Hz, Y-connected, three-phase squirrel cage induction motor has the following parameters in Ω/phase referred to the stator: R,-0.220, Xi = 0.430, X,-15.0, R2 0.130 and X2-0.430. Mechanical and core losses amount to 300 W and 200 W respectively for rated voltage. (a) The motor is fed with a 60 Hz, 208 V voltage. It runs with a slip of 4.5 %. Find the speed, shaft torque and power, efficiency and power...
A three-phase 60 Hz induction motor 480 v (rms, line- to line), lo tp, spee is 12 amperes (rms), total stator Copper loss is Copper loss is 150 W, total combine with operation at the specified paramders, a) The number of Poles ! induction motor has specifications as follows R- to line), lo tp, speed is 1765 RPM, line Current stal Stator Copper loss is 140 w, total rotor is 15o W , total combined rotational loss is losw the...
Help ASAP
#3. A 3-phase, 220 V, 4-pole, 60 Hz induction motor has the following parameters referred to (jDraw the equivalent circuit of the motor. Find (0) the motor speed (l) the input current (iii) The input power factor (iv) the motor torque (v) the efficiency of the motor.
Please solve this question. Thank you.
A two-pole, 75kW, 440 V, 50 Hz, Y-connected, three-phase squirrel cage induction motor has the following parameters, in Ω/phase referred to the stator: R1-0.075, XI 0.17, xm-72, R2-0.065 and X-0.17. Its rated slip is 4%. Assume that the mechanical losses are 1 kW and the core losses are 1.1 kW. Compute: a. The rated input current b. The rated power factor. c. The pullout torque d. The induced and load torques at rated conditions....
A three phase, 60 Hz induction motor rated at 440 V and 40 hp drives a load at 1710 rpm. The induction motor has the following impedances referred to the stator in /phase: R,=0.1512, X,=0.7512; R2=1.222,X=0.7522; X=25 12 . The core loss is 450 W and friction and windage loss is 250 W. Calculate the following 1. line current and power factor 2. Real and reactive input power 3. Air-gap power 4. Mechanical power and torque developed 5. shaft horse...
Problem 3: Consider an 6 pole 3-phase AC induction motor being driven at 60 Hz a) b) c) d) When connected to a load, the motor outputs 2 kW of power assuming negligible rotational losses while rotating at a speed of 1070 rpm. What is the slip? (5 points) When connected to a load, the motor outputs 2 kW of power assuming negligible rotational losses while rotating at a speed of 1070 rpm. What is the developed torque? (5 points)...
