Question 4 30 A L 4 аа 40 см b... 8 La bacm 3 20 A...

Question

Question

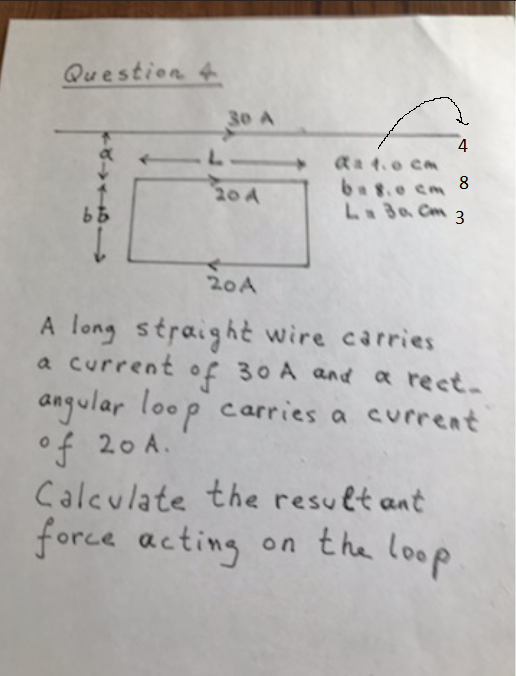

Question 4 30 A L 4 аа 40 см b... 8 La bacm 3 20 A 65 20A A long straight wire carries a current of 30 A and a rect. angular

science physics

Answer 1

Answer #1

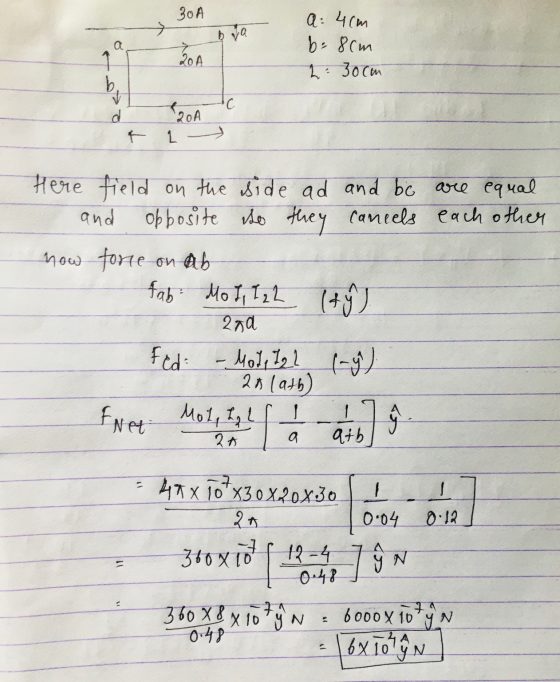

30A b va a a: 4cm b.8cm 2: 30cm 20A co C d 20A Here field on the side ad and be are equal and opposite so they cancels each

Answer 2

Similar Homework Help Questions

The long straight wire carries a current of 30 A and the rectangular loop carries a...

The long straight wire carries a current of 30 A and the rectangular loop carries a current of 20 A. Calculate the resultant force acting on the loop. Assume that a = 1.0 cm, b = 8.0 cm and L = 30 cm.
Question 5 A long, straight wire carries a current of 14 A. Next to the wire...

Question 5 A long, straight wire carries a current of 14 A. Next to the wire is a square loop with sides 1.0 m in length. The loop carries a current of 2.5 A in the direction indicated. a. What is the direction of the net force exerted on the loop? Explain b. Calculate the magnitude of the net force acting on the loop.
4) A long straight wire carries current i = 2.0 A. A triangular loop (w =...

4) A long straight wire carries current i = 2.0 A. A triangular loop (w = 0.050 m and t = 0.100 m) also carries the same current and is located at distance x = 0.025 m from the straight wire as shown. Recall that the magnetic field due to a long straight wire is given by B Ho 21 4r where r is the perpendicular distance from the wire. Note: Ho/472 = 1 x 10-?T.m/A. a) Determine the magnitude...

Need Answer to Part B Item 3 IP A long, straight wire carries a current of...

Need Answer to Part B Item 3 IP A long, straight wire carries a current of 14 A. Next to the wire is a square loop with sides 1.0 m in length, as shown in the figure (Figure 1). The loop carries a current of 2.5 A in the direction indicated the net force is into the page the net force is from the page the net force is away from the wire the net force is toward the wire...
Please answer both and I will UpVote 3. A 3-meter long straight wire carries a current...

Please answer both and I will UpVote 3. A 3-meter long straight wire carries a current of 30 A in a uniform magnetic fields of 0.5 T whose direction is at an angle of 45 degrees from the direction of the current. Find the magnitude of the magnetic force acting on the wire. (5 marks total) 4. Two circular wire loops are located inside the same plane, and they have a common centre. The outer loop carries a current of...
Question 6 [5 marks] A rectangular loop with sides l = 30 cm and w 10 cm carries a current, I, of...

Question 6 [5 marks] A rectangular loop with sides l = 30 cm and w 10 cm carries a current, I, of 2 A and lies centered in the xy-plane as shown below. The loop is in a region where there is a uniform magnetic field. The magnetic field is given by B (2 a3 ay + 4 az) x 102 Wb/m2. Determine the total force acting on the loop and the torque acting on the loop. Question 6 [5...

Help me solve this question asap 9. a) Define a current of magnitude 1 A. b)...

Help me solve this question asap 9. a) Define a current of magnitude 1 A. b) 6 A 10 A FIGURE 4.3 Two long straight parallel copper wires X and Y are placed at a distance r apart in FIGURE 4.3. X carries current of 6 A and Y carries current of 10 A in the opposite direction. (i) Find the location of a point from wire X, in term of r, where the resultant magnetic field will be zero....
3. A long straight verticalement of wire B s straight vertical segment of wire traverses a...

3. A long straight verticalement of wire B s straight vertical segment of wire traverses a magnetic field of magnitud 2 .0 T in the direction shown in the diagram. field is 0.060 m. When the switch is closed, a current of 1- e direction shown in the diagram. The length of the wire that lies in the magica 4.0 A flows through the wire, from m. When the switch is closed a current of Po to point P. Which...
Help me solve this question asap Two long parallel wires, P and Q are fixed on...

Help me solve this question asap Two long parallel wires, P and Q are fixed on a horizontal plane north-south direction. Wire P is 10 cm left of wire Q. Wire P carries 40 A current northwards (a) while wire Q carries 20 A current southwards. Determine the magnitude and direction of i. the resultant magnetic field at midpoint between the wires. the resultant magnetic field at a point on the horizontal plane, 8.0 cm from the wire P and...

1-3 is correct 4.) I’m 80% sure is correct 5.) I don’t know how to do...

1-3 is correct 4.) I’m 80% sure is correct 5.) I don’t know how to do Please show work A rectangular loop of wire with sides H-38 cm and W - 77 cm carries current 12 - 0.282 A. An infinite straight wire, located a distance L - 34 cm from segment ad of the loop as shown, carries current l-0.538 A in the positive y-direction. I2 a W I 1) What is Fad,x, the x-component of the force exerted...
