The figure below shows the schematic of an RC circuit. Given that the supply voltage is...

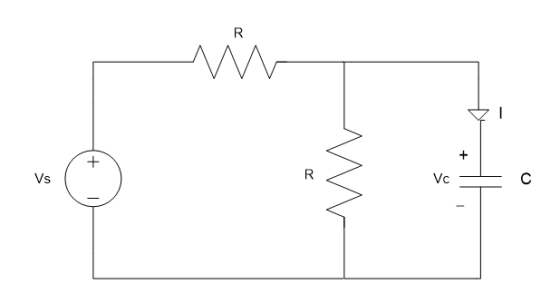

The figure below shows the schematic of an RC circuit.
Given that the supply voltage is Vs and the output is Vc.

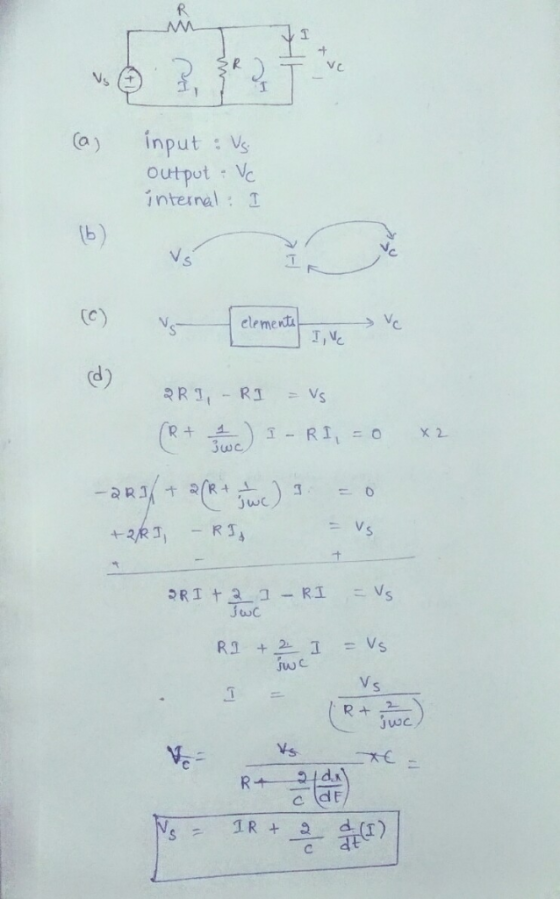

a. Identify the input, output and internal signals.
b. Give the causal diagram.
c. Draw the block diagram.
d. Write down the overall differential equation.
Homework Answers
Add Answer to:
The figure below shows the schematic of an RC circuit.
Given that the supply voltage is...
Draw a block diagram/schematic of the entire accumulator- based processor system with the clock d...
Draw a block diagram/schematic of the entire accumulator- based processor system with the clock divider showing the connections between all four components (the 4-bit register, the 4-bit ALU, the seven-segment display, and the clock divider). You will implement this entire system on the FPGA board in lab task 5. Make this block diagram/ schematic large enough to add these additional details: i. Give each component a unique and meaningful name . İİ.Label each component's input/output ports with the appropriate names...
For the given RC circuit shown below, ys the output, and ut) is the input. Values of the components are marked on schematic i) Derive the system differential equation and transfer function Y(s)/U(s)...
For the given RC circuit shown below, ys the output, and ut) is the input. Values of the components are marked on schematic i) Derive the system differential equation and transfer function Y(s)/U(s) ii) Choose voltage across capacitors as states and derive the state equations and state matrices (A, B, C,and D). iii) Validate the states by deriving the transfer function from state matrices. iv) Choose a different set of states and derive a different state equation and state Matrix...
The differential equation for voltage across a capacitor in a DC input RC circuit is given...
The differential equation for voltage across a capacitor in a DC input RC circuit is given as: ????+??(?)=?? ???? ?(?)=? a) Solve for the complete solution of the differential equation. b) At what time the voltage v(t) is 5 volts? c) At what time the voltage v(t) is 20 volts? Must Show All Work
2π Pulse wave: o-T fb) f-32 20 Consider the series RC circuit with R- 1 kn,C1.5...
2π Pulse wave: o-T fb) f-32 20 Consider the series RC circuit with R- 1 kn,C1.5 mF (RC-1.5 sec). The source voltage vs (t) is the Pulse Wave with A-10V T 10 sec; d-sec Use Differential Equation and/or Laplace Transform methods to analyze the operation of the circuit subject to this input. The output of interest is vc(t) It may be assumed that vc(0)0 Then, use Fourier Series methods to find vc(t) Plot and compare the results obtained using the...
(1) Consider the RC circuit shown in Figure 1. For t<0 the switch is open, and...
(1) Consider the RC circuit shown in Figure 1. For t<0 the switch is open, and the charge stored on the capacitor is 0. At t-0 the switch is closed, and the voltage source begins charging the capacitor. Let R1-R2-220 Ω , C-0.47 μ F , Vs-5 V. (a) Write the differential equation as an expression for the capacitor voltage fort> 0 (i.e. write the differential equation) and calculate the time constant (b) Calculate the steady-state capacitor voltage R2 R1...
Question 4: RC Circuit: a) Charging capacitor: A simple RC circuit is given in Figure 4a....
Question 4: RC Circuit: a) Charging capacitor: A simple RC circuit is given in Figure 4a. The capacitor is empty initially and switch was open for a long time. 4E, (V) EMF is used to charge the capacitor as switch is closed at t=0s. By using Kirchhoff's voltage law and Ohm's law that you learned so far, analyze this circuit and find the unknowns given below. 1)At t=0s. draw the equivalent circuit and find v. (Os), i. (Os), i (Os),...
2 First-Order RC Circuit: Natural Response The switch in the circuit in Figure 2 has been...
2 First-Order RC Circuit: Natural Response The switch in the circuit in Figure 2 has been in position for a long time. At t = 0, the switch moves to position (the switch opens) and stays there. Assuming that V. > O for the constant voltage source, (a) find vc(0-), vc(0+), ic(0-), and ic(0+); (b) find vc(t) when t 20 (if you want, you can write vo(t) by circuit inspection; you don't need to show the differential equation); and (c)...
(20 points) Give a detail design of pressure measurement system by using strain gage as a sensor. The output signal is voltage 1) Draw circuit diagram/and sensing element with strain gauge. 2) Dr...
(20 points) Give a detail design of pressure measurement system by using strain gage as a sensor. The output signal is voltage 1) Draw circuit diagram/and sensing element with strain gauge. 2) Draw a block diagram and name a part on each block. 3) Give the sensitivity of each block 4) Give an equation to show the relationship of input pressure and output 2. voltage
(20 points) Give a detail design of pressure measurement system by using strain gage as...
Given is the circuit diagram of a simple RC circuit. In the given circuit the value...
Given is the circuit diagram of a simple RC circuit. In the
given circuit the value of capacitor ‘C’ is 100uF,
what should be the value of resistor ‘R’ so that the time constant
of this circuit is 15 seconds. Implement this
circuit on Proteus; you have to find voltage across capacitor ‘Vc’
(Both theoretically and through simulations) at different intervals
of time after the switch has been closed as mentioned in the table
given below. Vs=10V
-Solve with...
Consider the circuit below: Write the output equation symbolically Solve for Rc Solve for the output...
Consider the circuit below:
Write the output equation symbolically
Solve for Rc
Solve for the output voltage given the resistors and input
voltages
Rc R1 1.2kn R2 1.8kn R3 LM741AH883 RL .25V Rf 5v 4.7k
Draw a block diagram/schematic of the entire accumulator- based processor system with the clock divider showing the connections between all four components (the 4-bit register, the 4-bit ALU, the seven-segment display, and the clock divider). You will implement this entire system on the FPGA board in lab task 5. Make this block diagram/ schematic large enough to add these additional details: i. Give each component a unique and meaningful name . İİ.Label each component's input/output ports with the appropriate names...
For the given RC circuit shown below, ys the output, and ut) is the input. Values of the components are marked on schematic i) Derive the system differential equation and transfer function Y(s)/U(s) ii) Choose voltage across capacitors as states and derive the state equations and state matrices (A, B, C,and D). iii) Validate the states by deriving the transfer function from state matrices. iv) Choose a different set of states and derive a different state equation and state Matrix...
2π Pulse wave: o-T fb) f-32 20 Consider the series RC circuit with R- 1 kn,C1.5 mF (RC-1.5 sec). The source voltage vs (t) is the Pulse Wave with A-10V T 10 sec; d-sec Use Differential Equation and/or Laplace Transform methods to analyze the operation of the circuit subject to this input. The output of interest is vc(t) It may be assumed that vc(0)0 Then, use Fourier Series methods to find vc(t) Plot and compare the results obtained using the...
(1) Consider the RC circuit shown in Figure 1. For t<0 the switch is open, and the charge stored on the capacitor is 0. At t-0 the switch is closed, and the voltage source begins charging the capacitor. Let R1-R2-220 Ω , C-0.47 μ F , Vs-5 V. (a) Write the differential equation as an expression for the capacitor voltage fort> 0 (i.e. write the differential equation) and calculate the time constant (b) Calculate the steady-state capacitor voltage R2 R1...
Question 4: RC Circuit: a) Charging capacitor: A simple RC circuit is given in Figure 4a. The capacitor is empty initially and switch was open for a long time. 4E, (V) EMF is used to charge the capacitor as switch is closed at t=0s. By using Kirchhoff's voltage law and Ohm's law that you learned so far, analyze this circuit and find the unknowns given below. 1)At t=0s. draw the equivalent circuit and find v. (Os), i. (Os), i (Os),...
2 First-Order RC Circuit: Natural Response The switch in the circuit in Figure 2 has been in position for a long time. At t = 0, the switch moves to position (the switch opens) and stays there. Assuming that V. > O for the constant voltage source, (a) find vc(0-), vc(0+), ic(0-), and ic(0+); (b) find vc(t) when t 20 (if you want, you can write vo(t) by circuit inspection; you don't need to show the differential equation); and (c)...
(20 points) Give a detail design of pressure measurement system by using strain gage as a sensor. The output signal is voltage 1) Draw circuit diagram/and sensing element with strain gauge. 2) Draw a block diagram and name a part on each block. 3) Give the sensitivity of each block 4) Give an equation to show the relationship of input pressure and output 2. voltage
(20 points) Give a detail design of pressure measurement system by using strain gage as...
Given is the circuit diagram of a simple RC circuit. In the
given circuit the value of capacitor ‘C’ is 100uF,
what should be the value of resistor ‘R’ so that the time constant
of this circuit is 15 seconds. Implement this
circuit on Proteus; you have to find voltage across capacitor ‘Vc’
(Both theoretically and through simulations) at different intervals
of time after the switch has been closed as mentioned in the table
given below. Vs=10V
-Solve with...
Consider the circuit below:
Write the output equation symbolically
Solve for Rc
Solve for the output voltage given the resistors and input
voltages
Rc R1 1.2kn R2 1.8kn R3 LM741AH883 RL .25V Rf 5v 4.7k
