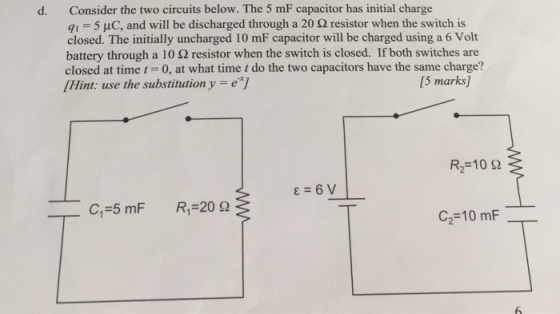

![Consider the two circuits below. The 5 mF capacitor has initial charge 91-5 μC, and will be discharged through a 20 Ω resistor when the switch is closed. The initially uncharged 10 mF capacitor will be charged using a 6 Volt battery through a 10 Ω resistor when the switch is closed. If both switches are closed at time-0, at what time t do the two capacitors have the same charge? Hint: use the substitution y -eT d. [5 marks] R2-10 S2 ε=6V C1=5 mF R1-20 Ω C,-10 mF](http://img.homeworklib.com/questions/5d931420-1cab-11ec-a22d-a192dd67d69d.png?x-oss-process=image/resize,w_560)

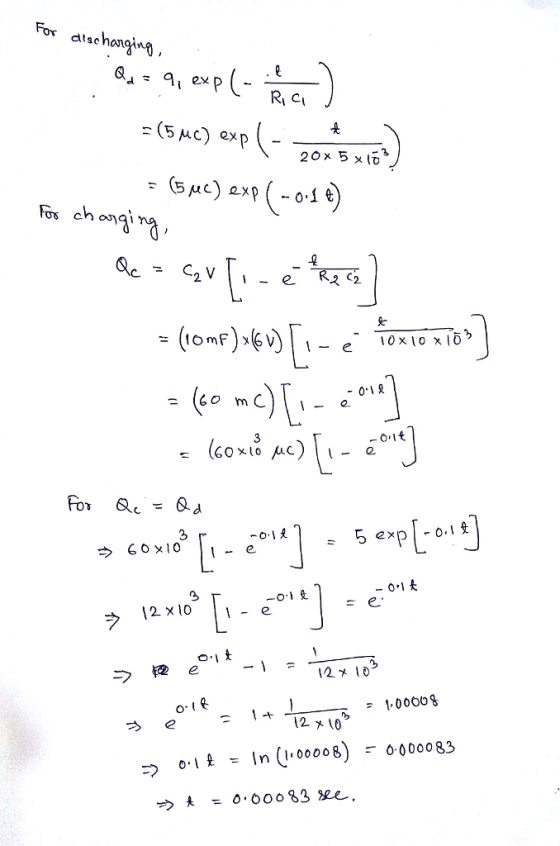

Homework Answers
Add Answer to:
Consider the two circuits below. The 5 mF capacitor has initial charge q_1 = 5 mu...
An RC circuit consists of a 24 V battery, a 15 mF capacitor, and a 35...
An RC circuit consists of a 24 V battery, a 15 mF capacitor, and a 35 M-ohm resistor, all in series with a switch. The switch is initially open and the capacitor is initially uncharged. What is the charge on the capacitor when the current is 2.0 e-7?
You charge an initially uncharged 89.9-mF capacitor through a 35.7-? resistor by means of a 9.00-V...
You charge an initially uncharged 89.9-mF capacitor through a 35.7-? resistor by means of a 9.00-V battery having negligible internal resistance. Find the time constant of the circuit. What is the charge of the capacitor 1.09 time constants after the circuit is closed?
You charge an initially uncharged 81.1-mF capacitor through a 39.1-12 resistor by means of a 9.00-V...
You charge an initially uncharged 81.1-mF capacitor through a 39.1-12 resistor by means of a 9.00-V battery having negligible internal resistance. Find the time constant t of the circuit. t= What is the charge Q on the capacitor 1.17 time constants after the circuit is closed? What is the charge Qo after a long amount of time has passed?
Answer: 96. Consider the circuit below. The capacitor has a capacitance of 10 mF. The switch...
Answer:
96. Consider the circuit below. The capacitor has a capacitance of 10 mF. The switch is closed and after a long time the capacitor is fully charged. (a) What is the current through each resistor a long time after the switch is closed? (b) What is the voltage across each resistor a long time after the switch is closed? (c) What is the voltage across the capacitor a long time after the switch is closed? (d) What is the...
3. (10 Points) A battery (E-30.0 V) is used in a circuit with two capacitors (C-2.00...
3. (10 Points) A battery (E-30.0 V) is used in a circuit with two capacitors (C-2.00 mF), and two switches. Initially, the switches are open. Switch S1 is closed for 3.00 s then opened. Switch S2 is then closed at t-0.00 s. What is the current flowing in the resistor on the right at two resistors (R-2.50 k2), capacitors are uncharged and t-2.00s? St 2
4) Midterm question Problem 2 (30 points) C=30 uF The air capacitors with C=Cq=3.0 MF, C=2.04F...
4) Midterm question Problem 2 (30 points) C=30 uF The air capacitors with C=Cq=3.0 MF, C=2.04F and C3= 1.0F are connected to a Vo battery as shown. If the charge on C2 is Q2=20.0 C, | ,2015 Foton C1.0 F (a) (15 pts. Find the equivalent capacitance of the circuit. (b) (15 pts.) Find V. 1) A charge Q is placed on a capacitor of capacitance C=C. The capacitor is then, connected to a resistor and another capacitor of capacitance...
1. Shown above are two different circuits. Each circuit is made out a battery, a capacitor,...
1. Shown above are two different circuits. Each circuit is made
out a battery, a capacitor, a switch, and two resistors. All the
components (batteries, switches, capacitors, and resistors) are
identical in the above circuits. For both circuits, when the switch
is closed, the capacitors will get charged. Which of the following
is correct about the peak current in the circuit?
- Circuit B has 4 times larger peak current than circuit A.
- Circuit B has 2 times larger...
You have a 3000 ohm resistor, a 10 mF capacitor, and a 100V battery. Assume the...
You have a 3000 ohm resistor, a 10 mF capacitor, and a 100V battery. Assume the battery is ideal and that the capacitor is initially uncharged. You connect the battery, resistor, and capacitor in series and complete the circuit, forming a loop. A) How much time passes before the capacitor reaches 2/3 of its maximum charge? B) What is the magnitude of the current when the capacitor is at 2/3 maximum charge? C) How much charge is on the capacitor...
A circuit consists of a 6-pif capacitor, a 12 m-F capacitor, a 12-V battery, and a...
A circuit consists of a 6-pif capacitor, a 12 m-F capacitor, a 12-V battery, and a switch, connected as shown in Figure 24-14. Initially, the switch is open and the capacitors are uncharged. The switch is then closed and the capacitors charge. When the capacitors are fully charged and open-circuit terminal volt- age is restored, (a) what is the potential of each conductor in the circuit? (Choose the zero-potential reference point on the negative battery terminal.) If the potential of...
(a) A capacitor has a value of 5 μF. Explain in terms of electric charge what this means. (b) The 5 uF capacitor shown in the circuit below is initially uncharged. The circuit is connected to a compu...
(a) A capacitor has a value of 5 μF. Explain in terms of electric charge what this means. (b) The 5 uF capacitor shown in the circuit below is initially uncharged. The circuit is connected to a computer and switch S is closed. The monitor of the computer displays a graph of current against time as the capacitor charges monitoT charging current/uA 30 20 10 0 . 2,3 4 time s computer The battery has negligible internal resistance. (i) Calculate...
You charge an initially uncharged 81.1-mF capacitor through a 39.1-12 resistor by means of a 9.00-V battery having negligible internal resistance. Find the time constant t of the circuit. t= What is the charge Q on the capacitor 1.17 time constants after the circuit is closed? What is the charge Qo after a long amount of time has passed?
Answer:
96. Consider the circuit below. The capacitor has a capacitance of 10 mF. The switch is closed and after a long time the capacitor is fully charged. (a) What is the current through each resistor a long time after the switch is closed? (b) What is the voltage across each resistor a long time after the switch is closed? (c) What is the voltage across the capacitor a long time after the switch is closed? (d) What is the...
3. (10 Points) A battery (E-30.0 V) is used in a circuit with two capacitors (C-2.00 mF), and two switches. Initially, the switches are open. Switch S1 is closed for 3.00 s then opened. Switch S2 is then closed at t-0.00 s. What is the current flowing in the resistor on the right at two resistors (R-2.50 k2), capacitors are uncharged and t-2.00s? St 2
4) Midterm question Problem 2 (30 points) C=30 uF The air capacitors with C=Cq=3.0 MF, C=2.04F and C3= 1.0F are connected to a Vo battery as shown. If the charge on C2 is Q2=20.0 C, | ,2015 Foton C1.0 F (a) (15 pts. Find the equivalent capacitance of the circuit. (b) (15 pts.) Find V. 1) A charge Q is placed on a capacitor of capacitance C=C. The capacitor is then, connected to a resistor and another capacitor of capacitance...
1. Shown above are two different circuits. Each circuit is made
out a battery, a capacitor, a switch, and two resistors. All the
components (batteries, switches, capacitors, and resistors) are
identical in the above circuits. For both circuits, when the switch
is closed, the capacitors will get charged. Which of the following
is correct about the peak current in the circuit?
- Circuit B has 4 times larger peak current than circuit A.
- Circuit B has 2 times larger...
A circuit consists of a 6-pif capacitor, a 12 m-F capacitor, a 12-V battery, and a switch, connected as shown in Figure 24-14. Initially, the switch is open and the capacitors are uncharged. The switch is then closed and the capacitors charge. When the capacitors are fully charged and open-circuit terminal volt- age is restored, (a) what is the potential of each conductor in the circuit? (Choose the zero-potential reference point on the negative battery terminal.) If the potential of...
(a) A capacitor has a value of 5 μF. Explain in terms of electric charge what this means. (b) The 5 uF capacitor shown in the circuit below is initially uncharged. The circuit is connected to a computer and switch S is closed. The monitor of the computer displays a graph of current against time as the capacitor charges monitoT charging current/uA 30 20 10 0 . 2,3 4 time s computer The battery has negligible internal resistance. (i) Calculate...
