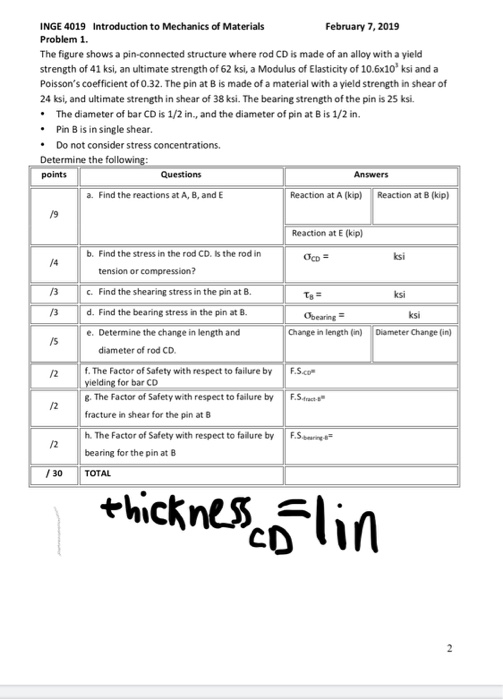

INGE 4019 Introduction to Mechanics of Materials Problem 1. The figure shows a pin-connected structure where rod CD is made o

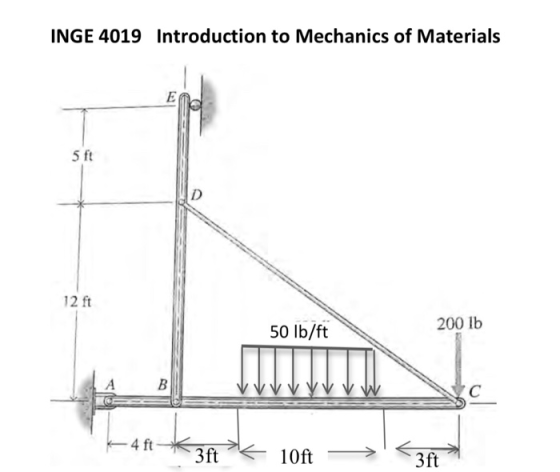

INGE 4019 Introduction to Mechanics of Materials 5 ft 12 ft 50 lb/ft 200 lb 3ft
0 0
Add a comment Improve this question Transcribed image text
Answer #1

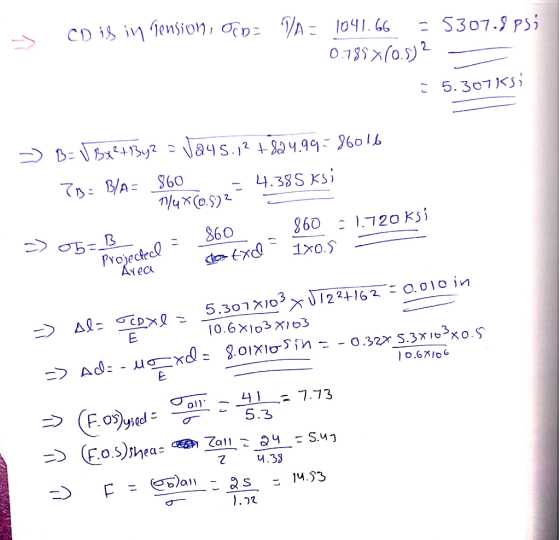

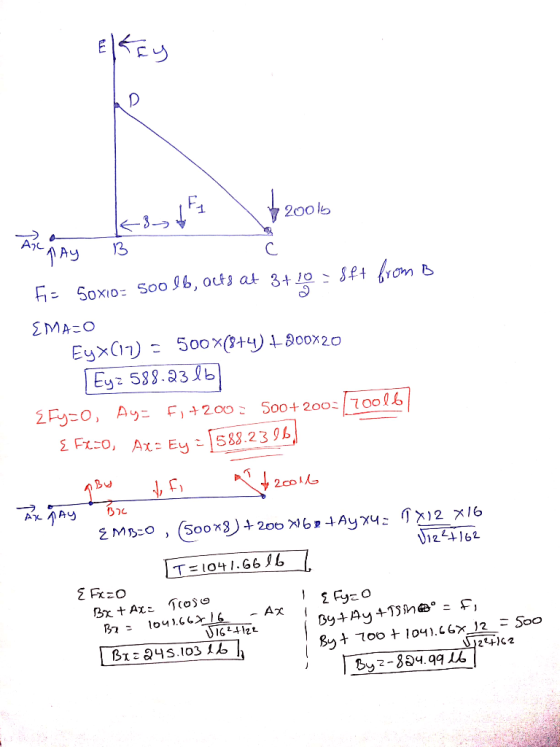

F. 200 lb 13 Cy DJL 124162BA 860- 4.38S Ksi Pyoechec 10.6x,03 x,נס 0.6710

Add a comment
Know the answer?
Add Answer to:
INGE 4019 Introduction to Mechanics of Materials Problem 1. The figure shows a pin-connected structure where...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • In the figure, the rigid member ABDE is supported at A by a single shear pin...

    In the figure, the rigid member ABDE is supported at A by a single shear pin connection and at B by a tie rod (1). The tie rod is attached at B and C with double shear pin connections. The pins at A, B, and C each have an ultimate shear strength of 84 ksi, and tie rod (1) has a yield strength of 63 ksi. A concentrated load of P = 20 kips is applied perpendicular to DE, as...

  • A concentrated load of P = 62 kips is applied to beam AB, as shown in...

    A concentrated load of P = 62 kips is applied to beam AB, as shown in the figure. Rod (1) has a diameter of 1.7 in., and its yield strength is 31 ksi. Pin A is supported in a double shear connection, and the ultimate shear strength of pin A is 77 ksi. Assume a=4.6 ft, b=7.1 ft, C=8.3 ft, d=11 in. (a) Determine the normal stress in rod (1). (b) Determine the factor of safety with respect to the...

  • Chapter 4, Reserve Problem 026 In the figure, the rigid member ABDE is supported at A...

    Chapter 4, Reserve Problem 026 In the figure, the rigid member ABDE is supported at A by a single shear pin connection and at B by a tie rod (1). The tie rod is attached at B and C with double shear pin connections. The pins at A, B, and C each have an ultimate shear strength of 77 ksi, and tie rod (1) has a yield strength of 61 ksi. A concentrated load of P = 30 kips is...

  • 2 ft 5 ft 6 ft 23 points) The beam AB is subjected to the loadings...

    2 ft 5 ft 6 ft 23 points) The beam AB is subjected to the loadings shown?. This beam is supported by a double-sheared pin at A and a rod CB. If the failure normal stress is 60 ksi and the failure shear stress is 50 ksi, determine the minimum required diameter of the rod BC and pin at A, to the nearest 1/8”, if the factor of safety is 3. 630 lb.ft 225 lb/ft A E B 30° 200...

  • Beam AB is supported as shown in the figure. Tie rod (1) is attached at B...

    Beam AB is supported as shown in the figure. Tie rod (1) is attached at B and C with double shear pin connections, while the pin at A is attached with a single shear connection. The pins at A, B, and C each have an ultimate shear strength of 52 ksi, and tie rod (1) has a yield strength of 30 ksi. A concentrated load of P 26 kips the beam as shown. A factor safety of 2.5 required for...

  • The two-member structure is connected at by, a pin, which is fixed to BDE and passes...

    The two-member structure is connected at by, a pin, which is fixed to BDE and passes through the smooth 15107 Pin member AC. The critical components are the pin A and E. Pin A is a single-shear pin E is a double shear joint. The ultimate shear stress of the material is 200 MPa. Assume, safety factor on snear stress is 3. The gross-sectional area of the bars AC and BE are 2000 mm², yield strength of the bar Elastic...

  • 3. Determine the required diameter of the pin at the double shear joint at B if...

    3. Determine the required diameter of the pin at the double shear joint at B if the allowable shear stress for the pin material is 7 ksi and a factor of safety of 2 is required. C. 3 kip 8 ft 6 ft 6 ft

  • INGE 4019 Introduction to Mechanics of Materials March 6, 2019 A Problem 4, (20 points) An...

    INGE 4019 Introduction to Mechanics of Materials March 6, 2019 A Problem 4, (20 points) An axial centric force of magnitude P 450 kN is applied to the composite block shown by means of a rigid end plate. Knowing that h -10 mm, determine: 1) the normal stress in (a) the brass core, (b) the aluminum plates. (10 pts.) 2) (a) the value of h if the portion of the load carried by the aluminum plates is half the portion...

  • Rigid bar is supported by a pin-connected axial bar (1) and a pin connection at C...

    Rigid bar is supported by a pin-connected axial bar (1) and a pin connection at C as shown in Figure Q1. Member (1) is a 20 mm wide by 9 mm thick rectangular bar made of Steel Alloys (A992). The total strain in bar (1) is measured as 925 ue (925x10°). The pin at C has an ultimate shear strength of ty = 345MPa. Determine: (a) The axial force in member (1). [9 marks] (b) The factor of safety in...

  • Member BCD is supported in the position shown using the 1/2 × 1/4 in2 rod AC...

    Member BCD is supported in the position shown using the 1/2 × 1/4 in2 rod AC and 1/4 in diameter pins at B, C&D. The ultimate bearing stress for the pin at B is 5ksi, the ultimate shear stress for the pin at B is 7 ksi and the ultimate normal stress for the link AC is 12ksi. Assuming that the pins at A and C are strong and a factor of safety of 3 is desired, determine (a) The...
