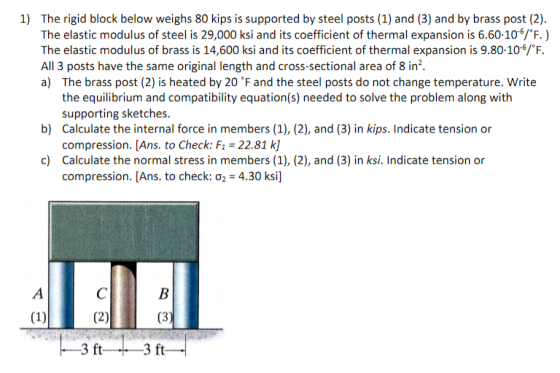

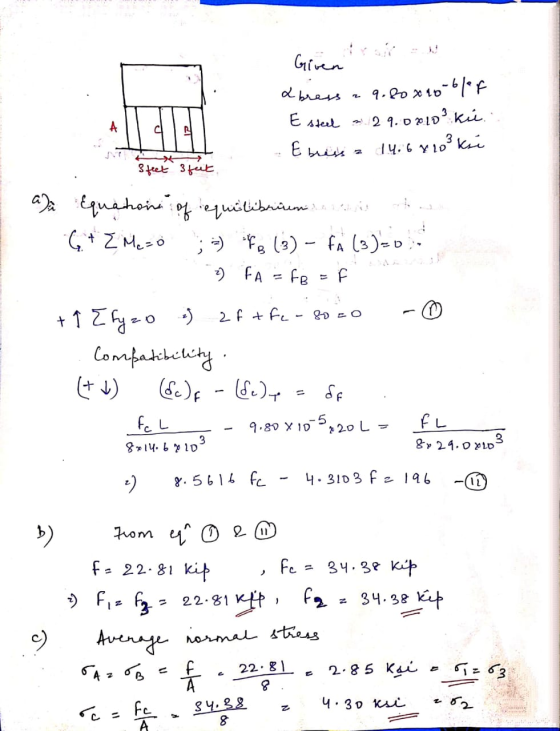

1) The rigid block below weighs 80 kips is supported by steel posts (1) and (3)...
Member (1) is a solid 50 mm diameter cylinder made from magnesium. The modulus of elasticity...
Member (1) is a solid 50 mm diameter cylinder made from magnesium. The modulus of elasticity is 44.7 GPa and the thermal coefficient of expansion is 26 x 106/°C. The cylinder is placed in a clamp when the temperature is 20℃ Two stainless steel carriage bolts (2) hold the cylinder snug with negligible force against the rigid jaws of the clamp. Each bolt has a diameter of 10 mm, modulus of elasticity of 193 GPa, and a coefficient of thermal...
A 10-m steel rod is snugly supported by two rigid supports at the end. The coefficient...
A 10-m steel rod is snugly supported by two rigid supports at
the end. The coefficient of thermal expansion and contraction of
the rod is 6X10^-6 per F and the elastic modulus is 210 GPa. If the
temperature of the body is increased by 50 F, the thermal stress
developed at the supports is most nearly:
SHOW ALL WORK
A 10-m steel rod is snugly supported by two rigid supports at the end. The coefficient of thermal expansion and contraction...
3 3. (25 pts.) A system of bars consists of a steel bar (AB) and an...
3 3. (25 pts.) A system of bars consists of a steel bar (AB) and an aluminum bar (BC). Bar AB has a cross-section of 2 inches by 0.75 inches and has a modulus of elasticity of 29000 ksi and a coefficient of thermal expansion of 6.5x10-6 /F. Bar BC has a cross-section of 3 inches by 0.75 inches and has a modulus of elasticity of 10600 ksi and a coefficient of thermal expansion of 12.8x106/F. A gap of 0.03...
Rigid bar BCD is supported by a pin at C and aluminum rod (1)
Rigid bar BCD is supported by a pin at C and aluminum rod (1). A concentrated load P is applied to the lower end of the aluminum rod (2) which is attached to the rigid bar at D. The cross sectional area of each rod is A»0.20 in2 and the elastic modulus of the aluminum material is E=9200 ksi. The coefficient of thermal expansion 12.5 x 10-6/°F. After the load P is applied and the structure has been CoOLED by...
3. A steel bar having a diameter of 1 inch is being loaded as shown below....
3. A steel bar having a diameter of 1 inch is being loaded as shown below. Assume the width and diameters of the collars are negligible. The steel's elastic modulus E = 29,000 ksi. 3000 lb 9000 lb --8000 lb - 4000 lb - 36 in. — 36 in 36 in. (a) (4 points) the maximum axial stress within the bar (also indicate it is within which section and if it's tension or compression) (6) (3 points) determine the total...
Questions 5-8 A steel frame shown below is subjected to combined uniformly distributed gravity load (w...
Questions 5-8
A steel frame shown below is subjected to combined uniformly distributed gravity load (w 2 kips/f) and a horizontal earthquake load of H-10 kips Both the beams and the columns are made of W12x120 section having a yield strength of F 45 ksi. The Young's modulus of steel s E-29,000 ksi. The distributed load w is used to simulate the self-weight of the beam, the load transferred from roof slab, as well addition superimposed dead loads. The self-weigh...
A rigid beam BCD is supported on a roller support at C (4m from B) and has two bars AB and DE attached at each end
A rigid beam BCD is supported on a roller support at C (4m from B) and has two bars AB and DE attached at each end. The bars can carry either tension or compressive forces. The rigid beam carries a UDL of I kN/m across BC and a point load of P at D as shown in the figure above. The length of the two bars is 3000 mm. The elastic modulus of both bars is 200 GPa and the...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the ver...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
Grid 4 Grid 3 Po 15 in Grid 1 Grid 2 10 in Figure 1: Problem...
Grid 4 Grid 3 Po 15 in Grid 1 Grid 2 10 in Figure 1: Problem 1 Schematic Problem 1 The truss (all joints are pinned) structure in figure 1 is made of members with cross sectional area A- 1 in2, with a linear elastic, homogeneous, isotropic material with an elastic modulus, E, 10E6 psi and a coefficient of thermal expansion. α-6E-6 op-1. The structure starts out at a uniform temperature of 65°F and is raised to a final temperature...
Member (1) is a solid 50 mm diameter cylinder made from magnesium. The modulus of elasticity is 44.7 GPa and the thermal coefficient of expansion is 26 x 106/°C. The cylinder is placed in a clamp when the temperature is 20℃ Two stainless steel carriage bolts (2) hold the cylinder snug with negligible force against the rigid jaws of the clamp. Each bolt has a diameter of 10 mm, modulus of elasticity of 193 GPa, and a coefficient of thermal...
A 10-m steel rod is snugly supported by two rigid supports at
the end. The coefficient of thermal expansion and contraction of
the rod is 6X10^-6 per F and the elastic modulus is 210 GPa. If the
temperature of the body is increased by 50 F, the thermal stress
developed at the supports is most nearly:
SHOW ALL WORK
A 10-m steel rod is snugly supported by two rigid supports at the end. The coefficient of thermal expansion and contraction...
3 3. (25 pts.) A system of bars consists of a steel bar (AB) and an aluminum bar (BC). Bar AB has a cross-section of 2 inches by 0.75 inches and has a modulus of elasticity of 29000 ksi and a coefficient of thermal expansion of 6.5x10-6 /F. Bar BC has a cross-section of 3 inches by 0.75 inches and has a modulus of elasticity of 10600 ksi and a coefficient of thermal expansion of 12.8x106/F. A gap of 0.03...
3. A steel bar having a diameter of 1 inch is being loaded as shown below. Assume the width and diameters of the collars are negligible. The steel's elastic modulus E = 29,000 ksi. 3000 lb 9000 lb --8000 lb - 4000 lb - 36 in. — 36 in 36 in. (a) (4 points) the maximum axial stress within the bar (also indicate it is within which section and if it's tension or compression) (6) (3 points) determine the total...
Questions 5-8
A steel frame shown below is subjected to combined uniformly distributed gravity load (w 2 kips/f) and a horizontal earthquake load of H-10 kips Both the beams and the columns are made of W12x120 section having a yield strength of F 45 ksi. The Young's modulus of steel s E-29,000 ksi. The distributed load w is used to simulate the self-weight of the beam, the load transferred from roof slab, as well addition superimposed dead loads. The self-weigh...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
Grid 4 Grid 3 Po 15 in Grid 1 Grid 2 10 in Figure 1: Problem 1 Schematic Problem 1 The truss (all joints are pinned) structure in figure 1 is made of members with cross sectional area A- 1 in2, with a linear elastic, homogeneous, isotropic material with an elastic modulus, E, 10E6 psi and a coefficient of thermal expansion. α-6E-6 op-1. The structure starts out at a uniform temperature of 65°F and is raised to a final temperature...
