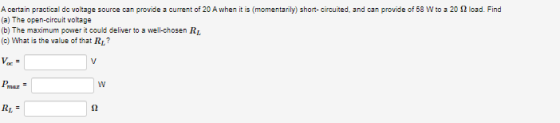

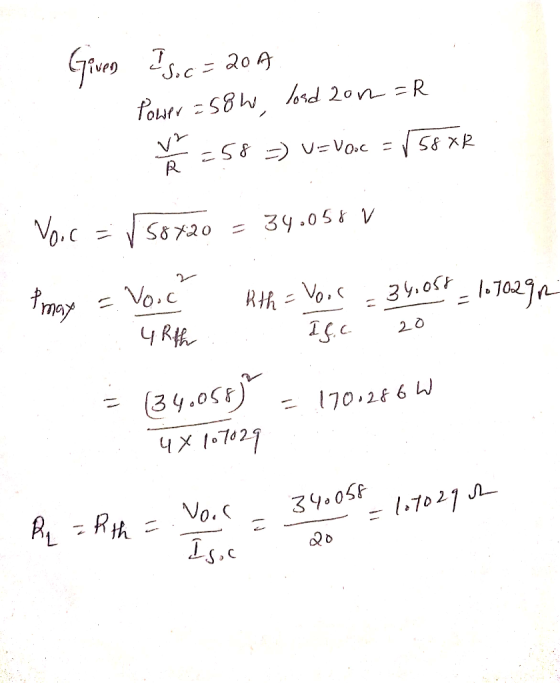

load. Find A certain practical de voltage source can provide a current of 20 A when...
A practical voltage source is represented by an ideal voltage source of 30 V along with a series internal source resistance of 1.2 Ω. Compute the smallest load resistance that can be connected to the practical source such that the load voltage would not drop more than 2% with respect to the source open-circuit voltage.
a) find the no-load value of v0 in the circuit shown
b) find v0 when RL is 150 k(ohms)
c) how much power is dissipated in the 25 k(ohms) resistor if the
load terminals are accidentally short-circuited?
d) what is the maximum power dissipated in thr 75 k(ohms) resistor
when RL is 150 k(ohms)?
a) Find the no-load value of vo in the circuit shown. b) Find vo when Rt is 150 kQ. c) How much power is dissipated in...
Maximum Power Transfer
Learning Goal:
To find the load resistance and load power for the maximum power
transferred to a load.
A resistive network containing independent and dependent sources
can be modeled with a Thévenin equivalent circuit, as shown below.
Maximum power transfer occurs when the load resistance
RLequals the Thévenin resistance RTh
Part A
Find the Thévenin equivalent circuit with respect to the
terminals a,b for the circuit above. What is the
Thévenin voltage VTh?
Express your answer in...
The following data was obtained when open circuit and short circuit tests were performed on a single phase, 50 KVA, 2,400:240 V, 60 Hz distribution transformer: With high voltage winding open circuited: Voc = 240 V, Ioc = 4.85 A, Poc = 173 W With low voltage winding short circuited: Vsc = 52 V, Isc = 20.8 A, Psc = 650 W a) Determine the equivalent circuit of the transformer referred to its high voltage side and to its low...
3. If the voltage and current (both are rms values) supplied to a circuit or load by a source are Varm) = 460?0° V, Is(m)-1414L-45° A. Determine the a) the power supplied by the source which is dissipated as heat or energy in the circuit, b) the power stored in the reactive components and c) the power factor angle and power factor 4. An ideal transformer is rated to deliver 460 KVA at 380 V to a customer T Customer's...
In the circuit below, find the maximum power that this circuit can deliver to a load if the load can take any complex impedance. H 1022 -j812 20 4 200 V Voc Ol. 5w O II. 10 W O III. 20 W IV.2.5 W
