Homework Answers

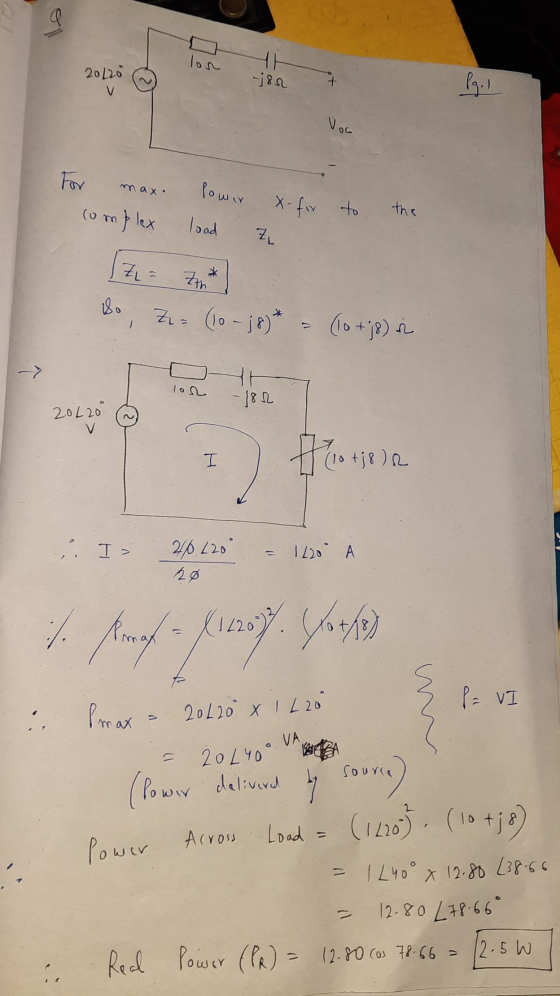

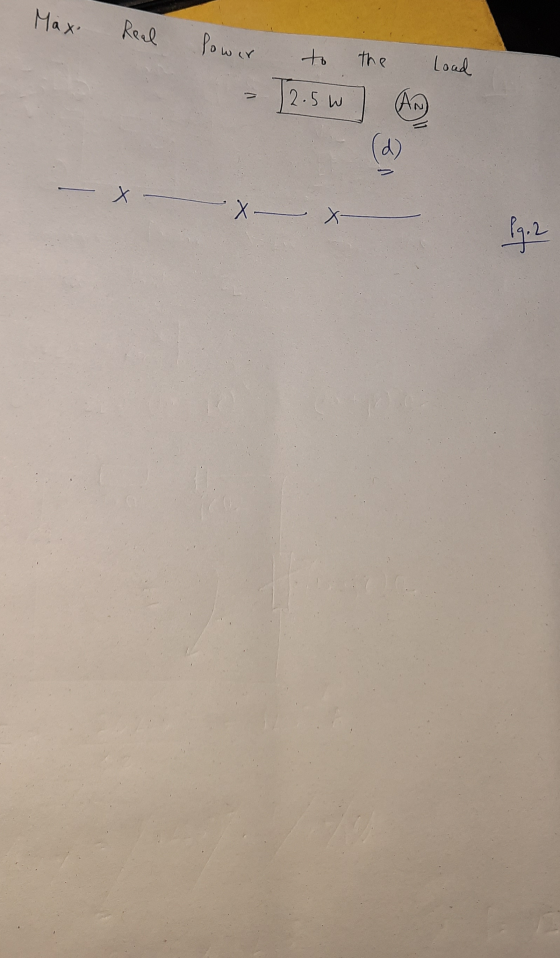

Option (d) is correct as the options are mentioned in W.
Thank you!!!
Add Answer to:

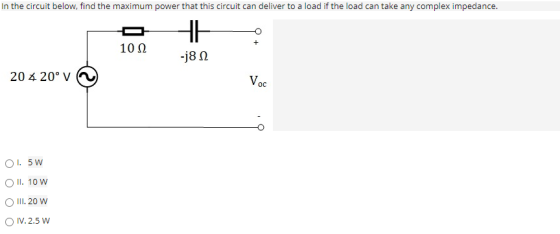

In the circuit below, find the maximum power that this circuit can deliver to a load...
Maximum Power Transfer Learning Goal: To find the load resistance and load power for the maximum...
Maximum Power Transfer
Learning Goal:
To find the load resistance and load power for the maximum power
transferred to a load.
A resistive network containing independent and dependent sources
can be modeled with a Thévenin equivalent circuit, as shown below.
Maximum power transfer occurs when the load resistance
RLequals the Thévenin resistance RTh
Part A
Find the Thévenin equivalent circuit with respect to the
terminals a,b for the circuit above. What is the
Thévenin voltage VTh?
Express your answer in...
It is desired that the circuit in Fig. 5 deliver the maximum possible average power to...
It is desired that the circuit in Fig. 5 deliver the maximum possible average power to the load. The mystery component?) that will make this happen is: (choose below). Note you need not calculate the power. Show your reasoning. 2 points a 1 -H inductor an open-circuit a short-circuit a 1 -F capacitor Source Load W. 3 0 7: 1 F Fig. 5
a. For the circuit given in Figure 6 i. Find the load resistance RL that will...
a. For the circuit given in Figure 6
i. Find the load resistance RL that will receive maximum power
and determine the maximum power.
ii. Determine the power dissipated on the load when RL = 2 Ω and
RL = 10 Ω.
Figure 6
b. For the circuit shown in Figure 4, determine:
iii. The power delivered to the load.
iv. The impedance required in a matching network that will
receive maximum power.
Figure 4
1. R 1012 R2 32012...
Find the load impedance 2L for the network shown in Figure 2 for delivering maximum power...
Find the load impedance 2L for the network shown in Figure 2 for delivering maximum power to the load. Also calculate the maximum power supplied to the load. What is the percentage of power loss when supplying maximum power to the load. REAL M 000 4.12 312 E 230 V 20 X 612 ZL Figure 2: Circuit for Question 2
A radio transmitter is connected to an antenna having impedance 8 + j40 Ω with a 50 coaxial cable. If the transmitter can deliver 30 W to the load, how much power is delivered to the antenna? a....
A radio transmitter is connected to an antenna having impedance 8 + j40 Ω with a 50 coaxial cable. If the transmitter can deliver 30 W to the load, how much power is delivered to the antenna? a. (10 Marks) b. Alossless 50 ohms transmission line is connected to unknown load impedance. Voltage measurements along the line reveal that the maximum and minimum voltage values are (1)volts and (V2 - 1)volts respectively. The distance at which maximum voltage is observed...
Q1: In the circuit shown below use Thevenin's method to find Voc and the maximum power...
Q1: In the circuit shown below use Thevenin's method to find Voc and the maximum power delivered to the load RL 4R 32
Q1: In the circuit shown below use Thevenin's method to find Voc and the maximum power...
Q1: In the circuit shown below use Thevenin's method to find Voc and the maximum power delivered to the load RL 23 Τον Θ
(a) Given a circuit in Figure Q4(a): (1) State the condition for maximum average power transfer...
(a) Given a circuit in Figure Q4(a): (1) State the condition for maximum average power transfer to the load impedance. Z (2 marks) (1) Determine the load impedance, Z (4 marks) (in) Find the maximum average power (5 marks) Lt mm JI R RE 492 120° A 20 C. 70.502 W ZL 1 Figure Q4(a) An air conditioner operates at 240V... at a frequency of 60 Hz. It absorbs an average power of 9 kW at a lagging power factor,...
load. Find A certain practical de voltage source can provide a current of 20 A when...
load. Find A certain practical de voltage source can provide a current of 20 A when it is (momentarily) short-circuited, and can provide of 58 W to a 20 (a) The open-circuit voltage (b) The maximum power it could deliver to a well-chosen R (c) What is the value of that RL? V = Pras- RL =
ame Su chool Number 4: : The source voltage of the circuit below is V()-140cos(30). The component values are RI-20, XL-30. Xc-20 a) Determine the load impedance Zab that will absorb maximum power if...
ame Su chool Number 4: : The source voltage of the circuit below is V()-140cos(30). The component values are RI-20, XL-30. Xc-20 a) Determine the load impedance Zab that will absorb maximum power if it is connected to terminals a-b of the circuit below. b) Determine the maximum power absorbed by this load. Xc XL. M-0.8H R1 2-2 0.4H Vit)
ame Su chool Number 4: : The source voltage of the circuit below is V()-140cos(30). The component values are RI-20,...
Maximum Power Transfer
Learning Goal:
To find the load resistance and load power for the maximum power
transferred to a load.
A resistive network containing independent and dependent sources
can be modeled with a Thévenin equivalent circuit, as shown below.
Maximum power transfer occurs when the load resistance
RLequals the Thévenin resistance RTh
Part A
Find the Thévenin equivalent circuit with respect to the
terminals a,b for the circuit above. What is the
Thévenin voltage VTh?
Express your answer in...
It is desired that the circuit in Fig. 5 deliver the maximum possible average power to the load. The mystery component?) that will make this happen is: (choose below). Note you need not calculate the power. Show your reasoning. 2 points a 1 -H inductor an open-circuit a short-circuit a 1 -F capacitor Source Load W. 3 0 7: 1 F Fig. 5
a. For the circuit given in Figure 6
i. Find the load resistance RL that will receive maximum power
and determine the maximum power.
ii. Determine the power dissipated on the load when RL = 2 Ω and
RL = 10 Ω.
Figure 6
b. For the circuit shown in Figure 4, determine:
iii. The power delivered to the load.
iv. The impedance required in a matching network that will
receive maximum power.
Figure 4
1. R 1012 R2 32012...
Find the load impedance 2L for the network shown in Figure 2 for delivering maximum power to the load. Also calculate the maximum power supplied to the load. What is the percentage of power loss when supplying maximum power to the load. REAL M 000 4.12 312 E 230 V 20 X 612 ZL Figure 2: Circuit for Question 2
A radio transmitter is connected to an antenna having impedance 8 + j40 Ω with a 50 coaxial cable. If the transmitter can deliver 30 W to the load, how much power is delivered to the antenna? a. (10 Marks) b. Alossless 50 ohms transmission line is connected to unknown load impedance. Voltage measurements along the line reveal that the maximum and minimum voltage values are (1)volts and (V2 - 1)volts respectively. The distance at which maximum voltage is observed...
Q1: In the circuit shown below use Thevenin's method to find Voc and the maximum power delivered to the load RL 4R 32
Q1: In the circuit shown below use Thevenin's method to find Voc and the maximum power delivered to the load RL 23 Τον Θ
(a) Given a circuit in Figure Q4(a): (1) State the condition for maximum average power transfer to the load impedance. Z (2 marks) (1) Determine the load impedance, Z (4 marks) (in) Find the maximum average power (5 marks) Lt mm JI R RE 492 120° A 20 C. 70.502 W ZL 1 Figure Q4(a) An air conditioner operates at 240V... at a frequency of 60 Hz. It absorbs an average power of 9 kW at a lagging power factor,...
load. Find A certain practical de voltage source can provide a current of 20 A when it is (momentarily) short-circuited, and can provide of 58 W to a 20 (a) The open-circuit voltage (b) The maximum power it could deliver to a well-chosen R (c) What is the value of that RL? V = Pras- RL =
ame Su chool Number 4: : The source voltage of the circuit below is V()-140cos(30). The component values are RI-20, XL-30. Xc-20 a) Determine the load impedance Zab that will absorb maximum power if it is connected to terminals a-b of the circuit below. b) Determine the maximum power absorbed by this load. Xc XL. M-0.8H R1 2-2 0.4H Vit)
ame Su chool Number 4: : The source voltage of the circuit below is V()-140cos(30). The component values are RI-20,...
