The shear strength of prestressed components are due to the contribution of concrete(vc) , transverse steel (Vs) and vertical component of prestressed force (Vp) as per LRFD 2004 code.
Transverse reinforcement (stirrups) resists shear once the
concret cracks by developing tension in the transverse steel. It
also helps increase shear resistance by keeping inclined crack
widths
small, which improves aggregate interlock. The magnitude of the
shear resistance provided by transverse reinforcement (stirrups) is
depends upon yield strength, cross section area and distribution of
all steel in it.
V= Vc+ Vs+ Vp
Add Answer to:

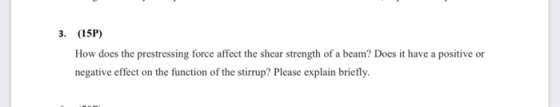

3. (15P) How does the prestressing force affect the shear strength of a beam? Does it...
Question 2 (15p): Multicollinearity and heteroscedasticity a. What does heteroscedasticity mean? How does it affect estimates?...
Question 2 (15p): Multicollinearity and heteroscedasticity a. What does heteroscedasticity mean? How does it affect estimates? b. What is multicollinearity and how does it affect estimates? Question 3 (15p): In estimating the effect of a beer tax on traffic accidents, assume as in the textbook
Shear force and bending moments of the beam. For the simply supported beam subjected to the...
Shear force and bending moments of the beam.
For the simply supported beam subjected to the loading shown in Figure P7.8 derive equations for the shear force V and the bending moment M for any location in the beam. (Place the origin at point A.) plot the shear-force and bending-moment diagrams for the beam, using the derived functions. report the maximum positive bending moment, the maximum negative bending moment, and their respective locations.
Calculate and plot the shear force V and bending moment M everywhere on the beam; Calculate...
Calculate and plot the shear force V and bending moment M
everywhere on the beam; Calculate the maximum normal stress and
maximum shear stress experienced by the beam anywhere along its
length; What would the tensile yield strength oy need to
be and what would the shear yield strength ty need to be
in order for the beam to have a Safety Factor of 3 against failure
in both tension and shear
501 50 1 150b 3 in. 12 in....
Beam Cross Sections Shear Force andQ below shows the cross section of an I-beam. The internal...
Beam Cross Sections Shear Force andQ below shows the cross section of an I-beam. The internal shear force, V, is shown. The figurehb Points B and D are located on the flange. Rank these situations, from greatest to least, on the basis of the value of Q. 3" 1" 1" 1" Least Greatest 123 Or, the value of Q is the same at every point. Please carefully explain your reasoning. Beam Cross Sections Shear Flow I The figure below shows...
(3) What affect does the charge of the ion in solution have on the activity coefficient?...
(3) What affect does the charge of the ion in solution have on the activity coefficient? How does this effect change as a function of the ionic strength (u)? (4) Does the activity coefficient depend on whether the ion is a cation or an anion?
3. The following beam is exposed to a shear force of V = 30 kN, (20...
3. The following beam is exposed to a shear force of V = 30 kN, (20 PTS) a) Determine the maximum shear stress developed in the beam. b) The beam has an allowable shear stress of 2.5 MPa. Determine the maximum shear force V that can be applied to the cross section. 150 mm
For the beam A) The shear force and the bending moment as function of x, where...
For the beam
A) The shear force and the bending moment as function of x,
where 5 < x < 8 m
B) The shear force and bending moment at point C located 6.5 m
from the support A.
Please include units
V (x) =
M (x) =
B)
Please solve prior to comparing answers and fully understanding,
I'll rate if correct. Much appreciated
S kN 15 kN/m 20kN m
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown.
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Label all significant points on each diagram and identify the maximum moments along with their respective locations. For all answers entered, use the sign convention for shear forces and bending moments. (a) Find the location x and the corresponding bending moment M at the one point between A and B at which the shear force equals zero. (b) Consider the entire beam and determine the maximum positive...
Answer clearly show each step and freebody diagrams 3. Construct the complete shear force and bending...
Answer clearly show each step and freebody
diagrams
3. Construct the complete shear force and bending moment diagrams for the beam shown below. Axes should be labeled and shown units. Identify the magnitude and location of the maximum bending moment (positive or negative) 400 lb/ft В 4. Construct the complete shear force and bending moment diagrams for the beam shown below. Axes should be labeled and shown units. Identify the magnitude and location of the maximum bending moment (positive or...
The ionic strength of seawater is approximately 0.7 M. Briefly explain how ionic strength will affect,...
The ionic strength of seawater is approximately 0.7 M. Briefly explain how ionic strength will affect, as an example, the dissolution of CaCO3 in seawater. Use free energy (DG), and chemical equilibrium, to explain your answer.
Question 2 (15p): Multicollinearity and heteroscedasticity a. What does heteroscedasticity mean? How does it affect estimates? b. What is multicollinearity and how does it affect estimates? Question 3 (15p): In estimating the effect of a beer tax on traffic accidents, assume as in the textbook
Shear force and bending moments of the beam.
For the simply supported beam subjected to the loading shown in Figure P7.8 derive equations for the shear force V and the bending moment M for any location in the beam. (Place the origin at point A.) plot the shear-force and bending-moment diagrams for the beam, using the derived functions. report the maximum positive bending moment, the maximum negative bending moment, and their respective locations.
Calculate and plot the shear force V and bending moment M
everywhere on the beam; Calculate the maximum normal stress and
maximum shear stress experienced by the beam anywhere along its
length; What would the tensile yield strength oy need to
be and what would the shear yield strength ty need to be
in order for the beam to have a Safety Factor of 3 against failure
in both tension and shear
501 50 1 150b 3 in. 12 in....
Beam Cross Sections Shear Force andQ below shows the cross section of an I-beam. The internal shear force, V, is shown. The figurehb Points B and D are located on the flange. Rank these situations, from greatest to least, on the basis of the value of Q. 3" 1" 1" 1" Least Greatest 123 Or, the value of Q is the same at every point. Please carefully explain your reasoning. Beam Cross Sections Shear Flow I The figure below shows...
(3) What affect does the charge of the ion in solution have on the activity coefficient? How does this effect change as a function of the ionic strength (u)? (4) Does the activity coefficient depend on whether the ion is a cation or an anion?
3. The following beam is exposed to a shear force of V = 30 kN, (20 PTS) a) Determine the maximum shear stress developed in the beam. b) The beam has an allowable shear stress of 2.5 MPa. Determine the maximum shear force V that can be applied to the cross section. 150 mm
For the beam
A) The shear force and the bending moment as function of x,
where 5 < x < 8 m
B) The shear force and bending moment at point C located 6.5 m
from the support A.
Please include units
V (x) =
M (x) =
B)
Please solve prior to comparing answers and fully understanding,
I'll rate if correct. Much appreciated
S kN 15 kN/m 20kN m
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Label all significant points on each diagram and identify the maximum moments along with their respective locations. For all answers entered, use the sign convention for shear forces and bending moments. (a) Find the location x and the corresponding bending moment M at the one point between A and B at which the shear force equals zero. (b) Consider the entire beam and determine the maximum positive...
Answer clearly show each step and freebody
diagrams
3. Construct the complete shear force and bending moment diagrams for the beam shown below. Axes should be labeled and shown units. Identify the magnitude and location of the maximum bending moment (positive or negative) 400 lb/ft В 4. Construct the complete shear force and bending moment diagrams for the beam shown below. Axes should be labeled and shown units. Identify the magnitude and location of the maximum bending moment (positive or...
