Question

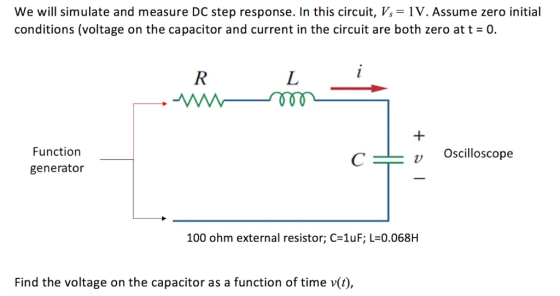

We will simulate and measure DC step response. In this circuit, Vs 1V. Assume zero initial conditions (voltage on the capacitor and current in the circuit are both zero att 0. Function generator Oscilloscope 100 ohm external resistor; C=1uF, L=0.068H Find the voltage on the capacitor as a function of time vt),\huge R = 100 ohm, C = 10^{-6} F, L = 0.068 H

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

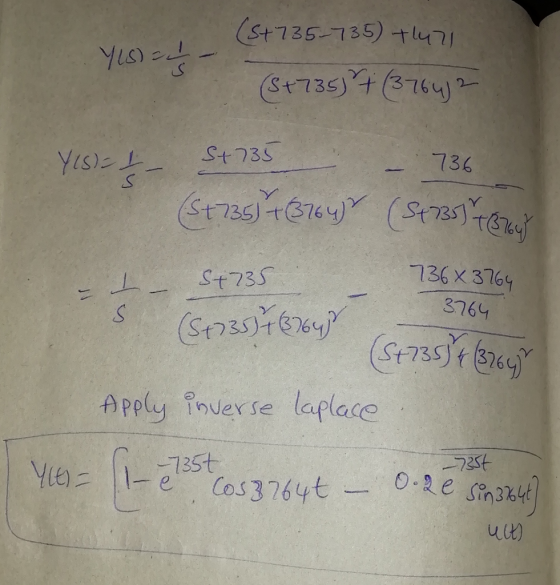

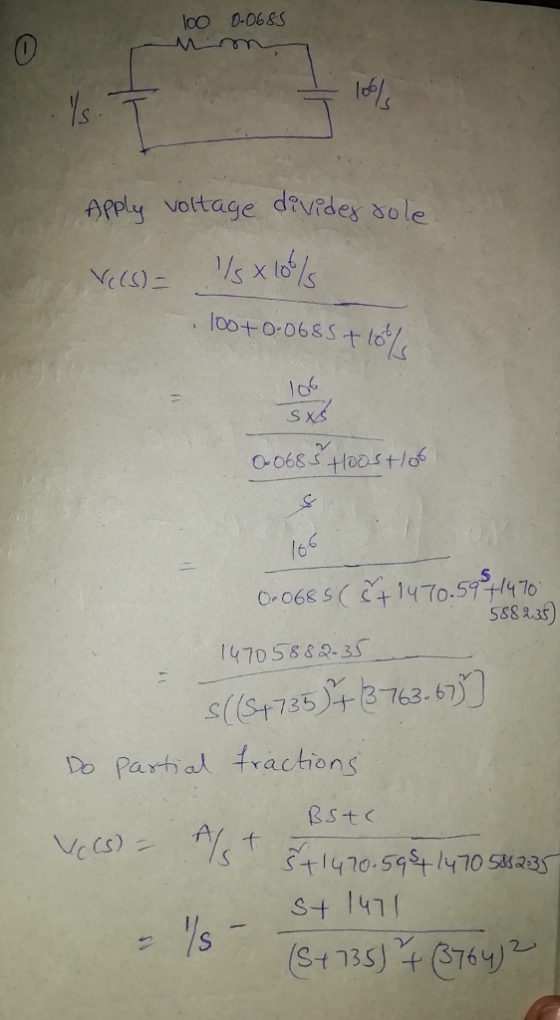

apply vottage devrdes sole lo o-0689( (+ 1470.57チ/47b. 5s8 2a5) 14705 882-3 s(S4-735)十(3763.. 67) Do parhal fractions Bst s+ l41

0 0
