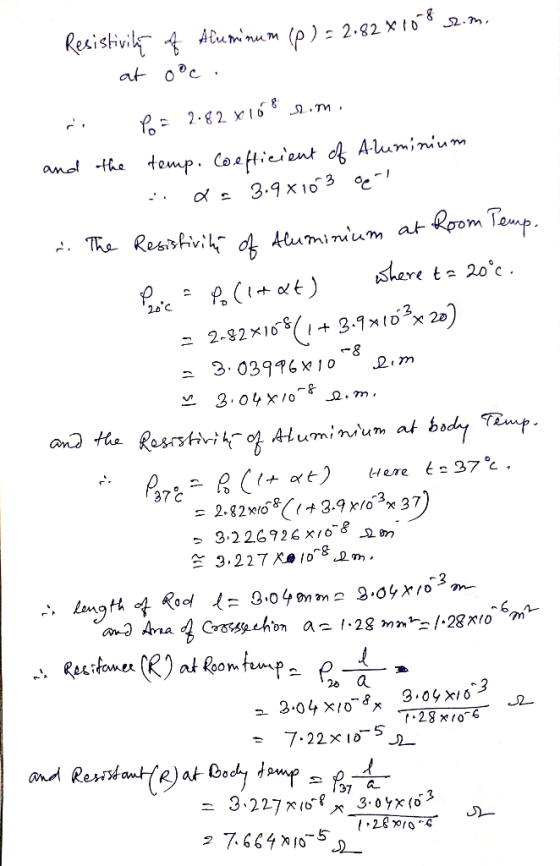

An aluminum rod that is 3.04 mm long with a cross-sectional area of 1.28 mm2 is used for a digital thermometer.
OsuniPhys1 26P071
An aluminum rod that is 3.04 mm long with a cross-sectional area of 1.28 mm2 is used for a digital thermometer.
(a) what is the resistance (in Ω) at room temperature? (Assume room temperature is 20.0°C)
(b) What is the resistance (in 0) at body temperature? (Assume body temperature is 37.00℃.)
Homework Answers
