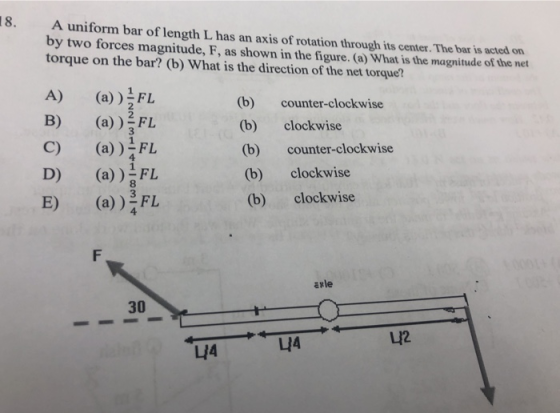

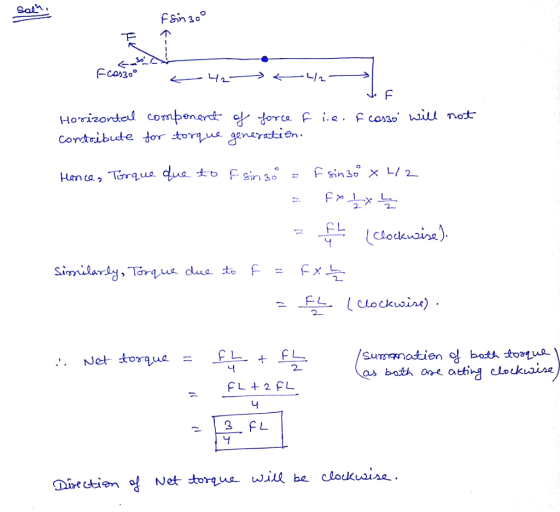

18. A uniform bar of length L has an axis of rotation through its center. The...
14. A thin rod (mass lkg and length Im) with its rotation axis perpendicular to its length has a moment of incrtia of 1...
14. A thin rod (mass lkg and length Im) with its rotation axis perpendicular to its length has a moment of incrtia of 1/12 ML2. Two forces are applied to the rod. The points of application and the directions of the forces are indicated in the diagram below. The orientations of the forces remain constant relative to the rod as the rod rotates and produce a constant torque on the rod. through its centre and Rotation axis (a) If the...
The bar shown in figure below can rotate around the axis indicated by the dot counter clockwise.

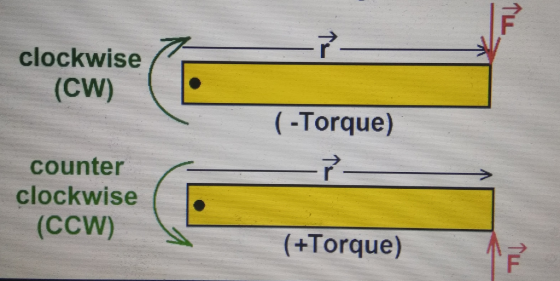

The bar shown in figure below can rotate around the axis indicated by the dot counter clockwise. If a net torque of 3.5 N.m is experienced by the bar about the axis. (a) Draw a free body diagram, showing all horizontal and vertical forces acting on the bar. (b) Calculate the acting force F on the bar in N. (c) Calculate the angular acceleration in rad/s2 if the moment of inertia of the bar's is 0.5 kg.m?
The uniform bar shown in the diagram has a length of 0.80 m. The bar begins to rotate from rest in the horizontal...
The uniform bar shown in the diagram has a length of 0.80 m. The
bar begins to rotate from rest in the horizontal plane about the
axis passing through its left end. What will be the magnitude of
the angular momentum L of the bar 6.0 s after the motion has begun?
The forces acting on the bar are shown.
Express your answer in kg*m2/s
Q-4 (25 pts A uniform bar of length (L), cross sectional area (A) and mass (m) is free to rotate about a frictionle...
Q-4 (25 pts A uniform bar of length (L), cross sectional area (A) and mass (m) is free to rotate about a frictionless hinge at "O" in a horizontal plane. At the instant shown its angular velocity is (w) rad/sec clockwise and the applied torque (T) is clockwise. For the instant determine: a) The reactions at the hinge "O b) The internal forces (Shear force V, axial force F) in the middle of the bar (xeL/2 from hinge "O") Hint:...
A rigid, uniform bar with mass m and length b rotates about the axis passing through the midpoint of the bar perpendicu...
A rigid, uniform bar with mass m and length b rotates about the axis passing through the midpoint of the bar perpendicular to the bar. The linear speed of the end points of the bar is v. What is the magnitude of the angular momentum L of the bar? Express your answer in terms of m, b, v, and appropriate constants.
The uniform bar OC of length L pivots freely about a horizontal axis through O. If the spring of modulus k is unstretche...
The uniform bar OC of length L pivots freely about a horizontal
axis through O. If the spring of modulus k is unstretched when C is
coincident with A, determine the tension T required to hold the bar
in the 38° position shown. The diameter of the small pulley at D is
negligible.
The uniform bar OC of length L pivots freely about a horizontal axis through O. If the spring of modulus k is unstretched when C is coincident...
Problem 4 A uniform slender rod of length L- 3 m and mass 2 kg rotates freely (no friction) about...
Problem 4 A uniform slender rod of length L- 3 m and mass 2 kg rotates freely (no friction) about hinge at A. Att- 0, the initial angle is B 30 and the initial angular velocity SQUARED is 4.9 rads/s in the counter-clockwise direction. a) What are the hinge reaction forces, acceleration of the center of mass, angular velocity (squared) and angular acceleration as functions of B, b) what are the hinge reaction forces, acceleration of the center of mass...
Example 10.8 Rotating Rod A uniform rod of length L 1.6 m and mass 2.8 k...
Example 10.8 Rotating Rod A uniform rod of length L 1.6 m and mass 2.8 k is attached at one end to a frictionless pivot and is free to rotate about the pivot in the vertical plane as in the figure. The rod is released from rest in the horizontal position. What are the initial angular acceleration of the rod and the initial translational acceleration of its right end Pivot SOLVE IT Mg A rod is free to rotate around...
Problem Consider the uniform bar of in the igure below. A&T 9 Axis of rotation: O...
Problem Consider the uniform bar of in the igure below. A&T 9 Axis of rotation: O moment of inertia of the bar about the axis of rotation, o, is-mL, whe m is the mass of the bar and L is the length. Derive the differential equation representing the rotational motion of the bar. That is, find the equation of motion. (15 pts) The Page 8 of 8
(17%) Problem 2: A uniform thin rod of mass m 1.8 kg and length L 1.7...
(17%) Problem 2: A uniform thin rod of mass m 1.8 kg and length L 1.7 m can rotate about an axle through its center. Four forces are acting on it as shown in the ngre. Their magnitudes are F = 9.5 N, F = 2.5 N, F = 14 N and F4 = 19 N. F2 acts a distance 45c F. d 0.15 m from the center of mass. |d 600 3 F Otheexpertta.com 4 20% Part (a) Calculate...
14. A thin rod (mass lkg and length Im) with its rotation axis perpendicular to its length has a moment of incrtia of 1/12 ML2. Two forces are applied to the rod. The points of application and the directions of the forces are indicated in the diagram below. The orientations of the forces remain constant relative to the rod as the rod rotates and produce a constant torque on the rod. through its centre and Rotation axis (a) If the...
The uniform bar shown in the diagram has a length of 0.80 m. The
bar begins to rotate from rest in the horizontal plane about the
axis passing through its left end. What will be the magnitude of
the angular momentum L of the bar 6.0 s after the motion has begun?
The forces acting on the bar are shown.
Express your answer in kg*m2/s
Q-4 (25 pts A uniform bar of length (L), cross sectional area (A) and mass (m) is free to rotate about a frictionless hinge at "O" in a horizontal plane. At the instant shown its angular velocity is (w) rad/sec clockwise and the applied torque (T) is clockwise. For the instant determine: a) The reactions at the hinge "O b) The internal forces (Shear force V, axial force F) in the middle of the bar (xeL/2 from hinge "O") Hint:...
The uniform bar OC of length L pivots freely about a horizontal
axis through O. If the spring of modulus k is unstretched when C is
coincident with A, determine the tension T required to hold the bar
in the 38° position shown. The diameter of the small pulley at D is
negligible.
The uniform bar OC of length L pivots freely about a horizontal axis through O. If the spring of modulus k is unstretched when C is coincident...
Problem 4 A uniform slender rod of length L- 3 m and mass 2 kg rotates freely (no friction) about hinge at A. Att- 0, the initial angle is B 30 and the initial angular velocity SQUARED is 4.9 rads/s in the counter-clockwise direction. a) What are the hinge reaction forces, acceleration of the center of mass, angular velocity (squared) and angular acceleration as functions of B, b) what are the hinge reaction forces, acceleration of the center of mass...
Example 10.8 Rotating Rod A uniform rod of length L 1.6 m and mass 2.8 k is attached at one end to a frictionless pivot and is free to rotate about the pivot in the vertical plane as in the figure. The rod is released from rest in the horizontal position. What are the initial angular acceleration of the rod and the initial translational acceleration of its right end Pivot SOLVE IT Mg A rod is free to rotate around...
Problem Consider the uniform bar of in the igure below. A&T 9 Axis of rotation: O moment of inertia of the bar about the axis of rotation, o, is-mL, whe m is the mass of the bar and L is the length. Derive the differential equation representing the rotational motion of the bar. That is, find the equation of motion. (15 pts) The Page 8 of 8
(17%) Problem 2: A uniform thin rod of mass m 1.8 kg and length L 1.7 m can rotate about an axle through its center. Four forces are acting on it as shown in the ngre. Their magnitudes are F = 9.5 N, F = 2.5 N, F = 14 N and F4 = 19 N. F2 acts a distance 45c F. d 0.15 m from the center of mass. |d 600 3 F Otheexpertta.com 4 20% Part (a) Calculate...
