Question 10. Use the ideal diode model to find the onerating point of the diode in...

Question

Question

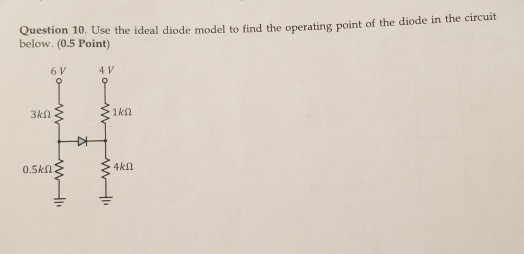

Question 10. Use the ideal diode model to find the onerating point of the diode in the circuit below. (0.5 Point) 6V 4V 3kg ξ

engineering Electrical-Engineering

Answer 1

Answer #1

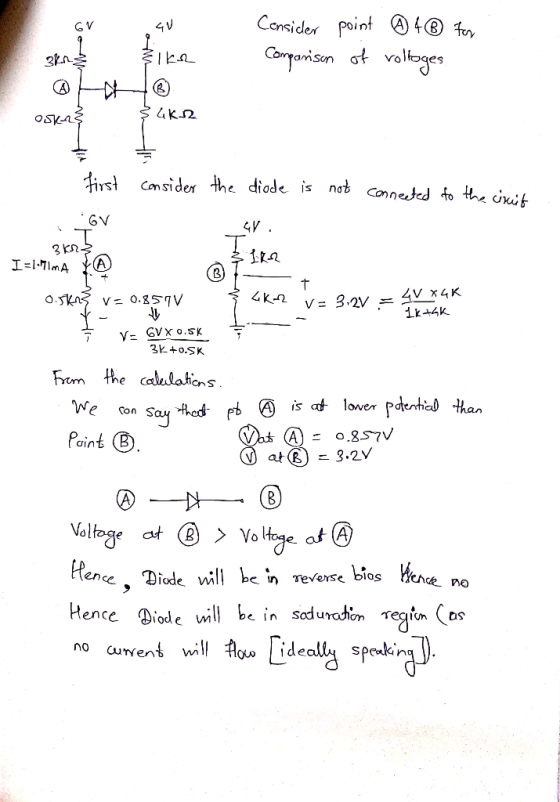

GV 4V Censicer point ④ 4 ® for Comparison of voltages 3ks Zika @ HH® Oskar & ako consider the diode is not connected to the c

Answer 2

Similar Homework Help Questions

Assume the diode is ideal Determine if the diode is ON or OFf Find the voltage...

Assume the diode is ideal Determine if the diode is ON or OFf Find the voltage labeled v in the diode circuit below. There will be no partial credit for this problem. Even if your answer is correct, you must show your work to receive points 2 kn 2 k2 T3mA 4V
Part IIl: Diodes The Ideal-Diode Model a) For the circuit below, find ID and VD for the case VDD 5 V and R 10 k2. Assum...

Part IIl: Diodes The Ideal-Diode Model a) For the circuit below, find ID and VD for the case VDD 5 V and R 10 k2. Assume that the diode has a voltage of 0.7 V at 1-mA current. Use (a) iteration and (b) the constant-voltage-drop model with VD 0.7 V 홍Yo b) Design the circuit below to provide an output voltage of 2.4 V. Assume that the diodes available have 0.7-V drop at 1 mA. +10 V Vo Part IIl:...
Find the operational state of diodes shown in the figure given below. Assume non-ideal diode model...

Find the operational state of diodes shown in the figure given below. Assume non-ideal diode model with constant voltage drop Von = 0.7V. to2 4V (A) D, -ON,D2 - ON (B) D2 - ON,D2 - OFF (C) D2 - OFF,D2 - ON (D) D2 - OFF,D2 - OFF

A) Find the Qpoint for the diode using the ideal diode model. B) Find the Qpoint...

A) Find the Qpoint for the diode using the ideal diode model. B) Find the Qpoint for the diode using the constant voltage drop model with Von=0.6V. +3 oooA 3000 a000几
Ql. Find Vo in the circuit with (i) Ideal diode model. (ii) PWL model (Vf: 0.6...

Ql. Find Vo in the circuit with (i) Ideal diode model. (ii) PWL model (Vf: 0.6 V, r,-10 Ω). 100 Ω 100 Ω D1 100 Ω 1 v 10 V( 10 mA 100 Ω
41) Given the following circuit, determine the voltage across the diode. (Assume ideal silicon diode) [1...

41) Given the following circuit, determine the voltage across the diode. (Assume ideal silicon diode) [1 mark] a. OV 10 K2 10 k2 b. 4V c. 8V d. 0.7V

In the circuit shown below, calculate the current through each diode. Use the ideal diode model....

In the circuit shown below, calculate the current through each diode. Use the ideal diode model. You must submit answer(s) to the exam question before other options can be enabled. Enter your answers in the text boxes and click on the Submit button. Please DO NOT USE THE BROWSER'S NAVIGATION BUTTONS (Back and Forward) in the Exam mode; it may lead to unpredictable results. To get a perfect score (100), the accuracy ofyour answer(s) must be 1% or better. Submit...
2.1- Analyze the circuit shown in figure (2); find the diode states by using ideal- (4...

2.1- Analyze the circuit shown in figure (2); find the diode states by using ideal- (4 Marks) diode model. Starting by assuming D1 is off and D2 is on. D2 Figure (2)
lai). In the diode circuit below use iterative method (use at least 3 iterations) to find...

lai). In the diode circuit below use iterative method (use at least 3 iterations) to find the diode voltage and current, if VDD=2.0 V, R= 1 KO2, the diode has Is - 10e- 15 A Find diode voltage and current using constant 0.7 V drop model. comment on the results of (i) and (ii) (iii) ang DV. b. Both diodes in the circuit below are rated 0.7V, 1mA. R=1KN Sketch vo vs vi If vi = 2sinot, on the same...

11. (10 points) Draw the I-V Characteristic of a forward voltage drop diode model (not ideal)....

11. (10 points) Draw the I-V Characteristic of a forward voltage drop diode model (not ideal). Label everything carefully!
