Homework Answers

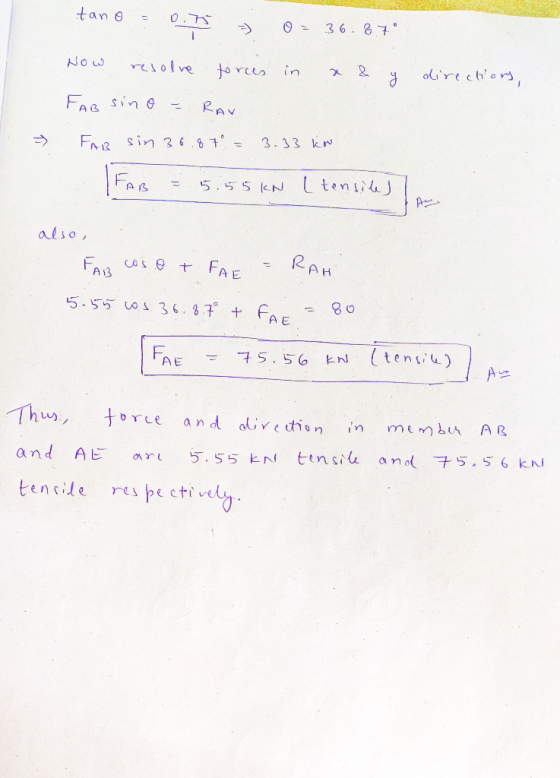

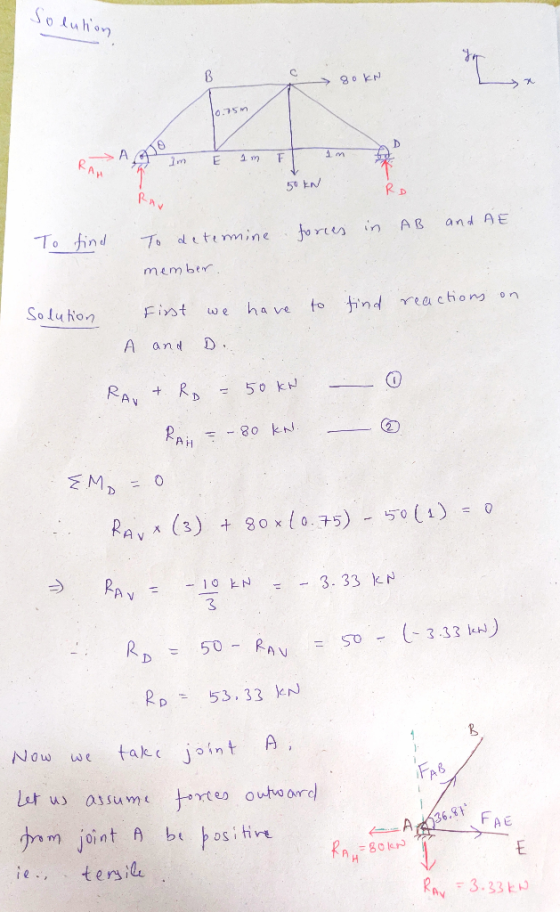

I solve this question by joint method. If my answer and presentation is satisfying for you then please rate and like my answer.
Add Answer to:

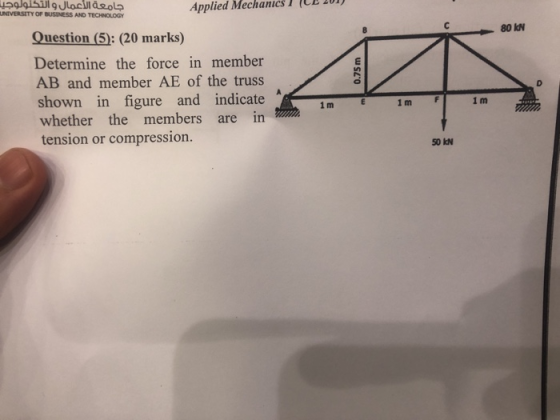

جامعة الأعمال و التخلولوجيذ Applied Mechanic UNIVERSITY OF BUSINESS AND TECHNOLOGY 80 IdN Question (5): (20...
please show all steps 3. The truss has a pinned support at A and a roller...
please show all steps
3. The truss has a pinned support at A and a roller support at C. i. If P = 0 kN and P2 = 5 kN, list all of the zero-force members in the truss (10 points) ii. If P1 = 30 kN and P2 = 16 kN, the support reaction at C is Roy = 28 kN (pointing up) Determine the forces in all members of the truss. Clearly indicate if each member is in...
2. For the pin-jointed truss shown in Figure Q2.1 applied at node 4. The Young's modulus E(GPa) is the same for...
2. For the pin-jointed truss shown in Figure Q2.1 applied at node 4. The Young's modulus E(GPa) is the same for the three truss vertical downward force P(kN) is a members. The cross sectional area of each of the truss members is indicated below and expressed in terms of a constant A. By using the stiffness method: (a) Compute the reduced stiffness matrix Kg [5 marks [10 marks (b) Calculate the global displacements of node 4 in terms of P,...
A roof truss is loaded and supported as shown in Figure 2. The joints are all...
A roof truss is loaded and supported as shown in Figure 2. The joints are all pinned. (a) Determine the support reactions at A and G. (25 marks) (b)Using "Method of joints" find the forces in members AB, AF, GF, CD and DE of the truss. State whether each of these members is in tension or compression. (75 marks) (c) Determine the force in members BC, CF and EF of the truss using "Method of sections". State whether each of...
1. A simple truss structure is given in iure I below, joint A is commected to...
1. A simple truss structure is given in iure I below, joint A is commected to simple pin support and Joint G is resting on roller support. Knowing that external horizontal force of 100kN acts on joint B, and vertical forces of 150KN and 50kN are acting on joint D and respectively. Determine; (a) The reaction forces at supports A and B. (3 marks) (b) Forces carmed by members AB, AD, BC, BD, CD and CE, and indicate if the...
9. [1pt] Two forces are applied to the truss as shown, F1 = 176 N and...
9. [1pt] Two forces are applied to the truss as shown, F1 = 176 N and F2 = 158 N. The truss is supported by a roller at A and a pin joint at E. Assume L = 1.50 m. Indicate whether the member DE is in compression (C) or in tension (T). You only have 1 try! Correct, computer gets: T 10. [1pt] Calculate the value of the force in member DE. Enter a negative value if the member...
The moveable gantry is used to erect and prepare a 500 Mg rocket for firing. The...
The moveable gantry is used to erect and prepare a 500 Mg rocket for firing. The primary structure of the gantry is approximated by the symmetrical plane truss shown in Figure Q3, which is statically indeterminate. As the gantry is suspended a 50 Mg section of the rocket at point A, the strain gage indicated a tensile force of 120 kN in member CD and a compressive force of 50kN and 120 kN in member AB and BG respectively due...
60 E pin O roller 9. [1pt] Two forces are applied to the truss as shown,...
60 E pin O roller 9. [1pt] Two forces are applied to the truss as shown, Fi = 128 N and F2 = 164 N. The truss is supported by a pin joint at A and a roller at E. Assume L = 1.30 m. Indicate whether the member AD is in compression (C) or in tension (T). You only have I try! Answer: Submit All Answers 10. [1pt] Calculate the value of the force in member CD. Enter a...
Assignment 5 (Force Method, Trusses, 1 q, 3 marks) Adaptive Follow-Up Problem 9.30 tem 1 >...
Assignment 5 (Force Method, Trusses, 1 q, 3 marks) Adaptive Follow-Up Problem 9.30 tem 1 > Consider the truss shown in (Figure 1). AE is constant Suppose that P 20 kN Part A Determine the force in member BD. State if the member is in tension or compression Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension LA FValue Units BD...
9. [1pt] Two forces are applied to the truss as shown, F1 = 182 N and...
9. [1pt] Two forces are applied to the truss as shown, F1 = 182 N and F2 = 187 N. The truss is supported by a pin joint at A and a roller at E. Assume L = 2.60 m. Indicate whether the member AB is in compression (C) or in tension (T). You only have 1 try! Correct, computer gets: T 10. [1pt] Calculate the value of the force in member CD. Enter a negative value if the member...
AC-CD- BC Exercise IV 20 PT a- Determine the reactions at the supports. b- Determine the force in each member of the truss c- State if the members are in tension or 3 ft compression d- If the maximum...
AC-CD- BC Exercise IV 20 PT a- Determine the reactions at the supports. b- Determine the force in each member of the truss c- State if the members are in tension or 3 ft compression d- If the maximum allowed in each beam is 400lb in tension and 600lb in compression, determine the maximum of admissible load P. 2 ft 2 ft Exercise V: 40 PT 1.6 kN 200 _ 400 mm + 45 The angle strut is welded to...
please show all steps
3. The truss has a pinned support at A and a roller support at C. i. If P = 0 kN and P2 = 5 kN, list all of the zero-force members in the truss (10 points) ii. If P1 = 30 kN and P2 = 16 kN, the support reaction at C is Roy = 28 kN (pointing up) Determine the forces in all members of the truss. Clearly indicate if each member is in...
2. For the pin-jointed truss shown in Figure Q2.1 applied at node 4. The Young's modulus E(GPa) is the same for the three truss vertical downward force P(kN) is a members. The cross sectional area of each of the truss members is indicated below and expressed in terms of a constant A. By using the stiffness method: (a) Compute the reduced stiffness matrix Kg [5 marks [10 marks (b) Calculate the global displacements of node 4 in terms of P,...
A roof truss is loaded and supported as shown in Figure 2. The joints are all pinned. (a) Determine the support reactions at A and G. (25 marks) (b)Using "Method of joints" find the forces in members AB, AF, GF, CD and DE of the truss. State whether each of these members is in tension or compression. (75 marks) (c) Determine the force in members BC, CF and EF of the truss using "Method of sections". State whether each of...
1. A simple truss structure is given in iure I below, joint A is commected to simple pin support and Joint G is resting on roller support. Knowing that external horizontal force of 100kN acts on joint B, and vertical forces of 150KN and 50kN are acting on joint D and respectively. Determine; (a) The reaction forces at supports A and B. (3 marks) (b) Forces carmed by members AB, AD, BC, BD, CD and CE, and indicate if the...
The moveable gantry is used to erect and prepare a 500 Mg rocket for firing. The primary structure of the gantry is approximated by the symmetrical plane truss shown in Figure Q3, which is statically indeterminate. As the gantry is suspended a 50 Mg section of the rocket at point A, the strain gage indicated a tensile force of 120 kN in member CD and a compressive force of 50kN and 120 kN in member AB and BG respectively due...
60 E pin O roller 9. [1pt] Two forces are applied to the truss as shown, Fi = 128 N and F2 = 164 N. The truss is supported by a pin joint at A and a roller at E. Assume L = 1.30 m. Indicate whether the member AD is in compression (C) or in tension (T). You only have I try! Answer: Submit All Answers 10. [1pt] Calculate the value of the force in member CD. Enter a...
Assignment 5 (Force Method, Trusses, 1 q, 3 marks) Adaptive Follow-Up Problem 9.30 tem 1 > Consider the truss shown in (Figure 1). AE is constant Suppose that P 20 kN Part A Determine the force in member BD. State if the member is in tension or compression Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension LA FValue Units BD...
AC-CD- BC Exercise IV 20 PT a- Determine the reactions at the supports. b- Determine the force in each member of the truss c- State if the members are in tension or 3 ft compression d- If the maximum allowed in each beam is 400lb in tension and 600lb in compression, determine the maximum of admissible load P. 2 ft 2 ft Exercise V: 40 PT 1.6 kN 200 _ 400 mm + 45 The angle strut is welded to...
