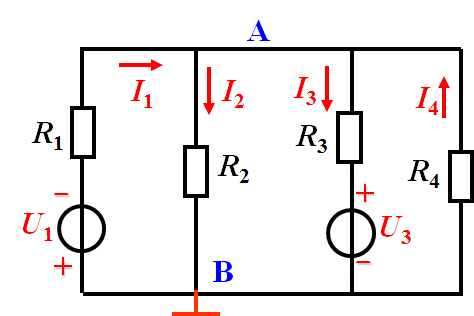

Find the potential of point A and the current of each branch.
We need at least 10 more requests to produce the answer.
0 / 10 have requested this problem solution
The more requests, the faster the answer.
A) In the circuit shown in the figure , find
the magnitude of current in the upper branch.
B) Find the magnitude of current in the
middle branch.
C) Find the magnitude of current in the lower
branch.
D) What is the potential difference of point relative to point ?
In the circuit shown in Fig. E26.28, find (a) the current in each branch and (b) the potential difference V_ab of point a relative to point b.
The 5.00 V battery in (Figure 1) is removed from the circuit and replaced by a 15.00 V battery, with its negative terminal next to point b. The rest of the circuit is as shown in the figure. Part A Find the current in the upper branch. Part B Find the current in the middle branch. Part C Find the current in the lower branch. Part D Find the potential difference Vab of point a relative to point b.
In the circuit shown in Fig. E26.28, find (a) the current in each branch and (b) the potential difference Vab of point a relative to point b.
Simplified
Forward-Active Region Model(Example 3)•Problem: Find Q-point • Given data: bF = 50, bR = 1 VBC = VB - VC = -9 V • Assumptions: Forward-active region of operation, VBE = 0.7 V
For the circuit shown in Fig. 6, calculate:(a) the current in
the 2.00−Ω resistor.(b) the potential difference between points a
and b.
Assume that the components on Fig. 7 have the following
values:V1 = 10.0 V , V2 = 15.0 V , R1 = 5.0 Ω, R1 = 5.00 Ω, R2 =
10.0 Ω, R3 = 15.0 Ω, R4 = 20.0 Ω. (a) Find the current trough each
branch of the circuit. (b) Find the power dissipated in each
circuit...
Find current in each branch of the circuit given below.
5. Find current in each branch of the circuit given below. 7.00 V 5.00 V 1.0022 3.00 2 w b 2.00 2
