Question

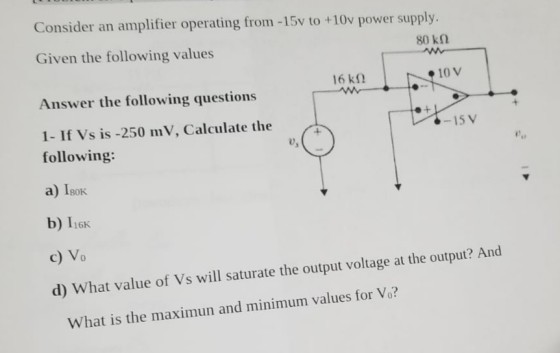

Consider an amplifier operating from -15v to +10v power supply. 80 kΩ Given the following values 16 kΩ 10 V Answer the following questions 1- If Vs is -250 mV, Calculate the following: a) Isok b) 1i6k c) Vo d) What value of Vs will saturate the output voltage at the output? And -15 V o, What is the maximun and minimum values for Vo?

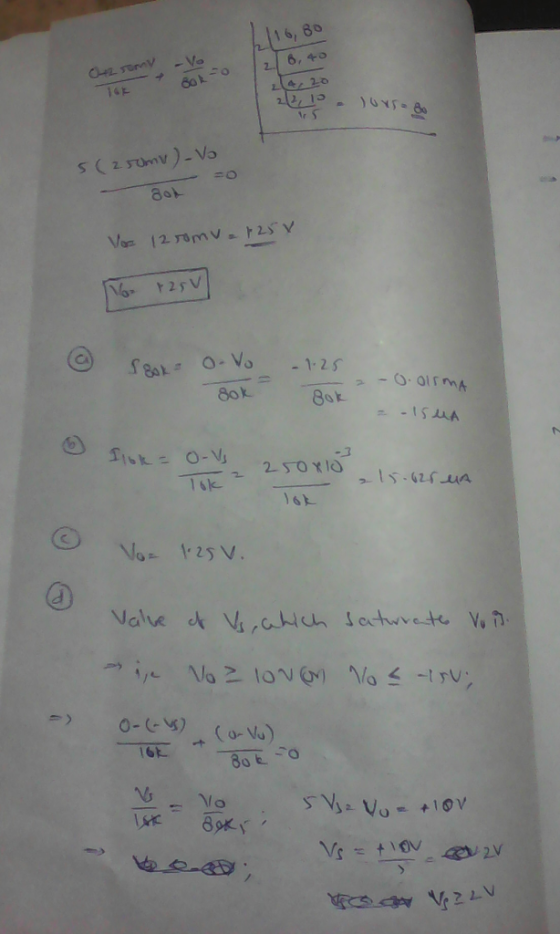

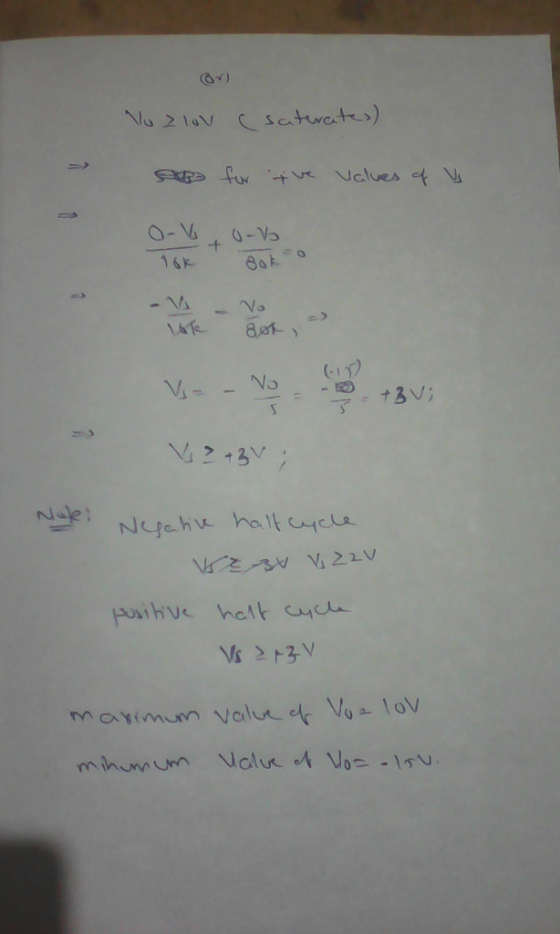

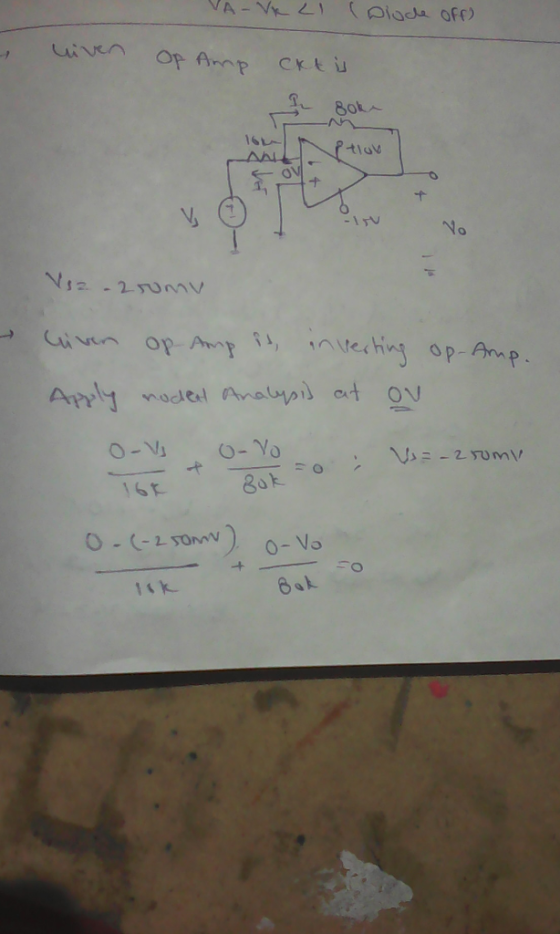

0 0
Add a comment Improve this question Transcribed image text
