Homework Answers
Add Answer to:

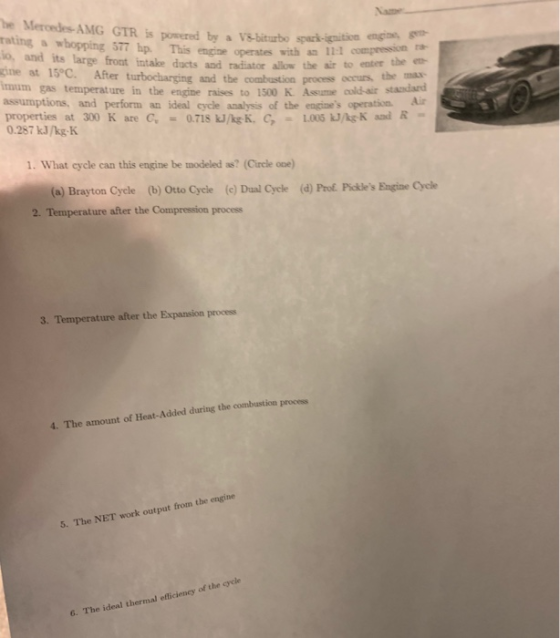

operates with a 11:1 compression be Mercedes-AMG GTR is powered by a Vs-biturbo spark Tating whopping...
4. A4.6 L spark ignition engine operates on the ideal Otto cycle with a compression ratio of 10. At the beginning of the compression process the air is at 107 kPa and 21 C. The maximum cycle temp...
4. A4.6 L spark ignition engine operates on the ideal Otto cycle with a compression ratio of 10. At the beginning of the compression process the air is at 107 kPa and 21 C. The maximum cycle temperature is 1116°C. Accounting for variable specific heats, determine: (a) the heat addition per cycle in kJ. Ans: 3.368 kJ (b) the net work per cycle in kJ. Ans: 1.907 kJ (c) the mean effective pressure in kPa. Ans: 460.6 kPa (d) the...
A gasoline engine operates on the air standard Otto cycle. The air intake to the engine...
A gasoline engine operates on the air standard Otto cycle. The air intake to the engine is at 300K and 95kPa (State 1). The air is compressed in the engine to an unknown pressure. Heat is then added during combustion at an amount of 1100 kJ/kg. At the end of the heat addition process, the temperature reaches 2200K. Compute the following: (a) the temperature at the end of the compression process, (b) the volumetric compression ratio of this engine, (c)...
A four-stroke 2.0 Litre compression ignition engine operates on a Diesel cycle with a compression ratio...
A four-stroke 2.0 Litre compression ignition engine operates on a Diesel cycle with a compression ratio of 20 and a cut-off ratio of 1.8. Air is at 30°C and 100 kPa at the beginning of the compression process. It may be assumed that for the air, the specific heat, Cp and gas constant, R are 1.005 and 0.287 kJ/kg.K, respectively. Calculate: the temperature (K) of the air at the end of the following processes: (i) (a) compression (ii) combustion, (ii...
Consider a four-cylinder, four stroke, compression ignition engine with a compression ratio of 22 and a...
Consider a four-cylinder, four stroke, compression ignition engine with a compression ratio of 22 and a cutoff ratio of 3. (a) Name the thermodynamic cycle you would use to analyze this engine, (b) draw the P-v and Tis diagrams for this cycle, (c) determine the heat input to the engine (in kJ/kg) if the temperature rise of the heat addition step is 1500°C, and (d) determine the engine speed in revolutions/minute (RPM) for a net power output of 50 kW...
At the beginning of the compression process of a Cold air-standard Diesel cycle operating with a...
At the beginning of the compression process of a Cold air-standard Diesel cycle operating with a compression ratio of 18, the temperature is 300 K and the pressure is 0.1 MPa. The cutoff ratio for the cycle is 2. Determine: a) The temperature and pressures at the end of each process of the cycle. b) The thermal efficiency. c) The mean effective pressure, in MPa. Using the Cold Air-Standard Analysis, solve the problem for the compression ratio of 14 and...
An aircraft engine operates on a simple ideal Brayton cycle with a pressure ratio rp of...
An aircraft engine operates on a simple ideal Brayton cycle with
a pressure ratio rp of 9. Heat is added to the cycle at a rate of
490 kW; air passes through the engine at a rate of 1.1 kg/s; and
the air at the beginning of the compression is at P1 = 71 kPa and
T1 = 0 oC. Use constant specific heats at room temperature. The
properties of air at room temperature are cp =1.005 kJ/kg.K and k...
An Otto engine is operating with natural gas which can be approximated as an ideal gas....
An Otto engine is operating with natural gas which can be approximated as an ideal gas. Assuming the engine is at standard condition (25°C, 1 atm) before the compression process. Also, temperature of the Otto cycle after the combustion process is 1500 K. (a) Assuming compression ratio of the Otto engine as 8, 9 and 10, determine the corresponding temperatures of the natural gas-air mixture (natural gas with 100% excess air) after the compression. (b) Determine the thermal energy release...
(12 points) An ideal Otto cycle operates with a compression ratio of 10. At the beginning...
(12 points) An ideal Otto cycle operates with a compression ratio of 10. At the beginning of the compression process, the air is at 101 kPa and 27°C. During the constant volume heat addition process, 790 kJ/kg of heat is transferred to the air. Accounting for variable specific heats with temperature, determine: the maximum temperature during the cycle 1266.862 °C the maximum pressure during the cycle 6239.424 kPa the specific net work output 475.495481 kJ/kg the mean effective pressure (MEP)...
An air Otto cycle has compression ratio of 10. At the beginning of the compression process,...
An air Otto cycle has compression ratio of 10. At the beginning of the compression process, pressure is 1 bar and temperature is 300 K. The maximum temperature in the cycle is 2500 K. cp=718 J/kg/K. k=1.4. Air is ideal gas. Find: a) Sketch the process on a T-s diagram and a P-ν diagram. b) Temperature at each point from T1 to T4 in K. c) The net work per unit of air in kJ/kg.
Question 1 (based on the example to the example we worked in class) (30 points) Consider...
Question 1 (based on the example to the example we worked in class) (30 points) Consider an Air Standard Otto Cycle in which an engine cylinder has 2x10 kg of fuel with a heat of combustion of 45,000 kJ/kg. The volume at top dead center (i.e., the clearance volume) is 0.055x103 m3, and the volume at bottom dead center is 0.555x 103 m2. The air fuel ratio is 14:1 and the mixture temperature at start of compression is 300 K....
4. A4.6 L spark ignition engine operates on the ideal Otto cycle with a compression ratio of 10. At the beginning of the compression process the air is at 107 kPa and 21 C. The maximum cycle temperature is 1116°C. Accounting for variable specific heats, determine: (a) the heat addition per cycle in kJ. Ans: 3.368 kJ (b) the net work per cycle in kJ. Ans: 1.907 kJ (c) the mean effective pressure in kPa. Ans: 460.6 kPa (d) the...
A gasoline engine operates on the air standard Otto cycle. The air intake to the engine is at 300K and 95kPa (State 1). The air is compressed in the engine to an unknown pressure. Heat is then added during combustion at an amount of 1100 kJ/kg. At the end of the heat addition process, the temperature reaches 2200K. Compute the following: (a) the temperature at the end of the compression process, (b) the volumetric compression ratio of this engine, (c)...
A four-stroke 2.0 Litre compression ignition engine operates on a Diesel cycle with a compression ratio of 20 and a cut-off ratio of 1.8. Air is at 30°C and 100 kPa at the beginning of the compression process. It may be assumed that for the air, the specific heat, Cp and gas constant, R are 1.005 and 0.287 kJ/kg.K, respectively. Calculate: the temperature (K) of the air at the end of the following processes: (i) (a) compression (ii) combustion, (ii...
Consider a four-cylinder, four stroke, compression ignition engine with a compression ratio of 22 and a cutoff ratio of 3. (a) Name the thermodynamic cycle you would use to analyze this engine, (b) draw the P-v and Tis diagrams for this cycle, (c) determine the heat input to the engine (in kJ/kg) if the temperature rise of the heat addition step is 1500°C, and (d) determine the engine speed in revolutions/minute (RPM) for a net power output of 50 kW...
An aircraft engine operates on a simple ideal Brayton cycle with
a pressure ratio rp of 9. Heat is added to the cycle at a rate of
490 kW; air passes through the engine at a rate of 1.1 kg/s; and
the air at the beginning of the compression is at P1 = 71 kPa and
T1 = 0 oC. Use constant specific heats at room temperature. The
properties of air at room temperature are cp =1.005 kJ/kg.K and k...
(12 points) An ideal Otto cycle operates with a compression ratio of 10. At the beginning of the compression process, the air is at 101 kPa and 27°C. During the constant volume heat addition process, 790 kJ/kg of heat is transferred to the air. Accounting for variable specific heats with temperature, determine: the maximum temperature during the cycle 1266.862 °C the maximum pressure during the cycle 6239.424 kPa the specific net work output 475.495481 kJ/kg the mean effective pressure (MEP)...
Question 1 (based on the example to the example we worked in class) (30 points) Consider an Air Standard Otto Cycle in which an engine cylinder has 2x10 kg of fuel with a heat of combustion of 45,000 kJ/kg. The volume at top dead center (i.e., the clearance volume) is 0.055x103 m3, and the volume at bottom dead center is 0.555x 103 m2. The air fuel ratio is 14:1 and the mixture temperature at start of compression is 300 K....
