At the beginning of the compression process of a Cold air-standard Diesel cycle operating with a...

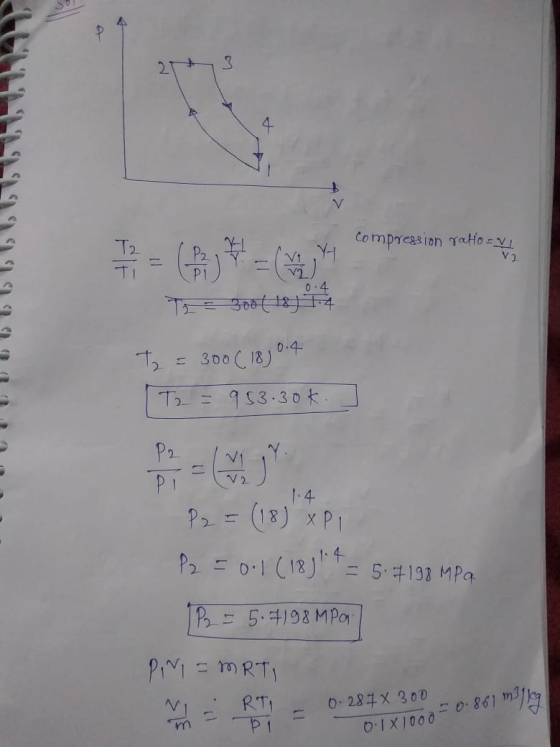

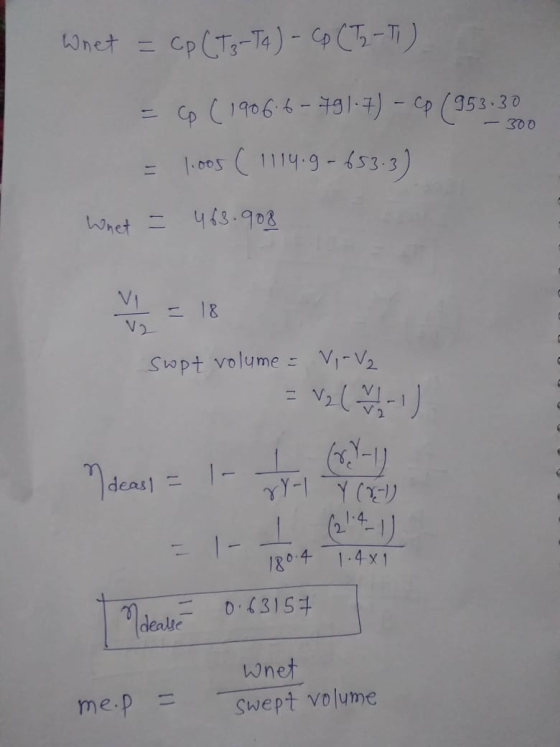

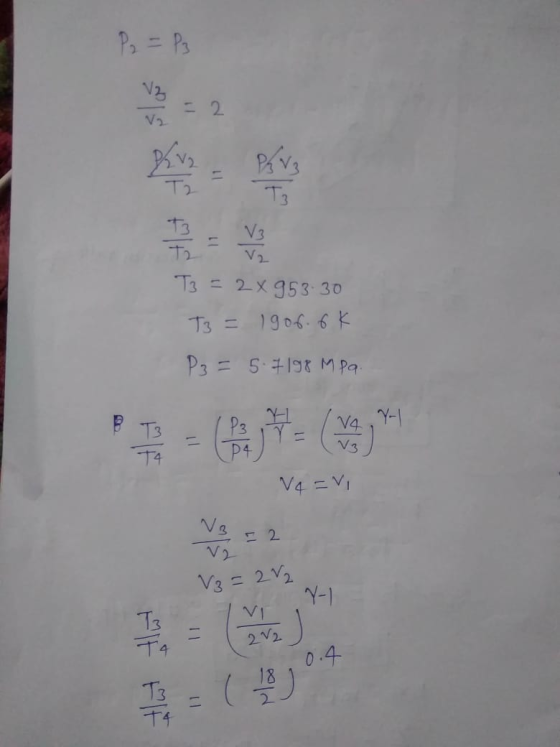

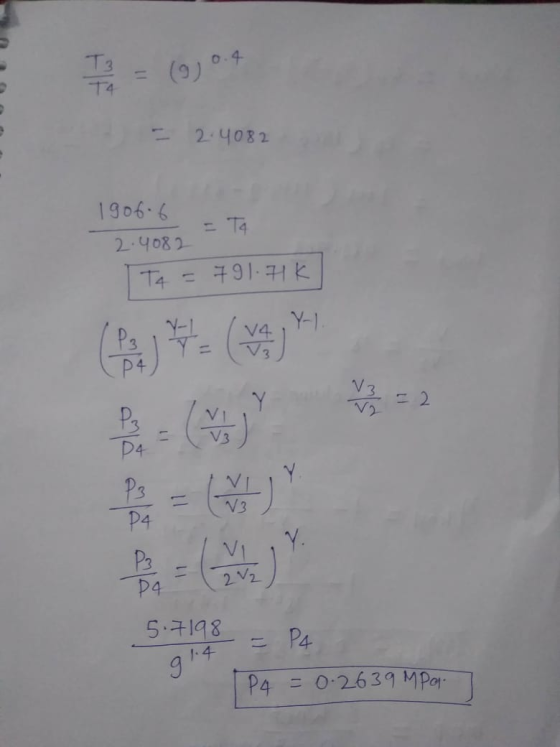

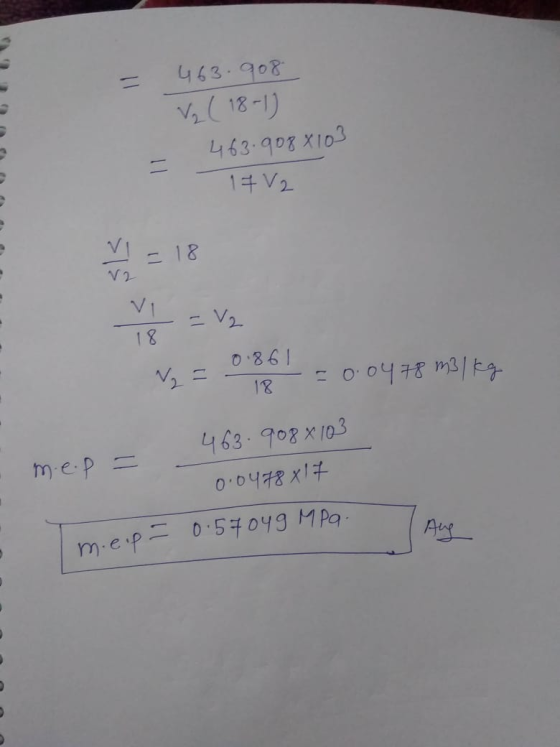

At the beginning of the compression process of a Cold air-standard Diesel cycle operating with a compression ratio of 18, the temperature is 300 K and the pressure is 0.1 MPa. The cutoff ratio for the cycle is 2. Determine: a) The temperature and pressures at the end of each process of the cycle. b) The thermal efficiency. c) The mean effective pressure, in MPa.
Using the Cold Air-Standard Analysis, solve the problem for the compression ratio of 14 and 18. Other given parameters remain the same. For air, cv = 0.718 kJ/kg·K, cp = 1.005 kJ/kg·K, k = 1.4.
Homework Answers
Add Answer to:
At the beginning of the compression process of a Cold
air-standard Diesel cycle operating with a...
Required information An air-standard Diesel cycle has a compression ratio of 16 and a cutoff rati...
Required information An air-standard Diesel cycle has a compression ratio of 16 and a cutoff ratio of 2. At the beginning of the compression process, air is at 103 kPa and 27℃. Assume constant specific heats. The properties of air at room temperature are Cp-1.005 kJ/kg-K, cv-0718 kJ/kg.K, R= 0.287 kJ/kg-K, and k = 1.4 Determine the mean effective pressure The mean effective pressure is「 kPa.
Required information An air-standard Diesel cycle has a compression ratio of 16 and a...
Q1. At the beginning of the compression process of an air-standard Diesel cycle operating with a...
Q1. At the beginning of the compression process of an air-standard Diesel cycle operating with a compression ratio of 18, the temperature is 300 K and the pressure is 0.1 MPa. The cutoff ratio (pre-expansion ratio) for the cycle is 2. Determine: (a) the temperature and pressure at the end of each process of the cycle, (b) the thermal efficiency, (c) the mean effective pressure, in MPa.
he pressure and temperature at the beginning of compression of a cold air-standard Diesel cycle are...
he pressure and temperature at the beginning of compression of a cold air-standard Diesel cycle are 100 kPa and 300 K, respectively. At the end of the heat addition, the pressure is 7.2 MPa and the temperature is 2250 K. Assume constant specific heats evaluated at 300 K. Determine: (a) the compression ratio. (b) the cutoff ratio. (c) the percent thermal efficiency of the cycle. (d) the mean effective pressure, in kPa.
A Diesel cycle has a compression ratio of 22 and begins its compression at 80 kPa and 15 C. The maximum cycle temperature is 1200°C, Utilize air-standard assumptions. The properties of air at room te...
A Diesel cycle has a compression ratio of 22 and begins its compression at 80 kPa and 15 C. The maximum cycle temperature is 1200°C, Utilize air-standard assumptions. The properties of air at room temperature are R: 0287 The 3 kPam2kg K p 100derd kPa-m /kg-K, Cpー1.005 kJ/kg-K, cv-0718 kJ/kg.K. and k= 1.4 Determine the thermal efficiency of this cycle using variable specific heats at room temperature. Use data from the tables The thermal efficiency of this cycle is 68.97...
At the beginning of the compression process of an air standard Diesel cycle, the pressure is 109 ...
At the beginning of the compression process of an air standard
Diesel cycle, the pressure is 109 kPa and the temperature is 284 K.
The volume of state 1 is 800.0 cm3. The compression ratio for the
Diesel cycle is 12 and cut-off-ratio is 1.95. Determine: a) the
heat addition, in kJ kJ b) the net work, in kJ kJ c) the thermal
efficiency % d) the mean effective pressure, in kPa kPa
At the beginning of the compression process...
A Diesel cycle has a compression ratio of 22 and begins its compression at 80 kPa and 15 °C. The maximum cycle temperature is 1200°C. Utilize air-standard assumptions. The properties of air at room t...
A Diesel cycle has a compression ratio of 22 and begins its compression at 80 kPa and 15 °C. The maximum cycle temperature is 1200°C. Utilize air-standard assumptions. The properties of air at room temperature are R-0.287 kPa-m3/kg-K Cp 1.005 kJ/kg-K, cv0.718 kJ/kg-K, and k 1.4. Determine the thermal efficiency of this cycle using variable specific heats at room temperature. Use data from the tables The thermal efficiency of this cycle is
A Diesel cycle has a compression ratio of...
A cold standard air Diesel cycle has a compression ratio of 18. The heat transferred to...
A cold standard air Diesel cycle has a compression ratio of 18. The heat transferred to the working fluid per cycle is 2000 kJ / kg. At the beginning of the compression process cycle, the pressure is 100 kPa and the temperature is 25 ° C. Determine (a) The pressure in each state of the cycle, (b) The cut-off ratio, (c) The thermal efficiency, (d) The net work per unit of mass and (e) the effective mean pressure.
9.31 The state at the beginning of compression of an air-standard Diesel cycle is fixed by...
9.31 The state at the beginning of compression of an air-standard Diesel cycle is fixed by pi = 100 kPa and T1 = 310 K. The compression ratio is 15. For cutoff ratios rc = 2, determine (a) the maximum temperature, in K. (b) the pressure at the end of the expansion, in kPa. (c) the net work per unit mass of air, in kJ/kg. (d) the thermal efficiency.
Otto cycle
The air standard Otto cycle has the compression ratio as 8.5. The inlet of the compression has pressure 1 bar and temperature 300 K. The heat is added to the cycle is 1400 kJ/kg. Determine the mean effective pressure in kPa. Assume the CP, CV, and y for air as 1.005kJ/kg, 0.718 kJ/kg, and 1.4, respectively.
An air-standard cycle is executed within a closed piston–cylinder system, and it consists of the following...
An air-standard cycle is
executed within a closed piston–cylinder system, and it consists of
the following three processes: 1–2 V = Constant heat addition from
100 kPa and 30°C to 850 kPa 2–3 Isothermal expansion until V3 =
8.5V2 3–1 P = Constant heat rejection to the initial state Assume
air has constant properties with cv = 0.718 kJ/kg·K, cp = 1.005
kJ/kg·K, R = 0.287 kJ/kg·K, and k = 1.4.
Required information An air-standard cycle is executed within a...
Required information An air-standard Diesel cycle has a compression ratio of 16 and a cutoff ratio of 2. At the beginning of the compression process, air is at 103 kPa and 27℃. Assume constant specific heats. The properties of air at room temperature are Cp-1.005 kJ/kg-K, cv-0718 kJ/kg.K, R= 0.287 kJ/kg-K, and k = 1.4 Determine the mean effective pressure The mean effective pressure is「 kPa.
Required information An air-standard Diesel cycle has a compression ratio of 16 and a...
Q1. At the beginning of the compression process of an air-standard Diesel cycle operating with a compression ratio of 18, the temperature is 300 K and the pressure is 0.1 MPa. The cutoff ratio (pre-expansion ratio) for the cycle is 2. Determine: (a) the temperature and pressure at the end of each process of the cycle, (b) the thermal efficiency, (c) the mean effective pressure, in MPa.
A Diesel cycle has a compression ratio of 22 and begins its compression at 80 kPa and 15 C. The maximum cycle temperature is 1200°C, Utilize air-standard assumptions. The properties of air at room temperature are R: 0287 The 3 kPam2kg K p 100derd kPa-m /kg-K, Cpー1.005 kJ/kg-K, cv-0718 kJ/kg.K. and k= 1.4 Determine the thermal efficiency of this cycle using variable specific heats at room temperature. Use data from the tables The thermal efficiency of this cycle is 68.97...
At the beginning of the compression process of an air standard
Diesel cycle, the pressure is 109 kPa and the temperature is 284 K.
The volume of state 1 is 800.0 cm3. The compression ratio for the
Diesel cycle is 12 and cut-off-ratio is 1.95. Determine: a) the
heat addition, in kJ kJ b) the net work, in kJ kJ c) the thermal
efficiency % d) the mean effective pressure, in kPa kPa
At the beginning of the compression process...
A Diesel cycle has a compression ratio of 22 and begins its compression at 80 kPa and 15 °C. The maximum cycle temperature is 1200°C. Utilize air-standard assumptions. The properties of air at room temperature are R-0.287 kPa-m3/kg-K Cp 1.005 kJ/kg-K, cv0.718 kJ/kg-K, and k 1.4. Determine the thermal efficiency of this cycle using variable specific heats at room temperature. Use data from the tables The thermal efficiency of this cycle is
A Diesel cycle has a compression ratio of...
9.31 The state at the beginning of compression of an air-standard Diesel cycle is fixed by pi = 100 kPa and T1 = 310 K. The compression ratio is 15. For cutoff ratios rc = 2, determine (a) the maximum temperature, in K. (b) the pressure at the end of the expansion, in kPa. (c) the net work per unit mass of air, in kJ/kg. (d) the thermal efficiency.
An air-standard cycle is
executed within a closed piston–cylinder system, and it consists of
the following three processes: 1–2 V = Constant heat addition from
100 kPa and 30°C to 850 kPa 2–3 Isothermal expansion until V3 =
8.5V2 3–1 P = Constant heat rejection to the initial state Assume
air has constant properties with cv = 0.718 kJ/kg·K, cp = 1.005
kJ/kg·K, R = 0.287 kJ/kg·K, and k = 1.4.
Required information An air-standard cycle is executed within a...
