A 150kg uniform beam is attached to a vertical wall at one end and is supported by a cable at the other end. a) Calculate the magnitude of the vertical component of the force that the wall exerts on the left of the beam if the angle between the cable and

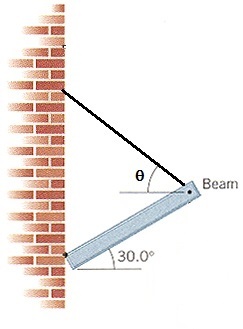

A 150kg uniform beam is attached to a vertical wall at one end and is supported by a cable at the other end. a) Calculate the magnitude of the vertical component of the force that the wall exerts on the left of the beam if the angle between the cable and the horizontal is theta = 42 degrees.
Homework Answers
Request Answer!
We need at least 9 more requests to produce the answer.
1 / 10 have requested this problem solution
The more requests, the faster the answer.
Add Answer to:
A 150kg uniform beam is attached to a vertical wall at one end and is supported by a cable at the other end. a) Calculate the magnitude of the vertical component of the force that the wall exerts on the left of the beam if the angle between the cable and
A 1310 N uniform beam is attached to a vertical wall at one end and is...
A 1310 N uniform beam is attached to a vertical wall at one end and is supported by a cable at the other end. A W = 1970 N crate hangs from the far end of the beam. a) Calculate the magnitude of the horizontal component of the force that the wall exerts on the left end of the beam if the angle between the cable and horizontal is θ = 47°. A mass m1 = 18.5 kg is connected...
A 1400-N uniform beam is attached to a vertical wall at one end and is supported...
A 1400-N uniform beam is attached to a vertical wall at one end and is supported by a cable at the other end. A 1960-N crate hangs from the far end of the beam. Using the data shown in the figure, find (a) the magnitude of the tension in the wire and the magnitudes of the (b) horizontal and (c) vertical components of the force that the wall exerts on the left end of the beam.
A 1080-N uniform beam is attached to a vertical wall at one end and is supported...
A 1080-N uniform beam is attached to a vertical wall at one end and is supported by a cable at the other end. A 1960-N crate hangs from the far end of the beam. Using the data shown in the figure, find (a) the magnitude of the tension in the wire and the magnitudes of the (b) horizontal and (c) vertical components of the force that the wall exerts on the left end of the beam. 50.0 / Beam 1960...
a 1165-N uniform beam is attached to a vertical wall at one end... A 1165-N uniform...
a 1165-N uniform beam is attached to a vertical wall at one
end...
A 1165-N uniform beam is attached to a vertical wall at one end and is supported by a cable at the other end. A W 1875-N crate hangs from the far end of the beam. Using the data shown in the drawing, find the following. 50.0 Beam 30.0 (a) the magnitude of the tension in the wire (b) the magnitudes of the horizontal and vertical components of...
The drawing shows a uniform horizontal beam attached to a vertical wall by a frictionless hinge...
The drawing shows a uniform horizontal beam attached to a vertical wall by a frictionless hinge and supported from below at an angle 0 = 42° by a brace that is attached to a pin. The beam has a weight of 350 N. Three additional forces keep the beam in equilibrium. The brace applies a force to the right end of the beam that is directed upward at the angle with respect to the horizontal. The hinge applies a force...
A 4-m long, 150-kg steel beam is attached to a wall with one end connected to a hinge that allows the beam to rotate up and down. The other end of the beam is held in a horizontal position with a cable that makes a 27° angle with the beam and is attached
A 4-m long, 150-kg steel beam is attached to a wall with one end connected to a hinge that allows the beam to rotate up and down. The other end of the beam is held in a horizontal position with a cable that makes a 27° angle with the beam and is attached to the wall. A mass of 75 kg is hung from the beam 3 meters away from the hinge (see (Figure 2)). What is the vertical component of...
a sign of mass 20.0 kg is supported at the end of a uniform beam of...
a sign of mass 20.0 kg is supported at the end of a uniform beam of mass 10.0 kg and length 2.00!m. the beam makes an angle of 30.0 degrees with the horizontal. a wire is attached from the end of the rod to a point on the wall and makes an angle if 20.0 degrees to the horizontal. what is the tension of the wire. what are the magnitudes of the horizontal and vertical components of the reaction force...
Stuggling on this physis question! The drawing shows a uniform horizontal beam attached to a vertical...
Stuggling on this physis question!
The drawing shows a uniform horizontal beam attached to a vertical wall by a frictionless hinge and supported from below at an angle theta = 35degree by a brace that is attached to a pin. The beam has a weight of 342 N. Three additional forces keep the beam in equilibrium. The brace applies a force P to the right end of the beam that is directed upward at the angle theta with respect to...
The drawing shows a uniform horizontal beam attached to a vertical wall by a frictionless hinge...
The drawing shows a uniform horizontal beam attached to a vertical wall by a frictionless hinge and supported from below at an angle ? = 44o by a brace that is attached to a pin. The beam has a weight of 338 N. Three additional forces keep the beam in equilibrium. The brace applies a force P ¯ to the right end of the beam that is directed upward at the angle ? with respect to the horizontal. The hinge...
A 202 kg uniform, beam is hinged at one end and at the other is supported...
A 202 kg uniform, beam is hinged at one end and at the other is supported by a cable that is at 23 degrees to the left of the vertical. The beam is 2.8 m long and is at 6 degrees above the horizontal. Calculate the tension in the cable (in N)
A 1080-N uniform beam is attached to a vertical wall at one end and is supported by a cable at the other end. A 1960-N crate hangs from the far end of the beam. Using the data shown in the figure, find (a) the magnitude of the tension in the wire and the magnitudes of the (b) horizontal and (c) vertical components of the force that the wall exerts on the left end of the beam. 50.0 / Beam 1960...
a 1165-N uniform beam is attached to a vertical wall at one
end...
A 1165-N uniform beam is attached to a vertical wall at one end and is supported by a cable at the other end. A W 1875-N crate hangs from the far end of the beam. Using the data shown in the drawing, find the following. 50.0 Beam 30.0 (a) the magnitude of the tension in the wire (b) the magnitudes of the horizontal and vertical components of...
The drawing shows a uniform horizontal beam attached to a vertical wall by a frictionless hinge and supported from below at an angle 0 = 42° by a brace that is attached to a pin. The beam has a weight of 350 N. Three additional forces keep the beam in equilibrium. The brace applies a force to the right end of the beam that is directed upward at the angle with respect to the horizontal. The hinge applies a force...
Stuggling on this physis question!
The drawing shows a uniform horizontal beam attached to a vertical wall by a frictionless hinge and supported from below at an angle theta = 35degree by a brace that is attached to a pin. The beam has a weight of 342 N. Three additional forces keep the beam in equilibrium. The brace applies a force P to the right end of the beam that is directed upward at the angle theta with respect to...
