Derive the state transition table and D flip-flop input equations for a decremental counter that counts...

Derive the state transition table and D flip-flop input equations for a decremental counter that counts from 7 to 1 and then repeats.

0 0
Add a comment Improve this question Transcribed image text
Answer #1

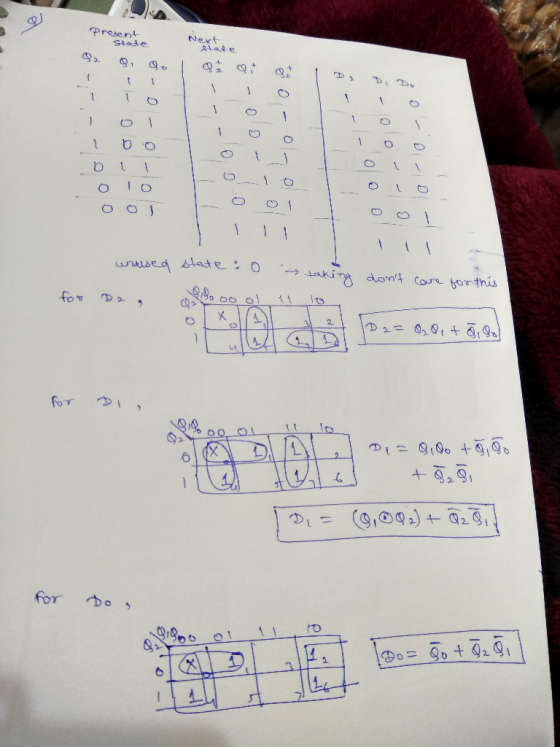

presen 24a4 e b O bL OI fowD 6 123let me know if you need further help.
