1. There are two circuits in the following Truth Table (each is part of a Full...

1. There are two circuits in the following Truth Table (each is part of a Full Adder). Using Karnaugh Maps produce the circuit for Sum (S) given the inputs A, B, and Cin. A) Show the Karnaugh Map. B) Show the circuit.

A B Cin SUM(S) Cout
0 0 0 0 0
0 0 1 1 0
0 1 0 1 0
0 1 1 0 1
1 0 0 1 0
1 0 1 0 1
1 1 0 0 1
1 1 1 1 1

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

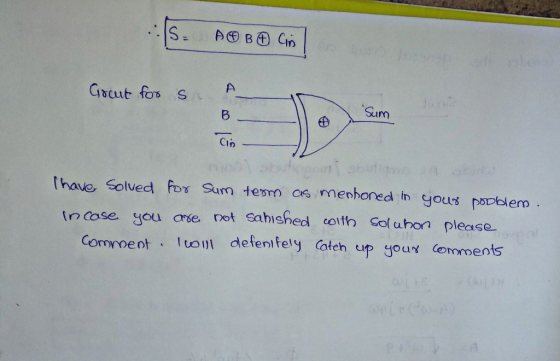

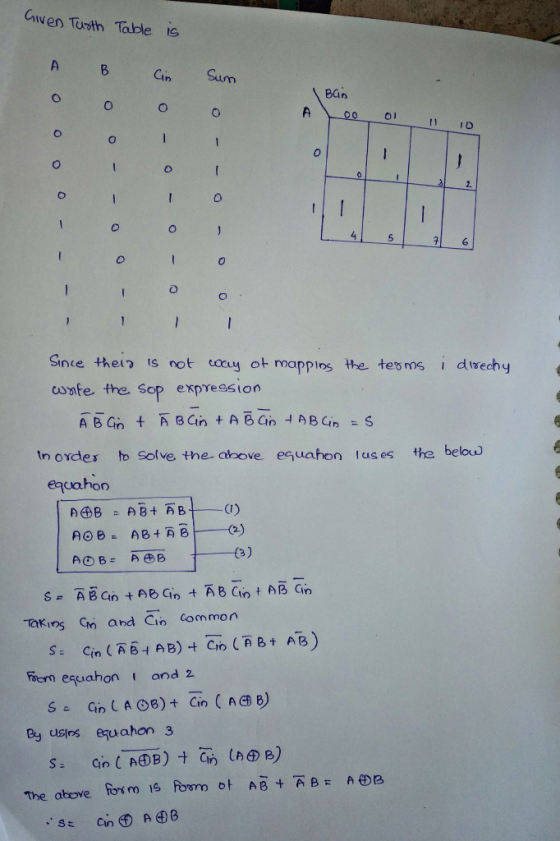

Gout fos s 8 Sum Cin Thave, Solved fos Sum tesro os menhored tn yous popblem incose you arse not eahished coth Sol uhon pleas
