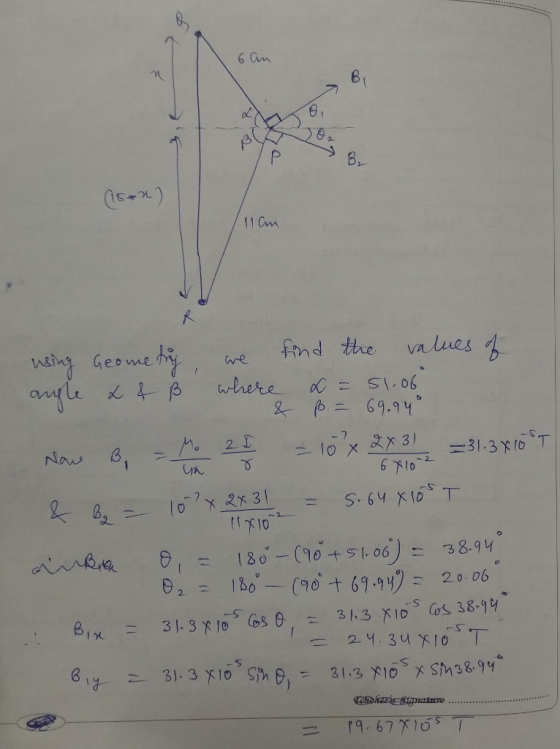

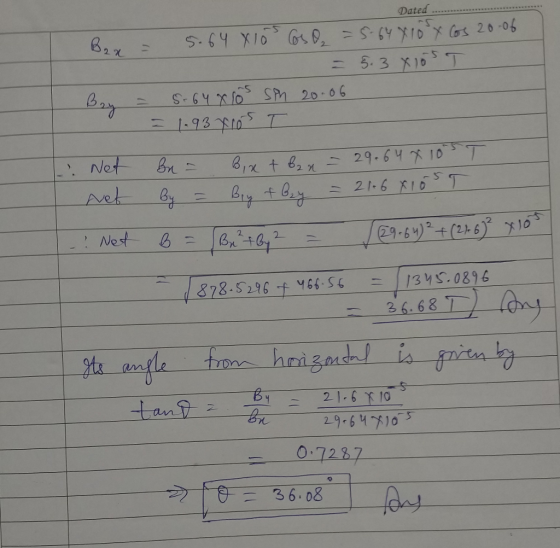

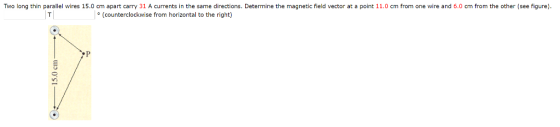

Two long thin parallel wires 15.0 cm apart carry 31 A currents in the same directions....
Two long thin parallel wires 13.0 cm apart carry 29-A currents in the same direction. 1)...
Two long thin parallel wires 13.0 cm apart carry 29-A currents
in the same direction.
1) Determine the magnitude of the magnetic field vector at a
point 10.0 cm from one wire and 6.0 cm from the other
2) Determine the direction of the magnetic field vector at that
point. Example: θ= ... degrees, measured counterclockwise from the
positive x axis
13.0 cm 10.0 cm $6.0 cm
Two long thin parallel wires 13.0 cm apart carry 24-Acurrents in the same direction. Part A:...
Two long thin parallel wires 13.0 cm apart carry 24-Acurrents in
the same direction.
Part A:
Determine the magnitude of the magnetic field vector at a point
10.0 cm from one wire and 6.0 cm from the other (Figure 1) .
Part B:
Determine the direction of the magnetic field vector at that
point.
degrees, measured counterclockwise from the positive x
axis
Part A Periodic Table Constants Two long thin parallel wires 13.0 cm apart carry 35 A currents in the same direction. D...
Part A Periodic Table Constants Two long thin parallel wires 13.0 cm apart carry 35 A currents in the same direction. Determine the magnitude of the magnetic field vector at a point 10.0 cm from one wire and 6.0 cm from the other (see the figure(Figure 1)). Express your answer using two significant figures. nνα ΑΣφ T Bi Request Answer Submit Part B 1 of 1 Figure Determine the direction of the magnetic field vector at a point 10.0 cm...
Two long, straight parallel wires are 10.0 cm apart and carry 3.20 A currents in the...
Two long, straight parallel wires
are 10.0 cm apart and carry 3.20 A currents in the same direction
(see the figure).
Find the direction of the magnetic field at point P1, midway
between the wires.
Find the magnitude of the magnetic field at point P1, midway
between the wires.
Find the direction of the magnetic field at point P2, 25.0 cm to
the right of P1.
Find the magnitude of the magnetic field at point P2, 25.0 cm to
the...
Two long thin parallel wires 13.0cmapart carry 35 Acurrents in the same direction....
Two long thin parallel wires 13.0cmapart carry 35 Acurrents in the same direction.Determine the magnetic field vector at a point
10.0 cmfrom one wire and 6.0 cmfrom the other.13.0 cm 10,0 cm 10.0 cm +
Two long, thin parallel wires are placed 12.0 cm apart, as shown below. Each wire carries...
Two long, thin parallel wires are placed 12.0 cm apart, as shown below. Each wire carries a 28 A current, but the currents are flowing in opposite directions. Determine the magnetic field vector at the point P, which is 10.4 cm from one wire, and 6.0 cm from the other. Please help me find the magnitude and the direction (θ).
The figure below shows two long, parallel wires incross-section, and the currents they carry are...
The figure below shows two long, parallel wires in
cross-section, and the currents they carry are directed out of the
page. The left wire carries a current ofI1 = 2.96 A,and the right carries a current ofI2 = 3.45 A.The two wires are a distanced = 20.0 cmapart. Point P is the same distance d above
the right wire.Assume the +x-direction is to the right, and the
+y-direction is upward.A cross-sectional end view of two parallel wires carrying
current out...
Two long, parallel wires carry currents of I1 = 2.85 A and I2 = 5.45 A...
Two long, parallel wires carry currents of I1 = 2.85 A and I2 =
5.45 A in the directions indicated in the figure below, where d =
19.5 cm. (Take the positive x direction to be to the right.)
(a) Find the magnitude and direction of the magnetic field at a
point midway between the wires.
magnitude______ μT
direction________ ° counterclockwise from the +x axis
(b) Find the magnitude and direction of the magnetic field at
point P, located d =...
Two long, straight, parallel wires are 10.0 cm apart and carry 5.00 A currents in the...
Two long, straight, parallel wires are 10.0 cm apart and carry 5.00 A currents in the same direction (see Figure 1)). Find the direction of the magnetic field at point P.midway between the wires. The field is zero. Previous Answers Correct Part B Find the magnitude of the magnetic field at point P.midway between the wires. Express your answer in telsas to three significant figures. AED OR? B, Submit Request Answer Part C Find the direction of the magnetic field...
Two long, straight, parallel wires carry currents of 6 A and 8 A in the same...
Two long, straight, parallel wires carry currents of 6 A and 8 A in the same direction. If the two wires are 5 cm apart, what is the distance from the 6 A wire to the point where the magnetic field is zero?
Two long thin parallel wires 13.0 cm apart carry 29-A currents
in the same direction.
1) Determine the magnitude of the magnetic field vector at a
point 10.0 cm from one wire and 6.0 cm from the other
2) Determine the direction of the magnetic field vector at that
point. Example: θ= ... degrees, measured counterclockwise from the
positive x axis
13.0 cm 10.0 cm $6.0 cm
Two long thin parallel wires 13.0 cm apart carry 24-Acurrents in
the same direction.
Part A:
Determine the magnitude of the magnetic field vector at a point
10.0 cm from one wire and 6.0 cm from the other (Figure 1) .
Part B:
Determine the direction of the magnetic field vector at that
point.
degrees, measured counterclockwise from the positive x
axis
Part A Periodic Table Constants Two long thin parallel wires 13.0 cm apart carry 35 A currents in the same direction. Determine the magnitude of the magnetic field vector at a point 10.0 cm from one wire and 6.0 cm from the other (see the figure(Figure 1)). Express your answer using two significant figures. nνα ΑΣφ T Bi Request Answer Submit Part B 1 of 1 Figure Determine the direction of the magnetic field vector at a point 10.0 cm...
Two long, straight parallel wires
are 10.0 cm apart and carry 3.20 A currents in the same direction
(see the figure).
Find the direction of the magnetic field at point P1, midway
between the wires.
Find the magnitude of the magnetic field at point P1, midway
between the wires.
Find the direction of the magnetic field at point P2, 25.0 cm to
the right of P1.
Find the magnitude of the magnetic field at point P2, 25.0 cm to
the...
Two long thin parallel wires 13.0cmapart carry 35 Acurrents in the same direction.Determine the magnetic field vector at a point
10.0 cmfrom one wire and 6.0 cmfrom the other.13.0 cm 10,0 cm 10.0 cm +
The figure below shows two long, parallel wires in
cross-section, and the currents they carry are directed out of the
page. The left wire carries a current ofI1 = 2.96 A,and the right carries a current ofI2 = 3.45 A.The two wires are a distanced = 20.0 cmapart. Point P is the same distance d above
the right wire.Assume the +x-direction is to the right, and the
+y-direction is upward.A cross-sectional end view of two parallel wires carrying
current out...
Two long, parallel wires carry currents of I1 = 2.85 A and I2 =
5.45 A in the directions indicated in the figure below, where d =
19.5 cm. (Take the positive x direction to be to the right.)
(a) Find the magnitude and direction of the magnetic field at a
point midway between the wires.
magnitude______ μT
direction________ ° counterclockwise from the +x axis
(b) Find the magnitude and direction of the magnetic field at
point P, located d =...
Two long, straight, parallel wires are 10.0 cm apart and carry 5.00 A currents in the same direction (see Figure 1)). Find the direction of the magnetic field at point P.midway between the wires. The field is zero. Previous Answers Correct Part B Find the magnitude of the magnetic field at point P.midway between the wires. Express your answer in telsas to three significant figures. AED OR? B, Submit Request Answer Part C Find the direction of the magnetic field...
