Question

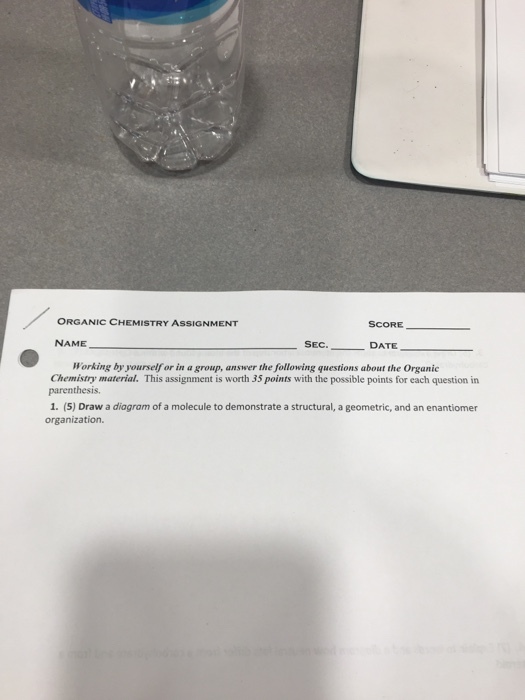

ORGANIC CHEMISTRY ASSIGNMENT SCORE- NAME SEC DATE Working by yourself or in a group, answer the following questions about the Organic Chemistry material. This assignment is worth 35 points with the possible points for each question in parenthesis. 1. (5) Draw a diagram of a molecule to demonstrate a structural, a geometric, and an enantiomer organization.

Answer 1

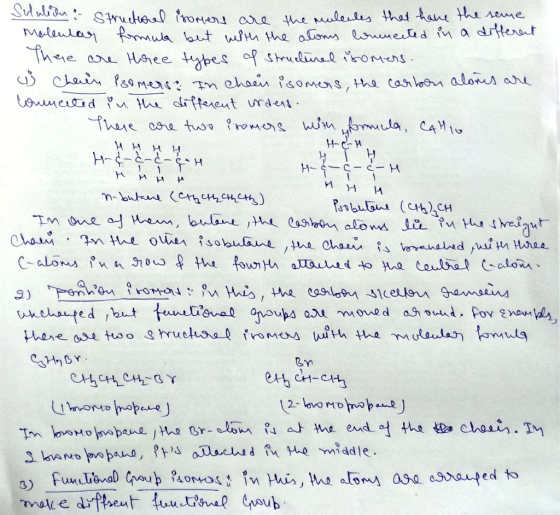

Structural isomers are the molecules that have the same molecular formula but with the atoms formatted in a different there are three types of structural isomers. (i) Chain isomers: In chain isomers, the carbon atoms are connected in the different orders. These are two isomers with formula, C_4 H_10 n-butane (Ch_3 CH_2 CH_2 CH_3) isobutene (CH_3)_3 CH In one of them, butane, the carbon atoms die in the straight chain. In the other isobutene, the chain is branched, with three C-atoms in a row & the fourth attached to the central C-atom. 2) portion isomers: in this, the carbon Skelton remains unchanged, but functional groups are moved around. For examples, these are two structural isomers with the molecular formula C_3H_7Br. CH_3 CH_2 Ch_2-Br (1 bromopropane) (2-bromopropane) In bromopropane, the Br-atom is at the end of the chain. In 2 bromopropane, it's attached in the middle. 3) Functional Group isomers: in
