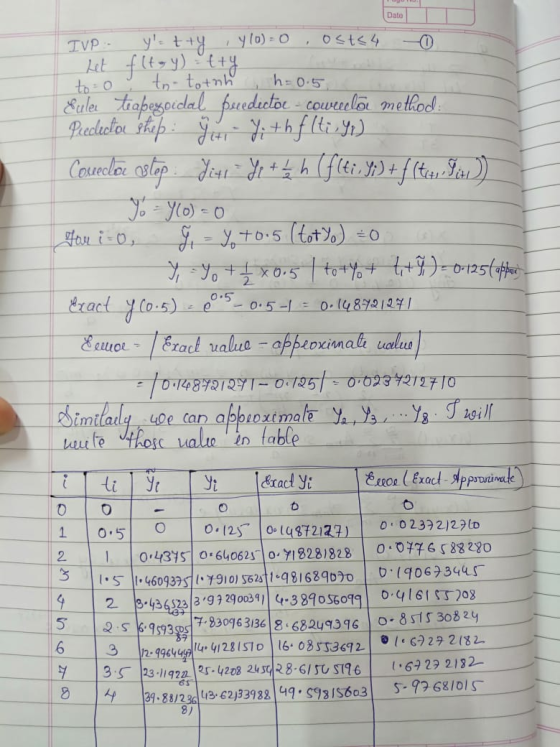

For the IVP:

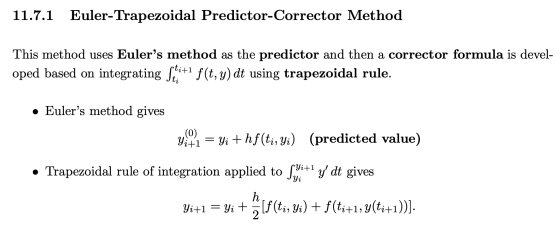

Apply Euler-trapezoidal predictor-corrector method to the IVP to approximate y(2), by choosing two values of h, for which the iteration converges. (Note: True Solution: y(t) = et − t − 1). Present your results in tabular form. Your tabulated results must contain the exact value, approximate value by the Euler-trapezoidal predictor-corrector method at t0 = 0, t1 = 0.5, t2 = 1, t3 = 1.5, t4 = 2, t5 = 2.5, t6 = 3, t7 = 3.5 and t8 = 4, and percentage errors.
Use above formula to approximate y(2).
Homework Answers
Add Answer to:
For the IVP:
Apply Euler-trapezoidal predictor-corrector method to the IVP to
approximate y(2), by choosing two...
Apply Euler-trapezoidal predictor-corrector method to the IVP in problem 1 to approximate y(2), by choosing two...
Apply Euler-trapezoidal predictor-corrector method to the IVP in
problem 1 to approximate y(2), by choosing two values of h, for
which the iteration converges. (Don't really need to show work or
do by hand, MATLAB code will work just as well).
1. For the IVP: y' =ty, y(0) = ) 0t 4 Compare the true solution with the approximate solutions from t = 0 to t 4, with the step size h 0.5, obtained by each of the following methods....
Problem 1 Use Euler's method with step size h = 0.5 to approximate the solution of the IVP. 2 dy ...
Problem 1 Use Euler's method with step size h = 0.5 to approximate the solution of the IVP. 2 dy ev dt t 1-t-2, y(1) = 0. Problem 2 Consider the IVP: dy dt (a) Use Euler's method with step size h0.25 to approximate y(0.5) b) Find the exact solution of the IV P c) Find the maximum error in approximating y(0.5) by y2 (d) Calculate the actual absolute error in approximating y(0.5) by /2.
Problem 1 Use Euler's method...
MATLAB help please!!!!! 1. Use the forward Euler method Vi+,-Vi + (ti+1-tinti , yi) for i=0.1, 2, , taking yo-y(to) to be the initial condition, to approximate the solution at 2 of the IVP y'=y-t...
MATLAB help please!!!!!
1. Use the forward Euler method Vi+,-Vi + (ti+1-tinti , yi) for i=0.1, 2, , taking yo-y(to) to be the initial condition, to approximate the solution at 2 of the IVP y'=y-t2 + 1, 0 2, y(0) = 0.5. t Use N 2k, k2,...,20 equispaced timesteps so to 0 and t-1 2) Make a convergence plot computing the error by comparing with the exact solution, y: t (t+1)2 exp(t)/2, and plotting the error as a function of...
Adams Fourth-Order Predictor-Corrector Python ONLY!! Please translate this pseudocode into Python code, thanks!! Adams Fourth-Order Predictor-Corrector...
Adams Fourth-Order Predictor-Corrector Python ONLY!!
Please translate this pseudocode into Python code, thanks!!
Adams Fourth-Order Predictor-Corrector To approximate the solution of the initial-value problem y' = f(t, y), ast<b, y(a) = a, at (N + 1) equally spaced numbers in the interval [a, b]: INPUT endpoints a, b; integer N; initial condition a. OUTPUT approximation w to y at the (N + 1) values of t. Step 1 Set h = (b − a)/N; to = a; Wo = a;...
Part A: What is the (forward) Euler method to solve the IVP y(t) = f(t, y(t))...
Part A: What is the (forward) Euler method to solve the IVP y(t) = f(t, y(t)) te [0.tfinal] y(0) = 1 Part B: Derive the (forward) Euler method using an integration rule or by a Taylor series argument. Part C: Based on that derivation, state the local error (order of accuracy) for this Euler method. Part D: Assume that you apply this Euler method n times over an interval [a,b]. What is the global error here? Show your work.
Given the ODE and initial condition 3. y(0) = 1 dt=yi-y Use the explicit predictor-corrector (Heun's)...
Given the ODE and initial condition 3. y(0) = 1 dt=yi-y Use the explicit predictor-corrector (Heun's) method to manually (i.e. on paper, by hand use Matlab as a calculator, however) integrate this from t -0 to t 1.5 using h 0.5. Describe technique in words and/or equations and fill out the table below with this solution att -[0.0,0.s -you may you i Ss Step 1 Step 2 Step 3 y'(0.0) = y'(0.5) = (0.5)
Solve using Matlab Use the forward Euler method, Vi+,-Vi+(4+1-tinti ,Vi) for i= 0,1,2, , taking yo y(to) to be the initial condition, to approximate the solution at t-2 of the IVP y'=y-t2 + 1, 0-...
Solve using Matlab
Use the forward Euler method, Vi+,-Vi+(4+1-tinti ,Vi) for i= 0,1,2, , taking yo y(to) to be the initial condition, to approximate the solution at t-2 of the IVP y'=y-t2 + 1, 0-t-2, y(0) = 0.5. Use N = 2k, k = 1, 2, , 20 equispaced time steps (so to = 0 and tN-1 = 2). Make a convergence plot, computing the error by comparing with the exact solution, y: t1)2 -exp(t)/2, and plotting the error as...
[7] 1. Consider the initial value problem (IVP) y′(t) = −y(t), y(0) = 1 The solution to this IVP ...
[7] 1. Consider the initial value problem (IVP) y′(t) = −y(t), y(0) = 1 The solution to this IVP is y(t) = e−t [1] i) Implement Euler’s method and generate an approximate solution of this IVP over the interval [0,2], using stepsize h = 0.1. (The Google sheet posted on LEARN is set up to carry out precisely this task.) Report the resulting approximation of the value y(2). [1] ii) Repeat part (ii), but use stepsize h = 0.05. Describe...
) For the IVP y+2y-2-e(0)- Use Euler's Method with a step size of h 5 to...
) For the IVP y+2y-2-e(0)- Use Euler's Method with a step size of h 5 to find approximate values of the solution at t-1 Compare them to the exact values of the solution at these points.
(a)Use Euler method to find the difference equation for the following IVP (initial value problem)...
i really just need help with part c and d. thank you!
(a)Use Euler method to find the difference equation for the following IVP (initial value problem). Please Type your work. (Due on March 5th) dt(, yo 0.01 (b) Calculate the numerical solution for 0 s t S T using k and M T where k = and T = 9 for M 32,64, 128. Using programming languages such as Ct+, MATLAB, eto. (c) Graph those numerical solutions versus exact...
Apply Euler-trapezoidal predictor-corrector method to the IVP in
problem 1 to approximate y(2), by choosing two values of h, for
which the iteration converges. (Don't really need to show work or
do by hand, MATLAB code will work just as well).
1. For the IVP: y' =ty, y(0) = ) 0t 4 Compare the true solution with the approximate solutions from t = 0 to t 4, with the step size h 0.5, obtained by each of the following methods....
Problem 1 Use Euler's method with step size h = 0.5 to approximate the solution of the IVP. 2 dy ev dt t 1-t-2, y(1) = 0. Problem 2 Consider the IVP: dy dt (a) Use Euler's method with step size h0.25 to approximate y(0.5) b) Find the exact solution of the IV P c) Find the maximum error in approximating y(0.5) by y2 (d) Calculate the actual absolute error in approximating y(0.5) by /2.
Problem 1 Use Euler's method...
MATLAB help please!!!!!
1. Use the forward Euler method Vi+,-Vi + (ti+1-tinti , yi) for i=0.1, 2, , taking yo-y(to) to be the initial condition, to approximate the solution at 2 of the IVP y'=y-t2 + 1, 0 2, y(0) = 0.5. t Use N 2k, k2,...,20 equispaced timesteps so to 0 and t-1 2) Make a convergence plot computing the error by comparing with the exact solution, y: t (t+1)2 exp(t)/2, and plotting the error as a function of...
Adams Fourth-Order Predictor-Corrector Python ONLY!!
Please translate this pseudocode into Python code, thanks!!
Adams Fourth-Order Predictor-Corrector To approximate the solution of the initial-value problem y' = f(t, y), ast<b, y(a) = a, at (N + 1) equally spaced numbers in the interval [a, b]: INPUT endpoints a, b; integer N; initial condition a. OUTPUT approximation w to y at the (N + 1) values of t. Step 1 Set h = (b − a)/N; to = a; Wo = a;...
Part A: What is the (forward) Euler method to solve the IVP y(t) = f(t, y(t)) te [0.tfinal] y(0) = 1 Part B: Derive the (forward) Euler method using an integration rule or by a Taylor series argument. Part C: Based on that derivation, state the local error (order of accuracy) for this Euler method. Part D: Assume that you apply this Euler method n times over an interval [a,b]. What is the global error here? Show your work.
Given the ODE and initial condition 3. y(0) = 1 dt=yi-y Use the explicit predictor-corrector (Heun's) method to manually (i.e. on paper, by hand use Matlab as a calculator, however) integrate this from t -0 to t 1.5 using h 0.5. Describe technique in words and/or equations and fill out the table below with this solution att -[0.0,0.s -you may you i Ss Step 1 Step 2 Step 3 y'(0.0) = y'(0.5) = (0.5)
Solve using Matlab
Use the forward Euler method, Vi+,-Vi+(4+1-tinti ,Vi) for i= 0,1,2, , taking yo y(to) to be the initial condition, to approximate the solution at t-2 of the IVP y'=y-t2 + 1, 0-t-2, y(0) = 0.5. Use N = 2k, k = 1, 2, , 20 equispaced time steps (so to = 0 and tN-1 = 2). Make a convergence plot, computing the error by comparing with the exact solution, y: t1)2 -exp(t)/2, and plotting the error as...
) For the IVP y+2y-2-e(0)- Use Euler's Method with a step size of h 5 to find approximate values of the solution at t-1 Compare them to the exact values of the solution at these points.
i really just need help with part c and d. thank you!
(a)Use Euler method to find the difference equation for the following IVP (initial value problem). Please Type your work. (Due on March 5th) dt(, yo 0.01 (b) Calculate the numerical solution for 0 s t S T using k and M T where k = and T = 9 for M 32,64, 128. Using programming languages such as Ct+, MATLAB, eto. (c) Graph those numerical solutions versus exact...
