Iterative Finite Difference Method:
Consider this problem in 2D. A metal square encloses an evacuated region. A tiny metal patch is place at the center and held at a potential 8Volts higher that the outer metal.
A metal square encloses an evacuated region. A tiny metal patch is place at the center and held at a potential 8Volts higher that the outer metal.

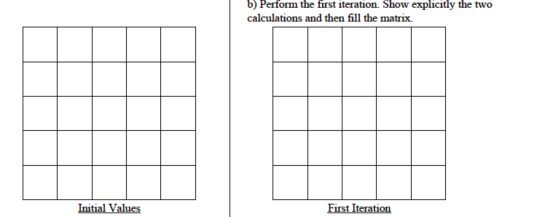

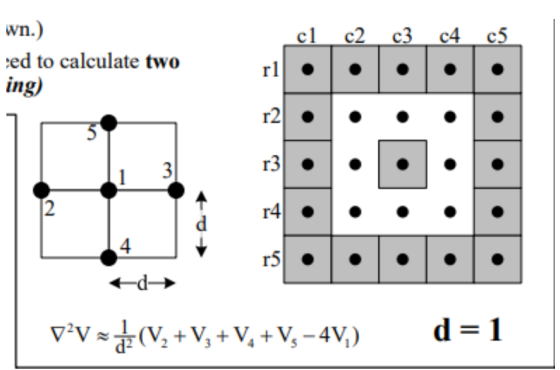

Using the finite-difference methodanalyse the voltage at the grid points shown below.(Label rows and columns as shown.)
From the symmetry of this problem you only need to calculate two values per iteration.
Please show all steps and work, thank you.
