Homework Answers
B) will have the greatest moment of inertia.
Because:
Ia = 1/2 m r^2 ; radius is smaller than all other
Ib = m R^2 its greatest of all.
Ic = 1/2 m R^2 1/2 factor maked it small than b
Irod = m r^2/3 1/3 makes it small than b and c
Add Answer to:

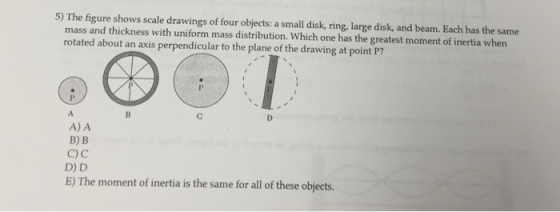

The figure shows scale drawings of four objects: a small disk, ring, large disk, and beam....
