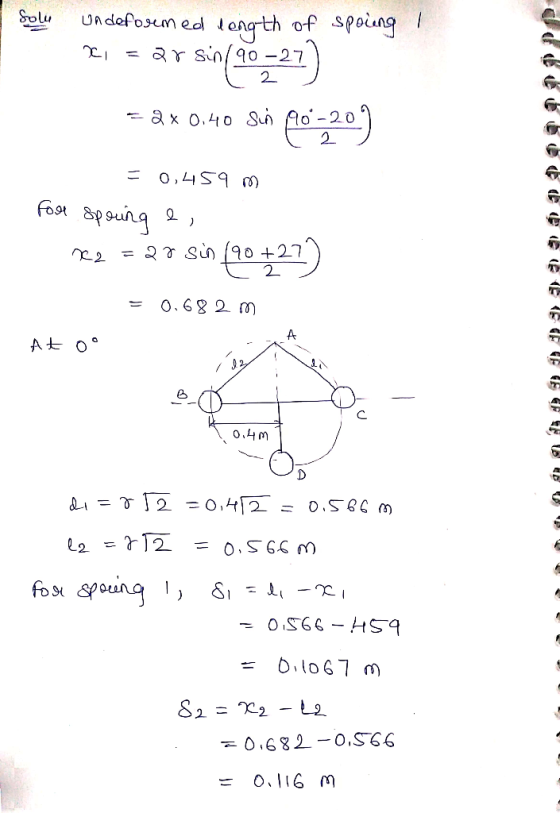

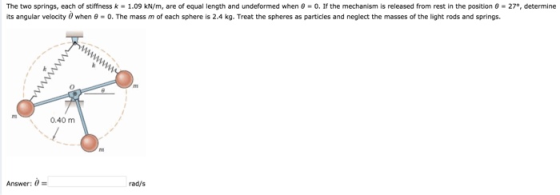

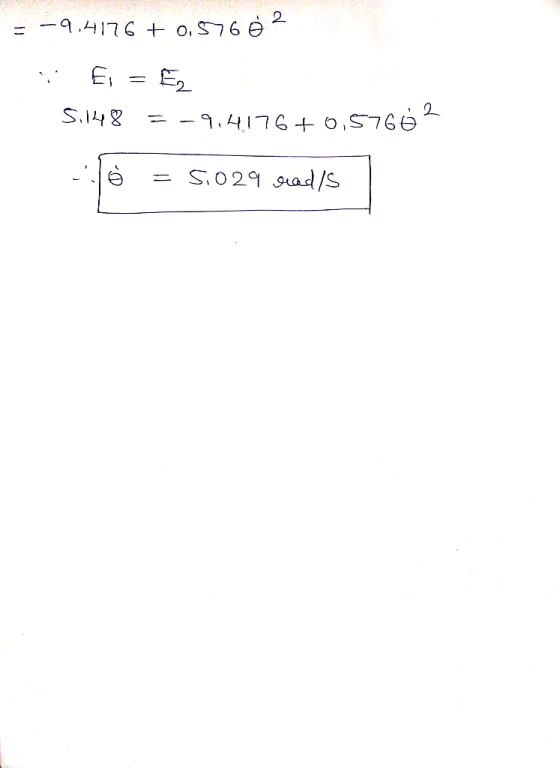

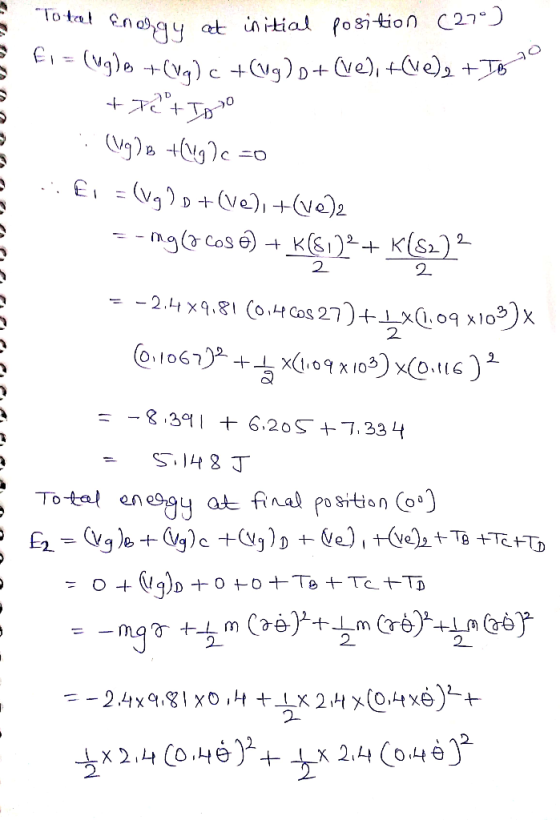

The two springs, each of stiffness k 1.09 kN/m, are of equal length and undeformed when...
The two springs, each of stiffness k = 1.20 kN/m, are of equal length and undeformed...
The
two springs, each of stiffness k = 1.20 kN/m, are of equal length
and undeformed when θ = 0. If the mechanism is released from rest
in the position θ = 32°, determine its angular velocity θ˙ when θ =
0. The mass m of each sphere is 2.6 kg. Treat the spheres as
particles and neglect the masses of the light rods and springs.
wwwww m m 0.17 m m rad/s Answer: wwwww
wwwww m m 0.17 m...
Chapter 3, Problem 3/119 The two springs, each of stiffness k = 1.17 kN/m, are of...
Chapter 3, Problem 3/119 The two springs, each of stiffness k = 1.17 kN/m, are of equal length and undeformed when e = 0. If the mechanism is released from rest in the position = 34°, determine its angular velocity when = 0. The mass m of each sphere is 2.7 kg. Treat the spheres as particles and neglect the masses of the light rods and springs. m 0.26 m m rad/s Answer:
Chapter 3, Problem 3/119 The two springs,...
Chapter 3, Problem 3/119 The two springs, each of stiffness k = 1.24 kN/m, are of...
Chapter 3, Problem 3/119 The two springs, each of stiffness k = 1.24 kN/m, are of equal length and undeformed when 0 = 0. If the mechanism is released from rest in the position 0 = 35°, determine its angular velocity O when 0 = 0. The mass m of each sphere is 4.0 kg. Treat the spheres as particles and neglect the masses of the light rods and springs. m 0.29 m Answer: 0 = rad/s The number of...
The torsional spring at A has a stiffness = 25 N.m/rad and is undeformed when the...
The torsional spring at A has a stiffness = 25 N.m/rad and is undeformed when the uniform 20-kg bars OA and AB are in the vertical position and overlap. If the system is released from rest with 0 = 67°, determine the magnitude of the angular velocity of wheel B when 0 = 25º. The 13-kg wheel at B has a centroidal radius of gyration of 50 mm and is observed to roll without slipping on the horizontal surface. kr...
Two equal length springs having a stiffness of : K A = 300 N/m KB =...
Two equal length springs having a stiffness of : K A = 300 N/m KB = 200 N/m Are nested together in order to form a shock absorber. If a two kilogram block is dropped from an at rest position 0.6 meters above the springs, what is the deformation of the springs when the block momentarily stops at the bottom of its path of travel ?
A wheel-axle assembly is attached to a spring as shown in the figure below. The wheel-axel assembly has a mass of m=3 kg and a radius of gyration about the polar axis of kG=75mm. The spring has a stiffness of k=0.5 kN/m ( Note the units!). The system i
A wheel-axle assembly is attached to a spring as shown in the figure below. The wheel-axel assembly has a mass of m=3 kg and a radius of gyration about the polar axis of kG=75mm. The spring has a stiffness of k=0.5 kN/m ( Note the units!). The system is released from rest with a spring extension of x1=0.2 m. Calculate the maximum angular velocity. Assume friction can be ignored. Provide your answers in rad/s.
Review The spring has a stiffness k = 50 N/m and an unstretched length of 0.3...
Review The spring has a stiffness k = 50 N/m and an unstretched length of 0.3 m It is attached to the 2.8-kg smooth collar and the collar is released from rest at A (@= 0°). The motion occurs in the horizontal plane. Neglect the size of the collar. (Figure 1) Part A Determine the speed of the collar when = 60° Express your answer to three significant figures and include the appropriate units. Figure < 1 of 1 >...
A light, rigid rod of length ℓ=1.00 m joins two particles, with masses m₁=4.00 kg and m₂=3.00 kg
(a) A light, rigid rod of length ℓ=1.00 m joins two particles, with masses m₁=4.00 kg and m₂=3.00 kg, at its ends. The combination rotates in the x y-plane about a pivot through the center of the rod (see figure below). Determine the angular momentum of the system about the origin when the speed of each particle is 7.60 m / s. (Enter the magnitude to at least two decimal places in kg · m² / s.)(b) What If? What...
(a) A light, rigid rod of length ℓ=1.00 m joins two particles, with masses m₁=4.00 kg and m₂=3.00 kg
(a) A light, rigid rod of length ℓ=1.00 m joins two particles, with masses m₁=4.00 kg and m₂=3.00 kg, at its ends. The combination rotates in the x y-plane about a pivot through the center of the rod (see figure below). Determine the angular momentum of the system about the origin when the speed of each particle is 7.60 m / s. (Enter the magnitude to at least two decimal places in kg · m² / s.)(b) What If? What...
A light, rigid rod of length ℓ = 1.00 m joins two particles, with masses m1...
A light, rigid rod of length ℓ = 1.00 m joins two particles, with masses m1 = 4.00 kg and m2 = 3.00 kg, at its ends. The combination rotates in the xy-plane about a pivot through the center of the rod (see figure below). Determine the angular momentum of the system about the origin when the speed of each particle is 5.60 m/s. (Enter the magnitude to at least two decimal places in kg · m2/s.) (a) magnitude direction...
The
two springs, each of stiffness k = 1.20 kN/m, are of equal length
and undeformed when θ = 0. If the mechanism is released from rest
in the position θ = 32°, determine its angular velocity θ˙ when θ =
0. The mass m of each sphere is 2.6 kg. Treat the spheres as
particles and neglect the masses of the light rods and springs.
wwwww m m 0.17 m m rad/s Answer: wwwww
wwwww m m 0.17 m...
Chapter 3, Problem 3/119 The two springs, each of stiffness k = 1.17 kN/m, are of equal length and undeformed when e = 0. If the mechanism is released from rest in the position = 34°, determine its angular velocity when = 0. The mass m of each sphere is 2.7 kg. Treat the spheres as particles and neglect the masses of the light rods and springs. m 0.26 m m rad/s Answer:
Chapter 3, Problem 3/119 The two springs,...
Chapter 3, Problem 3/119 The two springs, each of stiffness k = 1.24 kN/m, are of equal length and undeformed when 0 = 0. If the mechanism is released from rest in the position 0 = 35°, determine its angular velocity O when 0 = 0. The mass m of each sphere is 4.0 kg. Treat the spheres as particles and neglect the masses of the light rods and springs. m 0.29 m Answer: 0 = rad/s The number of...
The torsional spring at A has a stiffness = 25 N.m/rad and is undeformed when the uniform 20-kg bars OA and AB are in the vertical position and overlap. If the system is released from rest with 0 = 67°, determine the magnitude of the angular velocity of wheel B when 0 = 25º. The 13-kg wheel at B has a centroidal radius of gyration of 50 mm and is observed to roll without slipping on the horizontal surface. kr...
Review The spring has a stiffness k = 50 N/m and an unstretched length of 0.3 m It is attached to the 2.8-kg smooth collar and the collar is released from rest at A (@= 0°). The motion occurs in the horizontal plane. Neglect the size of the collar. (Figure 1) Part A Determine the speed of the collar when = 60° Express your answer to three significant figures and include the appropriate units. Figure < 1 of 1 >...
