In an oscillating LC circuit, L = 4.26 mH and C = 2.18 μF. At t...

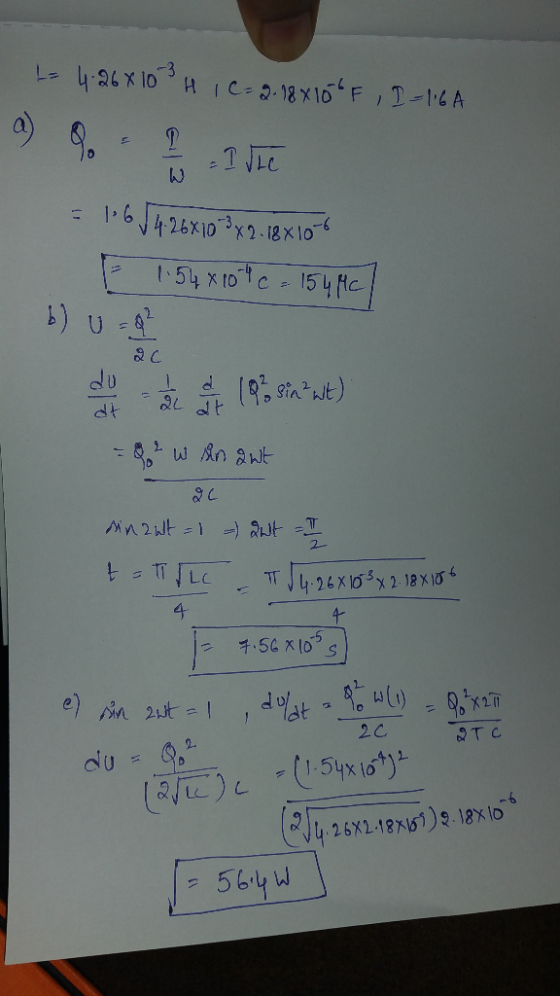

In an oscillating LC circuit, L = 4.26 mH and C = 2.18 μF. At t = 0 the charge on the capacitor is zero and the current is 1.60 A. (a) What is the maximum charge that will appear on the capacitor? (b) At what earliest time t > 0 is the rate at which energy is stored in the capacitor greatest, and (c) what is that greatest rate?
Homework Answers
In an oscillating LC circuit, L = 3.03 mH and C = 3.26 uF. At t...
In an oscillating LC circuit, L = 3.03 mH and C = 3.26 uF. At t = 0 the charge on the capacitor is zero and the current is 2.70 A. (a) What is the maximum charge that will appear on the capacitor? (b) At what earliest time t>O is the rate at which energy is stored in the capacitor greatest, and (c) what is that greatest rate? (a) Number Units (b) Number Units (c) Number Units
In an oscillating LC circuit with L = 48 mH and C = 5.0 μF, the...
In an oscillating LC circuit with L = 48 mH and C = 5.0 μF, the current is initially a maximum. How long will it take before the capacitor is fully charged for the first time?
Chapter 31, Problem 023 GO In an oscillating LC circuit, L = 36.0 mH and C...
Chapter 31, Problem 023 GO In an oscillating LC circuit, L = 36.0 mH and C = 9.63 uF. At time t = 0 the current is 11.8 mA, the charge on the capacitor is 4.21 uc, and the capacitor is charging. What are (a) the total energy in the circuit, (b) the maximum charge on the capacitor, and (c) the maximum current? (d) If the charge on the capacitor is given by q = Q cos(wt + ), what...
31-5 In an oscillating LC circuit, L = 1.64 mH and C = 3.91 ?F. The...
31-5 In an oscillating LC circuit, L = 1.64 mH and C = 3.91 ?F. The maximum charge on the capacitor is 3.09 ?C. Find the maximum current.
An oscillating LC circuit consisting of a 0.83 nF capacitor and a 3.7 mH coil has...
An oscillating LC circuit consisting of a 0.83 nF capacitor and a 3.7 mH coil has a maximum voltage of 3.9 V. What are (a) the maximum charge on the capacitor, (b) the maximum current through the circuit, (c) the maximum energy stored in the magnetic field of the coil?
Chapter 31, Problem 001 An oscillating LC circuit consists of a 88.6 mH inductor and a...
Chapter 31, Problem 001 An oscillating LC circuit consists of a 88.6 mH inductor and a 3.10 μF capacitor. If the maximum charge on the capacitor is 2.87 μC, what are (a) the total energy in the circuit and (b) the maximum current? (a) Number (b) Number Units Units
An oscillating LC circuit consisting of a 2.5 nF capacitor and a 4.1 mH coil has...
An oscillating LC circuit consisting of a 2.5 nF capacitor and a 4.1 mH coil has a maximum volatage of 12.0 V. What is the maximum charge on the capacitor? 3.00×10-8 C What is the maximum current through the circuit? What is the maximum energy stored in the magnetic field of the coil?
SUPE in An 605 oSUniPhys1 315 WA 036 2/20 Submissions Used In an oscillating LC circuit,...
SUPE in An 605 oSUniPhys1 315 WA 036 2/20 Submissions Used In an oscillating LC circuit, L-20.0 mH and C-7.40 μ. At time t = 0 the current is 9.30 ma, the charge on the capacitor is 3.90 μ., and the capacitor is charging. (a) What is the total energy in the circuit? (b) What is the maximum charge on the capacitor? (c) What is the maximum current? (d) If the charge on the capacitor is given by q-Q cos(ut...
Chapter 31, Problem 015 An oscillating LC circuit consisting of a 0.85 nF capacitor and a...
Chapter 31, Problem 015 An oscillating LC circuit consisting of a 0.85 nF capacitor and a 3.7 mH coil has a maximum voltage of 2.7 V. What are (a) the maximum charge on the capacitor, (b) the maximum current through the circuit, (c) the maximum energy stored in the magnetic field of the coil? (a) Number (b) Number (c) Number Units Units Units
An L-C circuit consists of an inductor with an inductance of 65.0 mH and a capacitor...
An L-C circuit consists of an inductor with an inductance of 65.0 mH and a capacitor with a capacitance of 250 μF . The initial charge on the capacitor is 5.50 μC , and the initial current in the inductor is zero. a) What is the maximum voltage across the capacitor? b) What is the maximum current in the inductor? c) What is the maximum energy stored in the inductor? d) When the current in the inductor has half its...
In an oscillating LC circuit, L = 3.03 mH and C = 3.26 uF. At t = 0 the charge on the capacitor is zero and the current is 2.70 A. (a) What is the maximum charge that will appear on the capacitor? (b) At what earliest time t>O is the rate at which energy is stored in the capacitor greatest, and (c) what is that greatest rate? (a) Number Units (b) Number Units (c) Number Units
Chapter 31, Problem 023 GO In an oscillating LC circuit, L = 36.0 mH and C = 9.63 uF. At time t = 0 the current is 11.8 mA, the charge on the capacitor is 4.21 uc, and the capacitor is charging. What are (a) the total energy in the circuit, (b) the maximum charge on the capacitor, and (c) the maximum current? (d) If the charge on the capacitor is given by q = Q cos(wt + ), what...
Chapter 31, Problem 001 An oscillating LC circuit consists of a 88.6 mH inductor and a 3.10 μF capacitor. If the maximum charge on the capacitor is 2.87 μC, what are (a) the total energy in the circuit and (b) the maximum current? (a) Number (b) Number Units Units
SUPE in An 605 oSUniPhys1 315 WA 036 2/20 Submissions Used In an oscillating LC circuit, L-20.0 mH and C-7.40 μ. At time t = 0 the current is 9.30 ma, the charge on the capacitor is 3.90 μ., and the capacitor is charging. (a) What is the total energy in the circuit? (b) What is the maximum charge on the capacitor? (c) What is the maximum current? (d) If the charge on the capacitor is given by q-Q cos(ut...
Chapter 31, Problem 015 An oscillating LC circuit consisting of a 0.85 nF capacitor and a 3.7 mH coil has a maximum voltage of 2.7 V. What are (a) the maximum charge on the capacitor, (b) the maximum current through the circuit, (c) the maximum energy stored in the magnetic field of the coil? (a) Number (b) Number (c) Number Units Units Units
