Draw the shear and bending moment diagrams and the qualitative deflected shape for the beam shown in Fig. 5.10(a)

Question

Question

70 kN
200 kN · m
6 m
4 m
(a)

Civil-Engineering

Answer 1

Answer #1

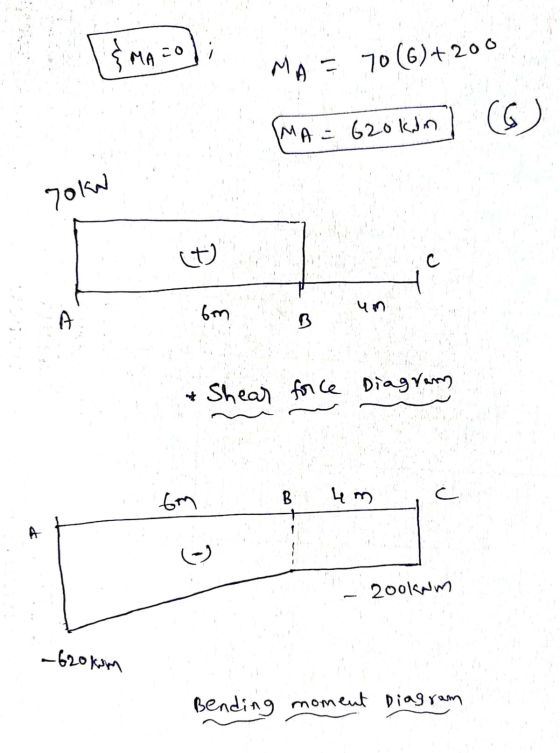

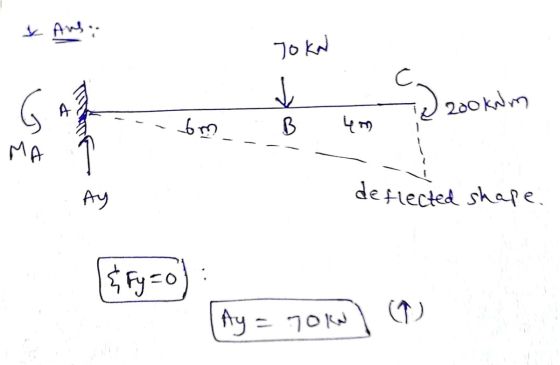

Civil Engineering homework question answer, step 1, image 1

answered by: tothemoon

Answer 2
