Add Answer to:

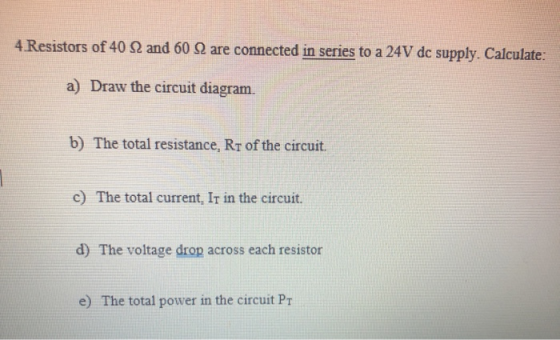

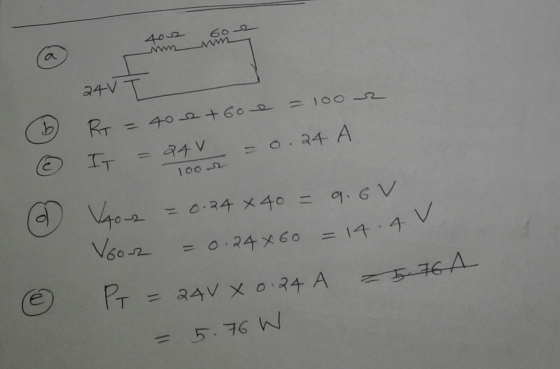

4. Resistors of 40 22 and 60 22 are connected in series to a 24V dc...
A circuit consists of two resistors connected in series with a power supply, as shown in...
A circuit consists of two resistors connected in series with a
power supply, as shown in the figure. The resistance of ?1 is less
than the resistance of ?2.
A series circuit with two resistors R subscript 1 and R
subscript 2. R subscript 1 is connected to the positive terminal of
the power supply, and is the first resistor in the circuit.
Which resistor has the greater current flowing through
it?
?2
?1
The current through each resistor is...
A circuit consists of two resistors connected in series with a power supply, as shown in...
A circuit consists of two resistors connected in series with a power supply, as shown in the figure. The resistance of Ri is greater than the resistance of R2 Which resistor has the greater current flowing through it? O The current through each resistor is the same. Which resistor has the greatest voltage difference across it? The voltage across each resistor is the same.
Suppose you have a DC power supply connected in series with two identical resistors by low-resistance...
Suppose you have a DC power supply connected in series with two identical resistors by low-resistance connecting wires. You set the power supply to a potential difference of 6.0 V. Which of the following statements, if any, hold true? The same potential difference will appear across each resistor. The same amount of current will flow through each resistor. The same amount of current will flow through the power supply as flows through each resistor. The potential difference across each resistor...
Can someone help me finish my prelab please? PROCEDURE (Pre-lab) Series: Draw a schematic diagram of...
Can someone help me finish my prelab please? PROCEDURE (Pre-lab) Series: Draw a schematic diagram of a series circuit consisting of a 24V d-c voltage source and 5 series resistors. Label the resistors R1 through R5. Use standard symbols to represent the voltage source and resistors. Also, make sure to label the REFERENCE (lowest point of potential). The resistor values to be used in the experiment are 220 Ω, 330 Ω, 470 Ω, 560 Ω, and 680 Ω. Label points...
*Answer to first part is 6.0 Volts 4*1.5V= 6 4 AA cells are connected in series....
*Answer to first part is 6.0 Volts
4*1.5V= 6
4 AA cells are connected in series. These make a true battery of 49 volts. This voltage is then connected to three resistors. R1-200 Ω R2-200 Ω R3-800 Ω R1 and R2 are wired in series with each other, and that series combination is wired in parallel with R3 Start by drawing a schematic diagram of the circuit, then proceed to the calculations. Give all answers to 2 sigfigs precision. The...
Circuit Analysis in Electrical Engineering 4. A resistor and a capacitor are connected in series across a 270-V ac supply. When the frequency is 40 Hz, the current flowing in the circuit is 6.25...
Circuit Analysis in Electrical Engineering 4. A resistor and a capacitor are connected in series across a 270-V ac supply. When the frequency is 40 Hz, the current flowing in the circuit is 6.25 A. When the frequency is 50 Hz, the current flowing in the circuit is 7.5 A Calculate the resistance and capacitance of the resistor and capacitor respectively. (99.97 μF; 16.798 Ω) If the resistor and capacitor are now connected in parallel across the 60-Hz supply, calculate...
1. An unknown resistor (R3) is connected in series with the two other resistors (R1= 20...
1. An unknown resistor (R3) is connected in series with the two other resistors (R1= 20 ohm and R2= 25 ohm) across a 15 V battery in the order R1arrowR2arrowR3. An ammeter, which is placed in between the battery and R1, reads a current of 200 mA. a. what is the total resistance of the the circuit? b. what is the resistance of the inknown resistor, R3? c. what is the total current? d. what is the current through each...
8. Suppose the voltage output of a battery is 10.0V in a series circuit, and the...
8. Suppose the voltage output of a battery is 10.0V in a series circuit, and the resistances are Ri=4.0012, R2=5.0092 , and R3=6.092 . Draw a diagram of the circuit, and determine the total resistance, the current through each resistor, the voltage drop across each resistor, and the power dissipated by each resistor and the source. a. 9. Suppose the voltage output of a battery is 10.0V in a parallel circuit, and the resistances are Ri=4.0012, R2=5.0092 , and R3=6.092....
The terminals of a battery are connected across two different resistors in series. Which of the...
The terminals of a battery are connected across two different resistors in series. Which of the following statements are correct? (Select all that apply.) The smaller resistor carries more current The voltage difference across each resistor is the same The voltage difference is greatest across the resistor closest to the positive terminal The larger resistor carries less current The current in each resistor is the same. Need Help? ǐwawaniel kor Techer B. -110 points SerCP11 18.4 P022 In the circuit...
Four resistors having resistances of 20 ohms, 40 ohms, 60 ohms, and 80 ohms are connected...
Four resistors having resistances of 20 ohms, 40 ohms, 60 ohms, and 80 ohms are connected in series across an ideal dc voltage source. If the current through this circuit is 0.50 A, what is the voltage of the voltage source? 20 V 40 V 60 V 80 V 100 V
A circuit consists of two resistors connected in series with a
power supply, as shown in the figure. The resistance of ?1 is less
than the resistance of ?2.
A series circuit with two resistors R subscript 1 and R
subscript 2. R subscript 1 is connected to the positive terminal of
the power supply, and is the first resistor in the circuit.
Which resistor has the greater current flowing through
it?
?2
?1
The current through each resistor is...
A circuit consists of two resistors connected in series with a power supply, as shown in the figure. The resistance of Ri is greater than the resistance of R2 Which resistor has the greater current flowing through it? O The current through each resistor is the same. Which resistor has the greatest voltage difference across it? The voltage across each resistor is the same.
*Answer to first part is 6.0 Volts
4*1.5V= 6
4 AA cells are connected in series. These make a true battery of 49 volts. This voltage is then connected to three resistors. R1-200 Ω R2-200 Ω R3-800 Ω R1 and R2 are wired in series with each other, and that series combination is wired in parallel with R3 Start by drawing a schematic diagram of the circuit, then proceed to the calculations. Give all answers to 2 sigfigs precision. The...
Circuit Analysis in Electrical Engineering 4. A resistor and a capacitor are connected in series across a 270-V ac supply. When the frequency is 40 Hz, the current flowing in the circuit is 6.25 A. When the frequency is 50 Hz, the current flowing in the circuit is 7.5 A Calculate the resistance and capacitance of the resistor and capacitor respectively. (99.97 μF; 16.798 Ω) If the resistor and capacitor are now connected in parallel across the 60-Hz supply, calculate...
8. Suppose the voltage output of a battery is 10.0V in a series circuit, and the resistances are Ri=4.0012, R2=5.0092 , and R3=6.092 . Draw a diagram of the circuit, and determine the total resistance, the current through each resistor, the voltage drop across each resistor, and the power dissipated by each resistor and the source. a. 9. Suppose the voltage output of a battery is 10.0V in a parallel circuit, and the resistances are Ri=4.0012, R2=5.0092 , and R3=6.092....
The terminals of a battery are connected across two different resistors in series. Which of the following statements are correct? (Select all that apply.) The smaller resistor carries more current The voltage difference across each resistor is the same The voltage difference is greatest across the resistor closest to the positive terminal The larger resistor carries less current The current in each resistor is the same. Need Help? ǐwawaniel kor Techer B. -110 points SerCP11 18.4 P022 In the circuit...
