Homework Answers
Note- Comment If You have any doubt..Thank
Add Answer to:

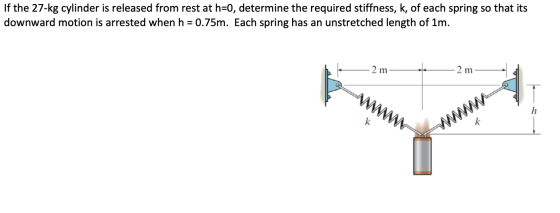

If the 27-kg cylinder is released from rest at h=0, determine the required stiffness, k, of...
b) The cylinder in Fig. B1b has a mass of 20 kg and is released from...
b) The cylinder in Fig. B1b has a mass of 20 kg and is released from rest when h 0. Determine its speed when h 3 m. Each spring has a stiffness k 40 N/m and an unstretched length of 2 m. 2 m Fig. B1b
The cylinder has a mass of 90 kg and is released from rest when h =...
The cylinder has a mass of 90 kg and is released from rest when h = 0. Each spring has a stiffness k = 20 N/m and an unstretched length of 2 m. (Figure 1) Part A Determine the cylinder's speed when h = 4 m. Express your answer to three significant figures and include the appropriate units. View Available Hint(s) μΑ ? Value Units Submit Figure 1 of 1 < Return to Assignment Provide Feedback 2 m 2 m
The cylinder has a mass of 80 kg and is released from rest when h =...
The cylinder has a mass of 80 kg and is released from rest when h = 0. Each spring has a stiffness k = 30 N/m and an unstretched length of 2 m. (Figure 1) Part A Determine the cylinder's speed when h= 3.5 m. Express your answer to three significant figures and include the appropriate units. View Available Hint(s) li μΑ ? Value Units Submit < Return to Assignment Provide Feedback igure 1 of 1 2 m 2 m...
1. The cylinder as a mass of 50 kg and is released from rest when h...
1. The cylinder as a mass of 50 kg and is released from rest when h 0. Determine its speed when h 4 m. The springs each have an unstretched length of 3 m. k- 40 N/m k 40 N/m
Adınız Soyadınız:. Imzaniz Q4-_Select ONLY ONE of the following quistions (a,b or c) and answer. (20...
Adınız Soyadınız:. Imzaniz Q4-_Select ONLY ONE of the following quistions (a,b or c) and answer. (20 points) a) The disk is originally rotating at wo = 10 rad/s . If it is subjected to a constant angular acceleration of 20 rad/s2, determine the magnitudes of the velocity of A and the n and t components of acceleration of point A when the disk undergoes 2 revolutions. b) The springs are with unstretched length of 2.0 m each .If the 20...
dynamics Fundamental Problem 18.9 The 78-kg rod OA is released from rest when 0 = 0°...
dynamics
Fundamental Problem 18.9 The 78-kg rod OA is released from rest when 0 = 0° (Figure 1) Figure 1 of 1 k = 150 N/m 3 m C Part A Determine its angular velocity when 0 = 45°. The spring remains vertical during the motion and is unstretched when 0 = 0°. Express your answer to three significant figures and include the appropriate units. H ? ولما Value Units Submit Request Answer
3. The box of mass m= 0.2 kg is released from rest when = 160 mm....
3. The box of mass m= 0.2 kg is released from rest when = 160 mm. Determine its speed when x = 0, if the spring has a stiffness k= 250 N/m and a free length Lo h = 120 mm. The coefficient of kinetic friction between the box and the plane is u 0.15.
Blocks A and B are released from rest when the spring is unstretched. Blocks A and...
Blocks A and B are released from rest when the spring is unstretched. Blocks A and B have masses ma = 2 kg and mp = 3 kg and the linear spring has stiffness k = 7 N/m. If all sources of friction are negligible, determine the velocity of block A after block Bhas dropped 2.2 m downward. Assuming that A never leaves the horizontal surface shown and the cord connecting A and B is inextensible. The answer needs to...
The cylinder shown below is released from rest with the spring unstretched. How far has it...
The cylinder shown below is released from rest with the spring unstretched. How far has it fallen when it bounces back? k 280 N/m 20 kg
Item 1 The 23-kg rod is released from rest when 0 = 0º (Figure 1) Part...
Item 1 The 23-kg rod is released from rest when 0 = 0º (Figure 1) Part A Determine its angular velocity when 0 = 90°. The spring has an unstretched length of 0.5 m. Express your answer to three significant figures and include the appropriate units. μΑ ? = والنا Value Units Figure 1 of 1 Submit Request Answer 2 m Provide Feedback 1 m k = 100 N/m 2 m B
b) The cylinder in Fig. B1b has a mass of 20 kg and is released from rest when h 0. Determine its speed when h 3 m. Each spring has a stiffness k 40 N/m and an unstretched length of 2 m. 2 m Fig. B1b
The cylinder has a mass of 90 kg and is released from rest when h = 0. Each spring has a stiffness k = 20 N/m and an unstretched length of 2 m. (Figure 1) Part A Determine the cylinder's speed when h = 4 m. Express your answer to three significant figures and include the appropriate units. View Available Hint(s) μΑ ? Value Units Submit Figure 1 of 1 < Return to Assignment Provide Feedback 2 m 2 m
The cylinder has a mass of 80 kg and is released from rest when h = 0. Each spring has a stiffness k = 30 N/m and an unstretched length of 2 m. (Figure 1) Part A Determine the cylinder's speed when h= 3.5 m. Express your answer to three significant figures and include the appropriate units. View Available Hint(s) li μΑ ? Value Units Submit < Return to Assignment Provide Feedback igure 1 of 1 2 m 2 m...
1. The cylinder as a mass of 50 kg and is released from rest when h 0. Determine its speed when h 4 m. The springs each have an unstretched length of 3 m. k- 40 N/m k 40 N/m
Adınız Soyadınız:. Imzaniz Q4-_Select ONLY ONE of the following quistions (a,b or c) and answer. (20 points) a) The disk is originally rotating at wo = 10 rad/s . If it is subjected to a constant angular acceleration of 20 rad/s2, determine the magnitudes of the velocity of A and the n and t components of acceleration of point A when the disk undergoes 2 revolutions. b) The springs are with unstretched length of 2.0 m each .If the 20...
dynamics
Fundamental Problem 18.9 The 78-kg rod OA is released from rest when 0 = 0° (Figure 1) Figure 1 of 1 k = 150 N/m 3 m C Part A Determine its angular velocity when 0 = 45°. The spring remains vertical during the motion and is unstretched when 0 = 0°. Express your answer to three significant figures and include the appropriate units. H ? ولما Value Units Submit Request Answer
3. The box of mass m= 0.2 kg is released from rest when = 160 mm. Determine its speed when x = 0, if the spring has a stiffness k= 250 N/m and a free length Lo h = 120 mm. The coefficient of kinetic friction between the box and the plane is u 0.15.
Blocks A and B are released from rest when the spring is unstretched. Blocks A and B have masses ma = 2 kg and mp = 3 kg and the linear spring has stiffness k = 7 N/m. If all sources of friction are negligible, determine the velocity of block A after block Bhas dropped 2.2 m downward. Assuming that A never leaves the horizontal surface shown and the cord connecting A and B is inextensible. The answer needs to...
The cylinder shown below is released from rest with the spring unstretched. How far has it fallen when it bounces back? k 280 N/m 20 kg
Item 1 The 23-kg rod is released from rest when 0 = 0º (Figure 1) Part A Determine its angular velocity when 0 = 90°. The spring has an unstretched length of 0.5 m. Express your answer to three significant figures and include the appropriate units. μΑ ? = والنا Value Units Figure 1 of 1 Submit Request Answer 2 m Provide Feedback 1 m k = 100 N/m 2 m B
