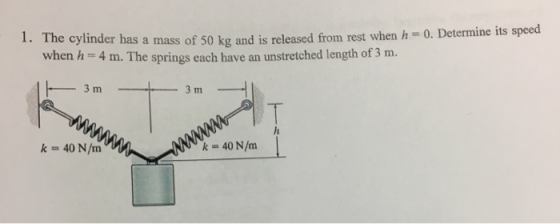

1. The cylinder as a mass of 50 kg and is released from rest when h...

Question

Question

science Advanced-Physics

Answer 1

Answer #1

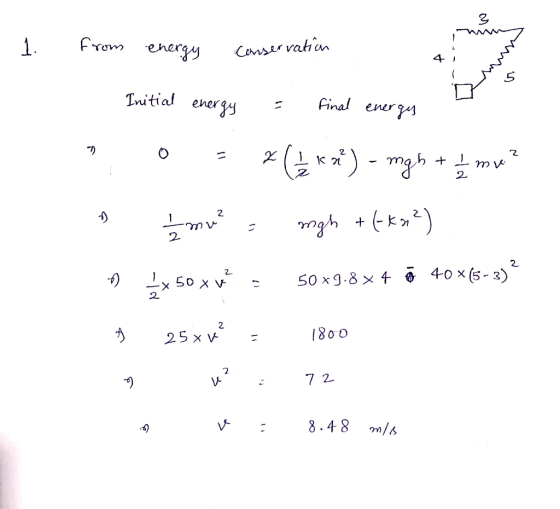

From energy Titial eergy Final ener eher 2. l80 o 7 2 8.48 m/ 2

Answer 2

Similar Homework Help Questions

The cylinder has a mass of 90 kg and is released from rest when h =...

The cylinder has a mass of 90 kg and is released from rest when h = 0. Each spring has a stiffness k = 20 N/m and an unstretched length of 2 m. (Figure 1) Part A Determine the cylinder's speed when h = 4 m. Express your answer to three significant figures and include the appropriate units. View Available Hint(s) μΑ ? Value Units Submit Figure 1 of 1 < Return to Assignment Provide Feedback 2 m 2 m
The cylinder has a mass of 80 kg and is released from rest when h =...

The cylinder has a mass of 80 kg and is released from rest when h = 0. Each spring has a stiffness k = 30 N/m and an unstretched length of 2 m. (Figure 1) Part A Determine the cylinder's speed when h= 3.5 m. Express your answer to three significant figures and include the appropriate units. View Available Hint(s) li μΑ ? Value Units Submit < Return to Assignment Provide Feedback igure 1 of 1 2 m 2 m...
b) The cylinder in Fig. B1b has a mass of 20 kg and is released from...

b) The cylinder in Fig. B1b has a mass of 20 kg and is released from rest when h 0. Determine its speed when h 3 m. Each spring has a stiffness k 40 N/m and an unstretched length of 2 m. 2 m Fig. B1b

If the 27-kg cylinder is released from rest at h=0, determine the required stiffness, k, of...

If the 27-kg cylinder is released from rest at h=0, determine the required stiffness, k, of each spring so that its downward motion is arrested when h = 0.75m. Each spring has an unstretched length of 1m. -2 m 2m-
3. The box of mass m= 0.2 kg is released from rest when = 160 mm....

3. The box of mass m= 0.2 kg is released from rest when = 160 mm. Determine its speed when x = 0, if the spring has a stiffness k= 250 N/m and a free length Lo h = 120 mm. The coefficient of kinetic friction between the box and the plane is u 0.15.
Item 1 The 23-kg rod is released from rest when 0 = 0º (Figure 1) Part...

Item 1 The 23-kg rod is released from rest when 0 = 0º (Figure 1) Part A Determine its angular velocity when 0 = 90°. The spring has an unstretched length of 0.5 m. Express your answer to three significant figures and include the appropriate units. μΑ ? = والنا Value Units Figure 1 of 1 Submit Request Answer 2 m Provide Feedback 1 m k = 100 N/m 2 m B

dynamics Fundamental Problem 18.9 The 78-kg rod OA is released from rest when 0 = 0°...

dynamics Fundamental Problem 18.9 The 78-kg rod OA is released from rest when 0 = 0° (Figure 1) Figure 1 of 1 k = 150 N/m 3 m C Part A Determine its angular velocity when 0 = 45°. The spring remains vertical during the motion and is unstretched when 0 = 0°. Express your answer to three significant figures and include the appropriate units. H ? ولما Value Units Submit Request Answer
The cylinder shown below is released from rest with the spring unstretched. How far has it...

The cylinder shown below is released from rest with the spring unstretched. How far has it fallen when it bounces back? k 280 N/m 20 kg
Q3. The 45-kg weight is released from rest in position 1. The spring constant is k-180...

Q3. The 45-kg weight is released from rest in position 1. The spring constant is k-180 kg/m and the springs are unstretched irn position 2. If the coefficient of restitution of the impact of the weight with the workpiece in position 2 is e-0.6, what is the magnitude of the velocity of the weight immediately after the impact? 40 cm Workpiece 30 cm

When the 55-kg cylinder is released from rest, the spring is subjected to a tension of...

When the 55-kg cylinder is released from rest, the spring is subjected to a tension of 75 N . Deter mine the speed of the cylinder after it has fallen 200 mile meter. Express your answer with the appropriate units. V = How far has it fallen when it momentarily stops? (Figure 1) Express your answer with the appropriate units.
