Homework Answers
Add Answer to:

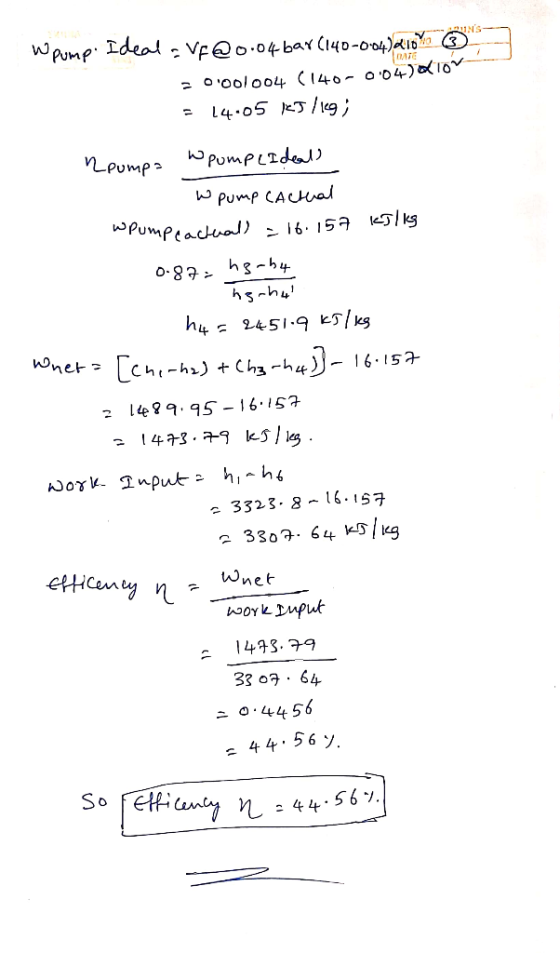

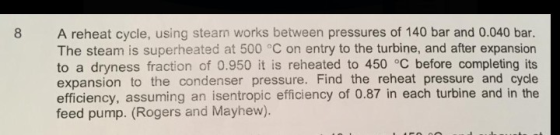

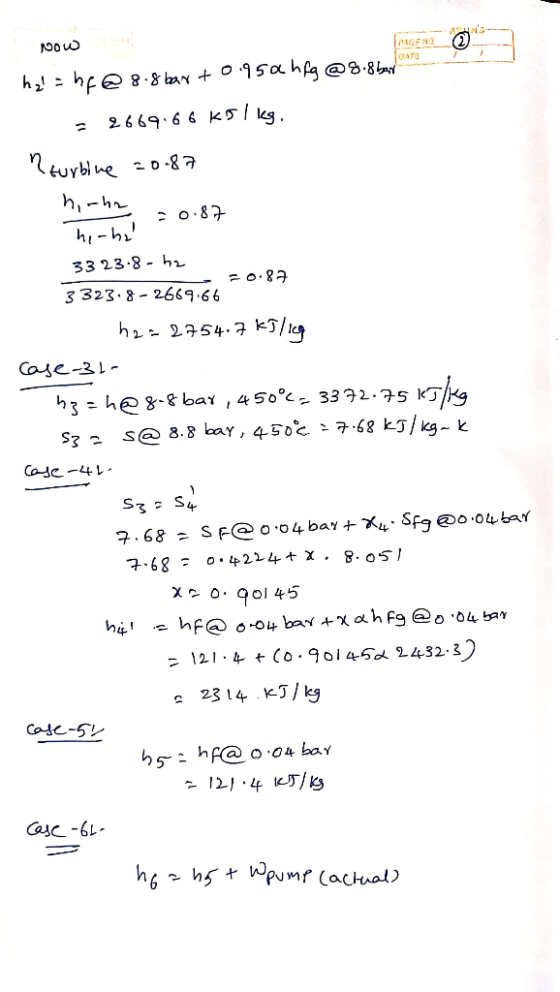

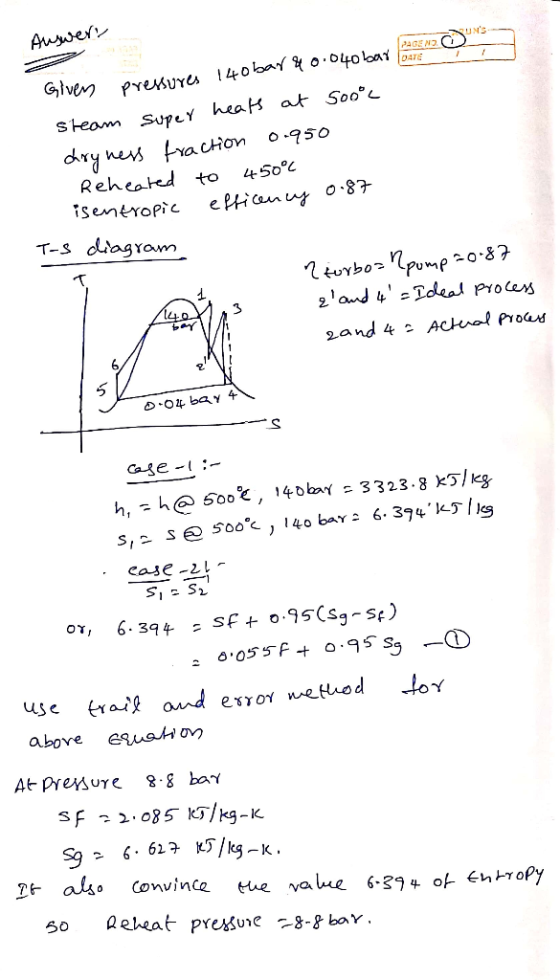

8 A reheat cycle, using stearn works between pressures of 140 bar and 0.040 bar. The...
1) A Rankine cycle with reheat uses 1 kg s-1 of steam though the primary turbine,...
1) A Rankine cycle with reheat uses 1 kg s-1 of steam though the primary turbine, whose inlet conditions are 400C and 50 Bar. The primary turbine has an isentropic efficiency of 80% and an outlet pressure of 10 Bar. After this turbine, all of the steam is reheated to 400C and passed through a reheat turbine which also has an isentropic efficiency of 80% and whose outlet pressure is 1 bar, which is the condenser pressure. After the condenser,...
7.A two stage turbine with reheat drives an electrical alternator of output 33 MW and an internal...
7.A two stage turbine with reheat drives an electrical alternator of output 33 MW and an internal efficiency of 95%. Steam is supplied to the first stage of the turbine at 60 bar and 400°C and is expanded to 3 bar with an isentropic efficiency of 0.85. The steam is then reheated to 400°C at 3 bar and is expanded through he second stage to 0.1 bar with an isentropic efficiency of 0.79. Feed pump work may be neglected. Combustion...
Problem 8.021 SI Water is the working fluid in a Rankine cycle with reheat. Superheated vapor...
Problem 8.021 SI Water is the working fluid in a Rankine cycle with reheat. Superheated vapor enters the turbine at 10 MPa, 520°C, and the condenser pressure is 6 kPa. Steam expands through the first-stage turbine to 0.7 MPa and then is reheated to 520°C. The pump and each turbine stage have an isentropic efficiency of 80%. Determine for the cycle: (a) the heat addition, in kJ per kg of steam entering the first-stage turbine. (b) the percent thermal efficiency....
Steam power plant using the reheat Rankine cycle
A steam power plant operates using the reheat Rankine cycle. Steam enters the high pressure turbine at 12.5 MPa and 550ºC at a rate of 7.7 kg/s and leaves at 2MPa. Steam is then reheated at a constant pressure to 450ºC before it expands in the low pressure turbine. The isentropic efficiencies of the turbine and the pumpare 85% and 90%, respectively. Steam leaves the condenser as a saturated liquid. If the moisture content of the steam at the exit...
Consider a steam power plant that operates on a reheat Rankine cycle and has a net...
Consider a steam power plant that operates on a reheat Rankine cycle and has a net power output of 80 MW. Steam enters the high-pressure turbine at 10 MPa and 550°C and the low-pressure turbine at 1 MPa and 550°C. Steam leaves the condenser as a saturated liquid at a pressure of 10 kPa. The isentropic efficiency of the turbine is 80 percent, and that of the pump is 95 percent. Show the cycle on a T-s diagram with respect...
Consider a steam power plant that operates on a reheat Rankine cycle and has a net...
Consider a steam power plant that operates on a reheat Rankine cycle and has a net power output of 80 MW. Steam enters the high-pressure turbine at 10 MPa and 500°C and the low-pressure turbine at 1 MPa and 500°C. Steam leaves the condenser as a saturated liquid at a pressure of 10 kPa. The isentropic efficiency of the turbine is 74 percent and that of the pump is 95 percent. Determine the quality (or temperature, if superheated) of the...
A steam power plant is based on the Rankine cycle with reheat (refer to the figure below). Steam ...
A steam power plant is based on the Rankine cycle with reheat (refer to the figure below). Steam is produced by the boiler/superheater (H-1) at 100 bar and 600 C at a rate of 2.5 kgs. This is expanded to 10 bar in the turbine T-1 and then reheated to 600 °C in heater H-2. The steam is then expanded in turbine T-2 to a pressure of 0.1 bar. The steam is then condensed in condenser (C-1) which operates at...
(1) Q.5 (a) A power station using a Superheated Rankine cycle operates with a boiler pressure...
(1) Q.5 (a) A power station using a Superheated Rankine cycle operates with a boiler pressure of 160 bar and a condenser pressure of 0.045 bar. The turbine has an inlet steam temperature of 575°C, and has an isentropic efficiency of 90.5%. The pump has an isentropic efficiency of 88%. Hence, determine Show the cycle on a T-s diagram in relation to the saturation curves and clearly label all the principal points starting from the exit of the condenser. Sketch...
Question 3 [30 marks] A reheat Rankine cycle is designed for a steam power plant. Steam...
Question 3 [30 marks] A reheat Rankine cycle is designed for a steam power plant. Steam enters both the high- and low- pressure turbines at 600oC. The maximum and minimum pressures of the cycle are 20 MPa and 20 kPa, respectively. Steam leaves the condenser as a saturated liquid. The moisture content of the steam at the exit of the low-pressure turbine is 4% if the actual expansion process is adiabatic; 8.5% if the ideal expansion process is isentropic. The...
8.12 Water is used as the working fluid in an ideal Rankine cycle. The steam is supplied as superheated steam at 30 bar,...
8.12 Water is used as the working fluid in an ideal Rankine cycle. The steam is supplied as superheated steam at 30 bar, 440°C. The condenser pressure is 0.5 bar. If isentropic efficiency of turbine and pump are 90% and 85%, respectively, determine the thermal efficiency of the cycle.
7.A two stage turbine with reheat drives an electrical alternator of output 33 MW and an internal efficiency of 95%. Steam is supplied to the first stage of the turbine at 60 bar and 400°C and is expanded to 3 bar with an isentropic efficiency of 0.85. The steam is then reheated to 400°C at 3 bar and is expanded through he second stage to 0.1 bar with an isentropic efficiency of 0.79. Feed pump work may be neglected. Combustion...
A steam power plant is based on the Rankine cycle with reheat (refer to the figure below). Steam is produced by the boiler/superheater (H-1) at 100 bar and 600 C at a rate of 2.5 kgs. This is expanded to 10 bar in the turbine T-1 and then reheated to 600 °C in heater H-2. The steam is then expanded in turbine T-2 to a pressure of 0.1 bar. The steam is then condensed in condenser (C-1) which operates at...
(1) Q.5 (a) A power station using a Superheated Rankine cycle operates with a boiler pressure of 160 bar and a condenser pressure of 0.045 bar. The turbine has an inlet steam temperature of 575°C, and has an isentropic efficiency of 90.5%. The pump has an isentropic efficiency of 88%. Hence, determine Show the cycle on a T-s diagram in relation to the saturation curves and clearly label all the principal points starting from the exit of the condenser. Sketch...
