1) A Rankine cycle with reheat uses 1 kg s-1 of steam though the primary turbine,...

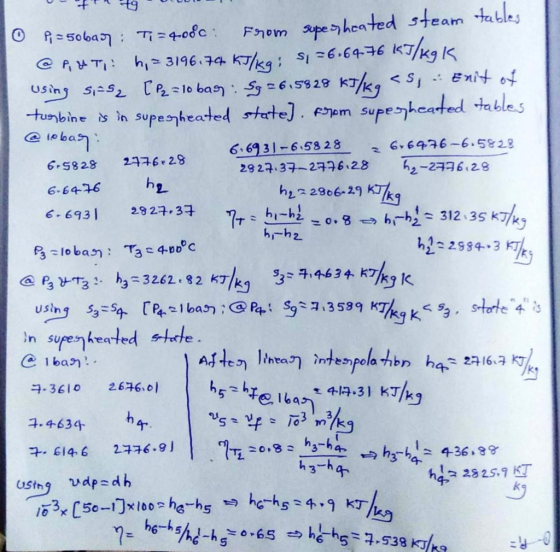

1) A Rankine cycle with reheat uses 1 kg s-1 of steam though the primary turbine, whose inlet conditions are 400C and 50 Bar. The primary turbine has an isentropic efficiency of 80% and an outlet pressure of 10 Bar. After this turbine, all of the steam is reheated to 400C and passed through a reheat turbine which also has an isentropic efficiency of 80% and whose outlet pressure is 1 bar, which is the condenser pressure. After the condenser, the steam is a saturated liquid. It is then compressed in a feed pump (whose isentropic efficiency coincidently is 65%) where it exits at 50 bar. Heat is then added to the steam to raise its temperature to that of the primary turbine

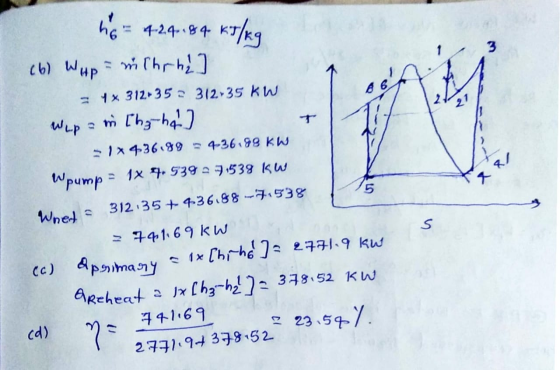

a) Draw the block and T-s diagram for the system.
b) How much power does the HP turbine produce? How much power does the LP turbine produce? How much power does the feed pump need? What is the net power output?
c) How much heat is required for the primary heat input, the reheat?
d) What is the thermal efficiency of the cycle?
Homework Answers
