Homework Answers
Add Answer to:

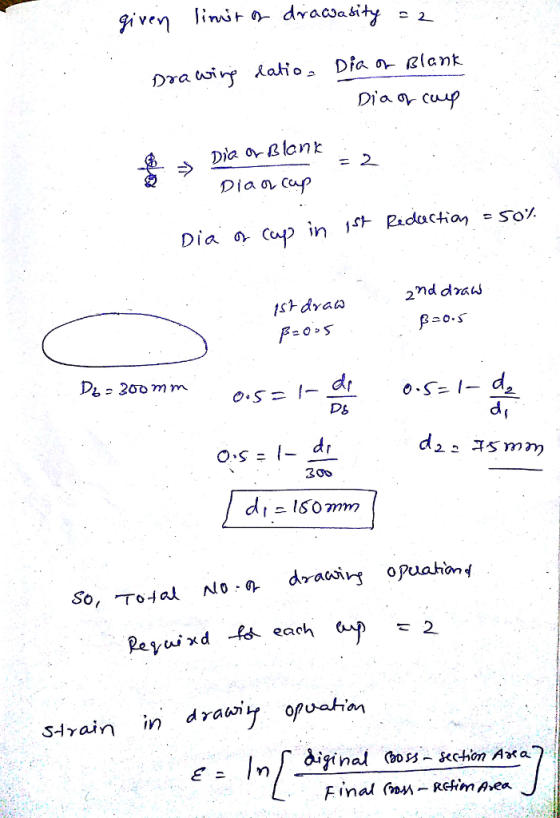

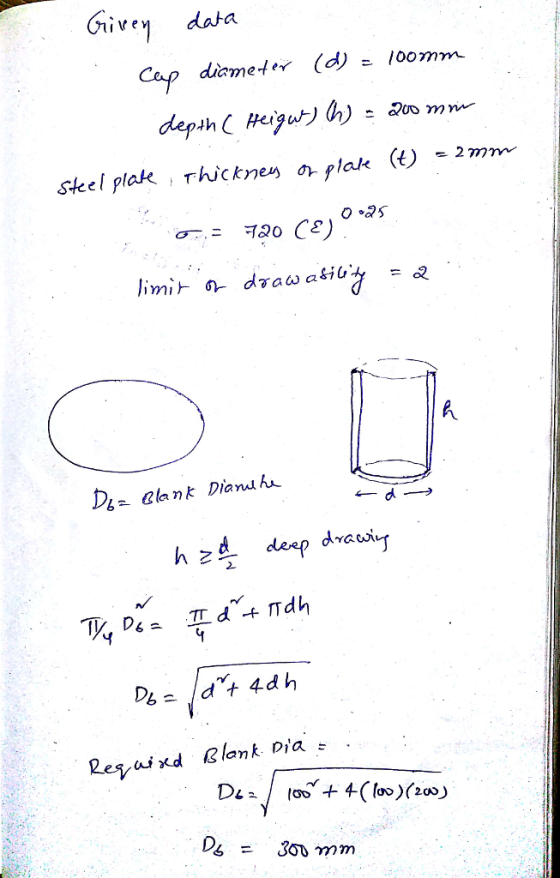

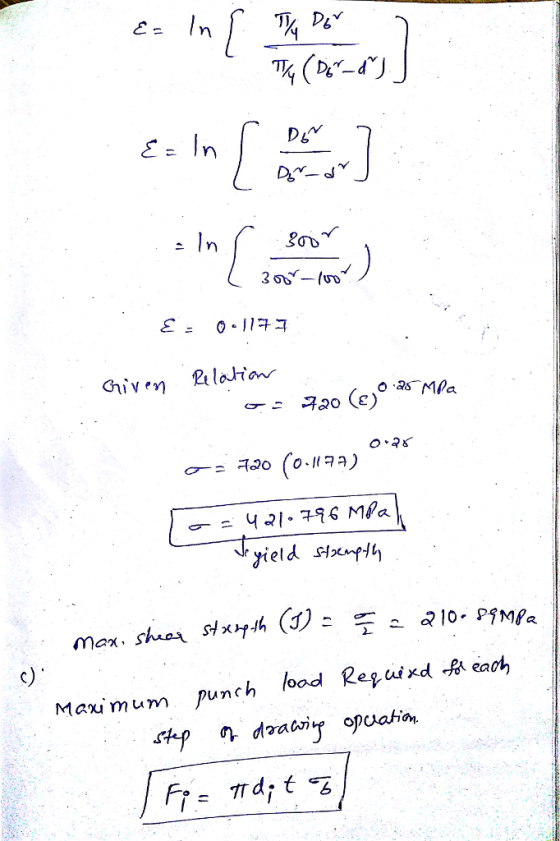

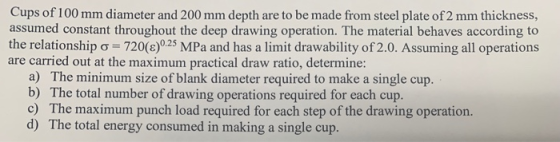

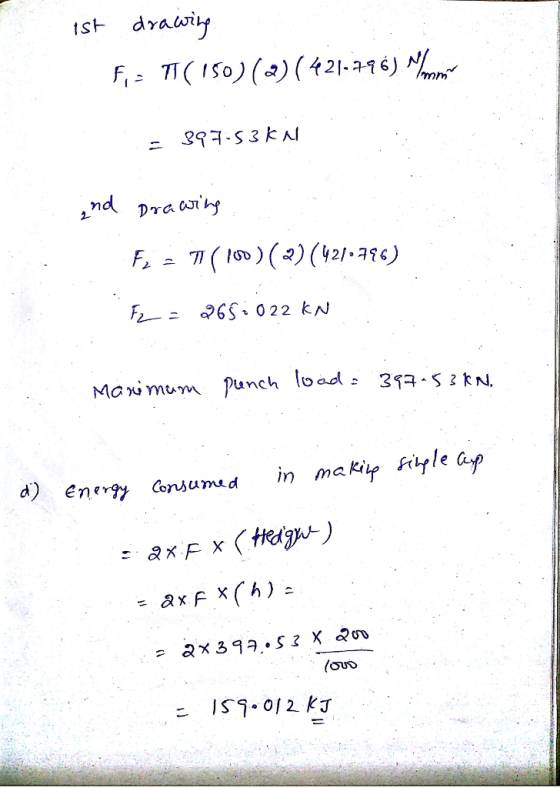

Cups of 100 mm diameter and 200 mm depth are to be made from steel plate...
MEE2001/2015 Q5. A thin walled steel cylinder with 10 mm wall thickness and internal diameter of 200 mm (Fig. Q5) is subjected to an internal pressure, p. The steel used for the cylinder has a yie...
MEE2001/2015 Q5. A thin walled steel cylinder with 10 mm wall thickness and internal diameter of 200 mm (Fig. Q5) is subjected to an internal pressure, p. The steel used for the cylinder has a yield stress of 240 MPa. +F 200 mm Fig. Q5 (a) If a tensile axial force of 1MN is applied to the end plate, show that the maximum internal pressure that can be applied before the cylinder yields according to the Tresca criterion is 16.2...
26. A 42.o-mm-thick plate made of low carbon steel is to be reduced to 34.0 mm...
26. A 42.o-mm-thick plate made of low carbon steel is to be reduced to 34.0 mm in one pass in a rolling operation. As the thickness is reduced, the plate widens by 4%. The yield strength of the steel plate is 174 MPa and the tensile strength is 290 MPa. The entrance speed of the plate is 15.0 m/min. The roll radius is 325 mm and the rotational speed is 49.0 rev/min. Determine the minimum required coefficient of friction that...
A thick-walled steel cylinder with internal diameter = 16 mm and external diameter = 24 mm is sub...
A thick-walled steel cylinder with internal diameter = 16 mm and
external diameter = 24 mm is subjected to a gradually increasing
internal pressure P.
I. Using accurate formulation, determine the value
of P and sketch the distribution of radial, tangential and maximum
shear stresses when:
a. The material of the cylinder first commences to
yield.
b. Yielding progressed to mid-depth of the cylinder
wall (at D= 20 mm ).
c. The material of the cylinder suffers complete
collapse (fully...
with steps please Question4 A thick-walled cylinder of mild steel with internal diameter of 80 mm and external diame...
with steps please
Question4 A thick-walled cylinder of mild steel with internal diameter of 80 mm and external diameter of 120 mm is loaded by internal pressure. The yield strength of the material is 300 MPa. a. Find the internal pressure required to initiate yielding in the cylinder using Lame's formulation. Sketch the stress distribution giving significant stress values. b. Find the plastic limit pressure at which the cylinder is fully plastic using non-linear formulation. Sketch the stress distribution giving...
Required information The 4-mm-diameter cable BC is made of a steel with E= 200 GPa. Knowing...
Required information The 4-mm-diameter cable BC is made of a steel with E= 200 GPa. Knowing that the maximum stress in the cable must not exceed 200 MPa and that the elongation of the cable must not exceed 7 mm. Ifa - 3 m and b 4 m, find the allowable load P that can be applied as shown
Problem 6: Link 2, shown in the figure, is 25 mm wide, has 12-mm diameter bearings at the ends, and is cut from low-carbon steel bar stock having a minimum yield strength of 165 MPa. The end- conditi...
Problem 6: Link 2, shown in the figure, is 25 mm wide, has 12-mm diameter bearings at the ends, and is cut from low-carbon steel bar stock having a minimum yield strength of 165 MPa. The end- condition constants are C-1 and C-1.2 for buckling in and out of the plane of the drawing, respectively. a. Using a design factor na 4, find a suitable thickness for the link. b. Are the bearing stresses at O and B of any...
Pulley Diameter = 800 mm Base Plate Diameter = 1200 mm Shaft Mounted Wheel Axial force...
Pulley Diameter = 800 mm Base Plate Diameter = 1200 mm Shaft Mounted Wheel Axial force F2 along the shaft axis Belt connected to motor with tension force F Figure 1. Side View Belt Bearing A. Bearing B FR = 2 kN --- - - - - - - - - - - > ---- 500 mm 500 mm 500 mm F1 = 500 N 'Fw = 1 kN Figure 2. The design of a fatigue test machine for car...
QUESTION 5 During the orthogonal cutting of medium carbon steel rod with diameter of 75 mm...
QUESTION 5 During the orthogonal cutting of medium carbon steel rod with diameter of 75 mm and yield strength of 240 N/mm², the following machining data were used: Rake angle = 12°C Spindle speed = 950 rev/min Chip thickness ratio = 0.25 mm Depth of cut = 0.8 mm Width of cut = 5.0 mm Horizontal component of the cutting force = 1000 N The vertical component of the cutting force = 1400 N Calculate the following: (a) Shear plane...
please show all work 2. (12 pts) A shaft w ith a step in diameter is made of SAE 1045 steel. It is required to withstand 107 cycles kN. The shaft has 2(a), di 25 mm, d2-30 mhm, and ρ :0.625 mm....
please show all work
2. (12 pts) A shaft w ith a step in diameter is made of SAE 1045 steel. It is required to withstand 107 cycles kN. The shaft has 2(a), di 25 mm, d2-30 mhm, and ρ :0.625 mm. Use Peterson's fitted on (equation below) for a value of a. Modification factors shall be applied for the following of an axial force amplitude P, 16kN applied along with a mean force of Pm dimensions, as in Figu...
Question 1 A turning operation is carried out on aluminum. Based on the specific energy values...
Question 1 A turning operation is carried out on aluminum. Based on the specific energy values in Table 20.2, determine material removal rate and cutting power in the operation under the following sets of cutting conditions: (a) Cutting speed 5.6 m/s, feed 0.25 mm/rev, and depth of cut 2.0 mm; and (b) cutting speed- 1.3 m/s, feed 0.75 mm/rev, and depth 4.0 mm. Question 2 Consider a turning operation performed on steel whose hardness 225 HB at a cutting speed...
MEE2001/2015 Q5. A thin walled steel cylinder with 10 mm wall thickness and internal diameter of 200 mm (Fig. Q5) is subjected to an internal pressure, p. The steel used for the cylinder has a yield stress of 240 MPa. +F 200 mm Fig. Q5 (a) If a tensile axial force of 1MN is applied to the end plate, show that the maximum internal pressure that can be applied before the cylinder yields according to the Tresca criterion is 16.2...
26. A 42.o-mm-thick plate made of low carbon steel is to be reduced to 34.0 mm in one pass in a rolling operation. As the thickness is reduced, the plate widens by 4%. The yield strength of the steel plate is 174 MPa and the tensile strength is 290 MPa. The entrance speed of the plate is 15.0 m/min. The roll radius is 325 mm and the rotational speed is 49.0 rev/min. Determine the minimum required coefficient of friction that...
A thick-walled steel cylinder with internal diameter = 16 mm and
external diameter = 24 mm is subjected to a gradually increasing
internal pressure P.
I. Using accurate formulation, determine the value
of P and sketch the distribution of radial, tangential and maximum
shear stresses when:
a. The material of the cylinder first commences to
yield.
b. Yielding progressed to mid-depth of the cylinder
wall (at D= 20 mm ).
c. The material of the cylinder suffers complete
collapse (fully...
with steps please
Question4 A thick-walled cylinder of mild steel with internal diameter of 80 mm and external diameter of 120 mm is loaded by internal pressure. The yield strength of the material is 300 MPa. a. Find the internal pressure required to initiate yielding in the cylinder using Lame's formulation. Sketch the stress distribution giving significant stress values. b. Find the plastic limit pressure at which the cylinder is fully plastic using non-linear formulation. Sketch the stress distribution giving...
Required information The 4-mm-diameter cable BC is made of a steel with E= 200 GPa. Knowing that the maximum stress in the cable must not exceed 200 MPa and that the elongation of the cable must not exceed 7 mm. Ifa - 3 m and b 4 m, find the allowable load P that can be applied as shown
Problem 6: Link 2, shown in the figure, is 25 mm wide, has 12-mm diameter bearings at the ends, and is cut from low-carbon steel bar stock having a minimum yield strength of 165 MPa. The end- condition constants are C-1 and C-1.2 for buckling in and out of the plane of the drawing, respectively. a. Using a design factor na 4, find a suitable thickness for the link. b. Are the bearing stresses at O and B of any...
Pulley Diameter = 800 mm Base Plate Diameter = 1200 mm Shaft Mounted Wheel Axial force F2 along the shaft axis Belt connected to motor with tension force F Figure 1. Side View Belt Bearing A. Bearing B FR = 2 kN --- - - - - - - - - - - > ---- 500 mm 500 mm 500 mm F1 = 500 N 'Fw = 1 kN Figure 2. The design of a fatigue test machine for car...
QUESTION 5 During the orthogonal cutting of medium carbon steel rod with diameter of 75 mm and yield strength of 240 N/mm², the following machining data were used: Rake angle = 12°C Spindle speed = 950 rev/min Chip thickness ratio = 0.25 mm Depth of cut = 0.8 mm Width of cut = 5.0 mm Horizontal component of the cutting force = 1000 N The vertical component of the cutting force = 1400 N Calculate the following: (a) Shear plane...
please show all work
2. (12 pts) A shaft w ith a step in diameter is made of SAE 1045 steel. It is required to withstand 107 cycles kN. The shaft has 2(a), di 25 mm, d2-30 mhm, and ρ :0.625 mm. Use Peterson's fitted on (equation below) for a value of a. Modification factors shall be applied for the following of an axial force amplitude P, 16kN applied along with a mean force of Pm dimensions, as in Figu...
Question 1 A turning operation is carried out on aluminum. Based on the specific energy values in Table 20.2, determine material removal rate and cutting power in the operation under the following sets of cutting conditions: (a) Cutting speed 5.6 m/s, feed 0.25 mm/rev, and depth of cut 2.0 mm; and (b) cutting speed- 1.3 m/s, feed 0.75 mm/rev, and depth 4.0 mm. Question 2 Consider a turning operation performed on steel whose hardness 225 HB at a cutting speed...
