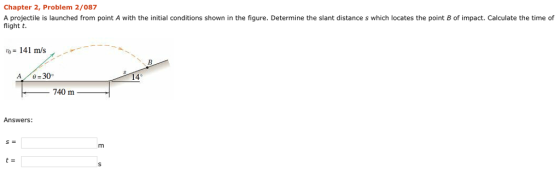

Chapter 2, Problem 2/087 A projectile is launched from point A with the initial conditions shown...
Chapter 2, Problem 2/093 A golf ball is launched with the initial conditions shown in the...
Chapter 2, Problem 2/093
A golf ball is launched with the initial conditions shown in the
figure. Determine the two times (t1 <
t2) when the radius of curvature of the
trajectory has a value of 2018 ft.
A golf ball is launched with the initial conditions shown in the figure. Determine the two times (t1 <tz) when the radius of curvature of the trajectory has a value of 2018 ft. བའི་ 176 mi/hr 120 Answers: 2.57 sec t =...
Chapter 2, Practice Problem 2/044 Compare the slant range R; and flight time t; for the...
Chapter 2, Practice Problem 2/044 Compare the slant range R; and flight time t; for the depicted projectile with the range R and flight time t for a projectile (launched with speed vo and inclination angle a) which flies over a horizontal surface. Evaluate your four results for Vo = 184 m/s and a = 24° Answers:
Chapter D2, Problem D2/134 A projectile is launched from point O with an initial speed Vo...
Chapter D2, Problem D2/134 A projectile is launched from point O with an initial speed Vo 515 ft/sec directed as shown in the figure. Compute the x-, y and z-components of position, velocity, and acceleration 22.5 seconds after launch. Neglect aerodynamic drag 63 ok 20 Answers: At t 22.5 sec, х3 ft ft/sec, ft/sec2 у 3 t/sec f/sec, ay ft, az= ft/sec, ft/sec2
1 2 A projectile PA is launched from point A towards the east with an initial launch velocity ves and an initial launch angle of 8aA. The impact point of the projectile Pa is a point B in a valle...
1 2 A projectile PA is launched from point A towards the east with an initial launch velocity ves and an initial launch angle of 8aA. The impact point of the projectile Pa is a point B in a valley with an ordinate, you, located below the elevation of point A. The launch from point A is instantaneously detected at point B, and a counter projectile Pa ts launched simultaneously towards the west to intercept the incoming projectile PA. Projectile...
1. As shown in the figure, a projectile is fired at time t=0.00 s, from point...
1. As shown in the figure, a projectile is fired at time t=0.00 s, from point 0 at the upper edge of a cliff, with initial velocity components of vox = 46.0 m/s and voy = 406 m/s. The projectile rises and then falls into the sea at point P. The time of flight of the projectile is 115 s, and air resistance is negligible. At this location, g = 9.80 m/s2. What is the horizontal distance D? YA V...
Problem 7 4.A projectile of mass 9.6 kg is launched from the ground with an initial velocity of 12.4 m/s at an angl...
Problem 7 4.A projectile of mass 9.6 kg is launched from the ground with an initial velocity of 12.4 m/s at an angle of 54° above the horizontal (see the figure). At some time after its launch, an explosion splits the projectile into two pieces. One piece, of mass 6.5 kg, is observed at 1.42 seconds after the launch to be at a height of 5.9 m and at a horizontal distance of 13.6 m from the launch point. Find...
Problem 7 4. A projectile of mass 9.6 kg is launched from the ground with an...
Problem 7 4. A projectile of mass 9.6 kg is launched from the ground with an initial velocity of 12.4 m/s at angle of 54° above the horizontal (see the figure). At some time after its launch, an explosion splits the projectile into two pieces. One piece, of mass 6.5 kg, is observed at 1.42 seconds after the launch to be at a height of 5.9 m and at a horizontal distance of 13.6 m from the launch point Find...
I. A projectile is launched from point A with an initial velocity of vo and an...
I. A projectile is launched from point A with an initial velocity of vo and an elevation angle θ as shown. The air resistance is neglected and gravitational acceleration is constant. a) Show that the equation of the path is y-2v zg+x tan θ, where g is the gravitational 2 2v6cos20 acceleration b) Determine the radius of curvature of the path in terms of the time t using n-t coordinate system c) For Vo-10 m/s and θ-40°, plot the radius...
40. A projectile is launched from the top of a building with an initial velocity of...
40. A projectile is launched from the top of a building with an initial velocity of 10.0 m/s at an angle of 42.0 below the horizontal. The building is 34.0 meters tall, and it stands on level ground. Air resistance is negligible. Calculate (a) the distance traveled horizontally by the projectile by the time it hits the ground, and (b) the magnitude and direction of the projectile's velocity at the instant it arrives at the ground.
A 0.650 kg projectile is launched from the edge of a cliff with an initial kinetic...
A 0.650 kg projectile is launched from the edge of a cliff with an initial kinetic energy of 1425 J and at its highest point is 177.6 m above the launch point. What is the horizontal component of its velocity? What was the vertical component of its velocity just after launch? At one instant during its flight the vertical component of its velocity is 35.40 m/s. At that time, how far is it above or below the launch point?
Chapter 2, Problem 2/093
A golf ball is launched with the initial conditions shown in the
figure. Determine the two times (t1 <
t2) when the radius of curvature of the
trajectory has a value of 2018 ft.
A golf ball is launched with the initial conditions shown in the figure. Determine the two times (t1 <tz) when the radius of curvature of the trajectory has a value of 2018 ft. བའི་ 176 mi/hr 120 Answers: 2.57 sec t =...
Chapter 2, Practice Problem 2/044 Compare the slant range R; and flight time t; for the depicted projectile with the range R and flight time t for a projectile (launched with speed vo and inclination angle a) which flies over a horizontal surface. Evaluate your four results for Vo = 184 m/s and a = 24° Answers:
Chapter D2, Problem D2/134 A projectile is launched from point O with an initial speed Vo 515 ft/sec directed as shown in the figure. Compute the x-, y and z-components of position, velocity, and acceleration 22.5 seconds after launch. Neglect aerodynamic drag 63 ok 20 Answers: At t 22.5 sec, х3 ft ft/sec, ft/sec2 у 3 t/sec f/sec, ay ft, az= ft/sec, ft/sec2
1 2 A projectile PA is launched from point A towards the east with an initial launch velocity ves and an initial launch angle of 8aA. The impact point of the projectile Pa is a point B in a valley with an ordinate, you, located below the elevation of point A. The launch from point A is instantaneously detected at point B, and a counter projectile Pa ts launched simultaneously towards the west to intercept the incoming projectile PA. Projectile...
1. As shown in the figure, a projectile is fired at time t=0.00 s, from point 0 at the upper edge of a cliff, with initial velocity components of vox = 46.0 m/s and voy = 406 m/s. The projectile rises and then falls into the sea at point P. The time of flight of the projectile is 115 s, and air resistance is negligible. At this location, g = 9.80 m/s2. What is the horizontal distance D? YA V...
Problem 7 4.A projectile of mass 9.6 kg is launched from the ground with an initial velocity of 12.4 m/s at an angle of 54° above the horizontal (see the figure). At some time after its launch, an explosion splits the projectile into two pieces. One piece, of mass 6.5 kg, is observed at 1.42 seconds after the launch to be at a height of 5.9 m and at a horizontal distance of 13.6 m from the launch point. Find...
Problem 7 4. A projectile of mass 9.6 kg is launched from the ground with an initial velocity of 12.4 m/s at angle of 54° above the horizontal (see the figure). At some time after its launch, an explosion splits the projectile into two pieces. One piece, of mass 6.5 kg, is observed at 1.42 seconds after the launch to be at a height of 5.9 m and at a horizontal distance of 13.6 m from the launch point Find...
I. A projectile is launched from point A with an initial velocity of vo and an elevation angle θ as shown. The air resistance is neglected and gravitational acceleration is constant. a) Show that the equation of the path is y-2v zg+x tan θ, where g is the gravitational 2 2v6cos20 acceleration b) Determine the radius of curvature of the path in terms of the time t using n-t coordinate system c) For Vo-10 m/s and θ-40°, plot the radius...
40. A projectile is launched from the top of a building with an initial velocity of 10.0 m/s at an angle of 42.0 below the horizontal. The building is 34.0 meters tall, and it stands on level ground. Air resistance is negligible. Calculate (a) the distance traveled horizontally by the projectile by the time it hits the ground, and (b) the magnitude and direction of the projectile's velocity at the instant it arrives at the ground.
