Homework Answers
Solution- the current is going up
According to lenz law an induced current always flows in a direction such that it opposes the change which produced it.
Here the N pole of the magnet is moving away from the coil therefore to oppose the the motion upper end of the coil becomes S pole and the lower end becomes N pole thus the induced current flow (by right hand thumb rule) through the resistor is upward
Add Answer to:

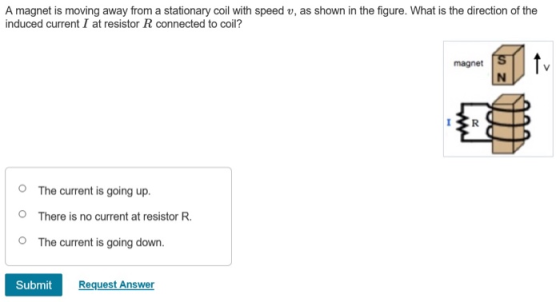

A magnet is moving away from a stationary coil with speed v, as shown in the...
