A solenoid is wound as shown in the figure.
a. Is there an induced current as magnet 1 is moved away from the solenoid? If so, what is the current direction through resistor R?
b. Is there an induced current as magnet 2 is moved away from the solenoid? If so, what is the current direction through resistor R?

S 2 N N SI CCCCCCCC min 1

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

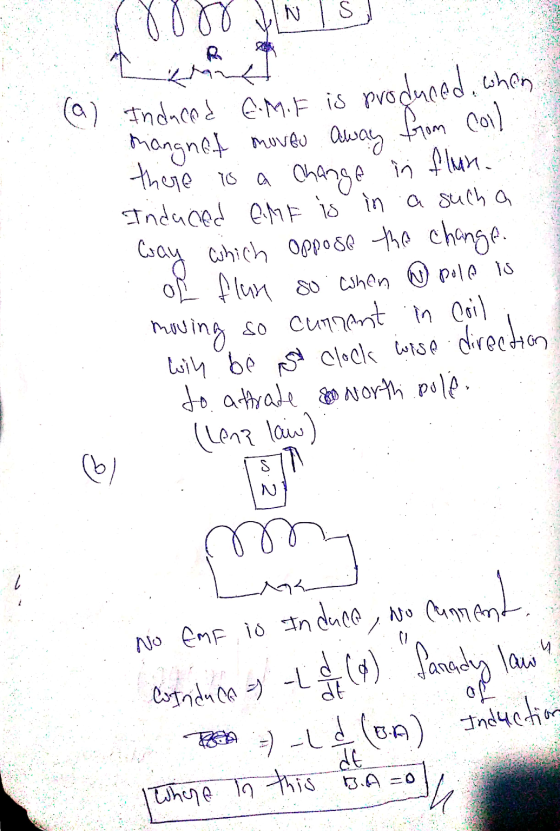

S z (9) Induced emit is produced, when hangnet moveo away from coil there is a change in flun. Induced en is in a sucha way w
