Level control of a tank using contact sensors. If the liquid level falls below the limit,...

Level control of a tank using contact sensors. If the liquid level falls below the limit, the Arduino must activate a pump to refill the tank. Also make the diagram of the complete circuit of the system. Simulate the pump with an LED and the sensors with switches. Problem for the arduino program, make flow diagram.

0 0
Add a comment Improve this question Transcribed image text
Answer #1

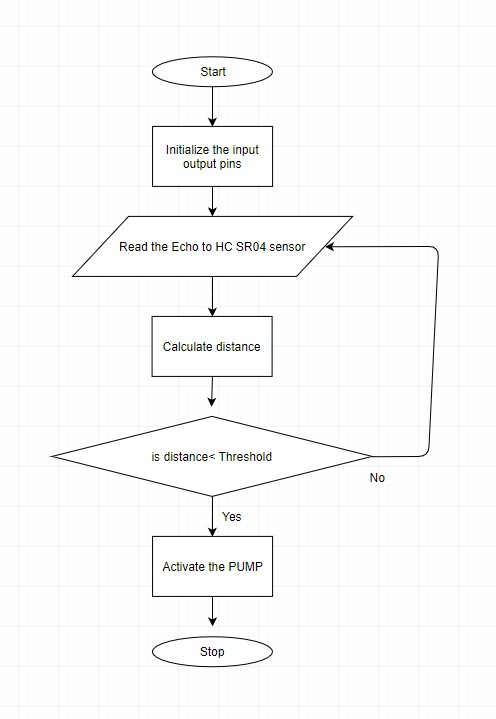

Here is the flow diagram

Start Initialize the input output pins Read the Echo to HC SR04 sensor Calculate distance is distance Threshold No Yes Activa

Please thumbs up
