Homework Answers
ANSWER:
Add Answer to:

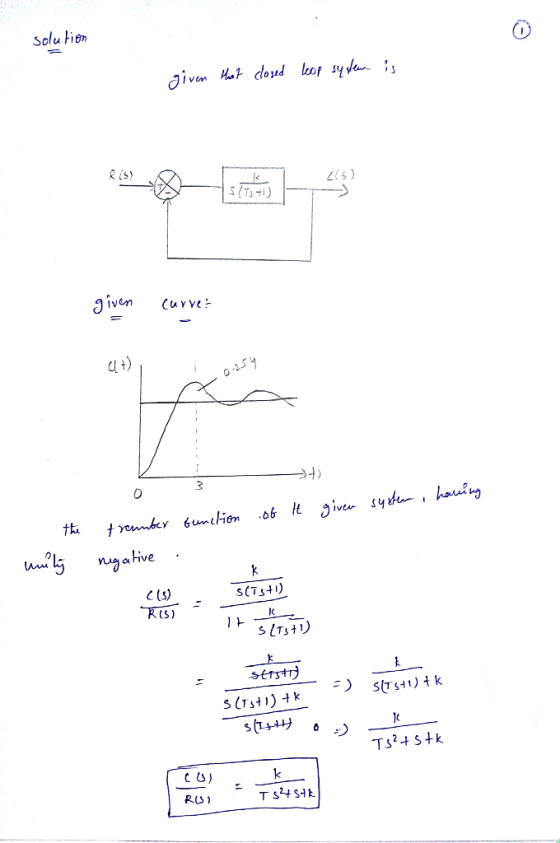

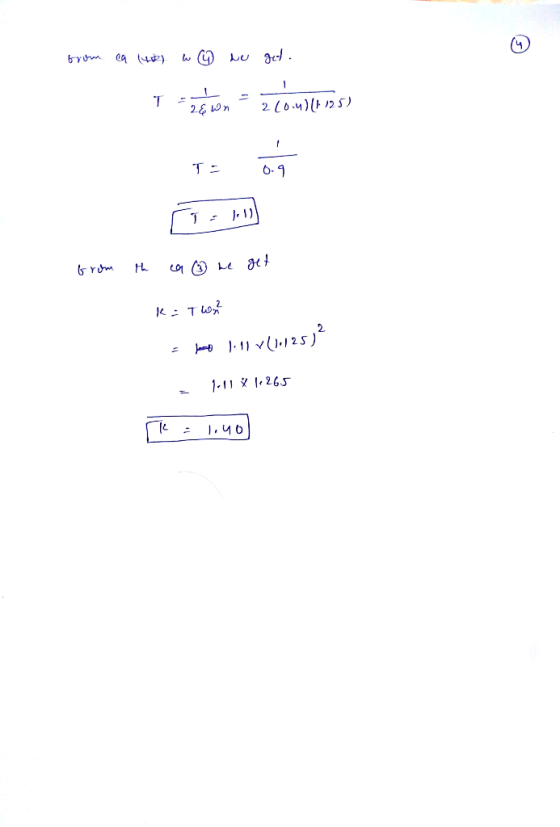

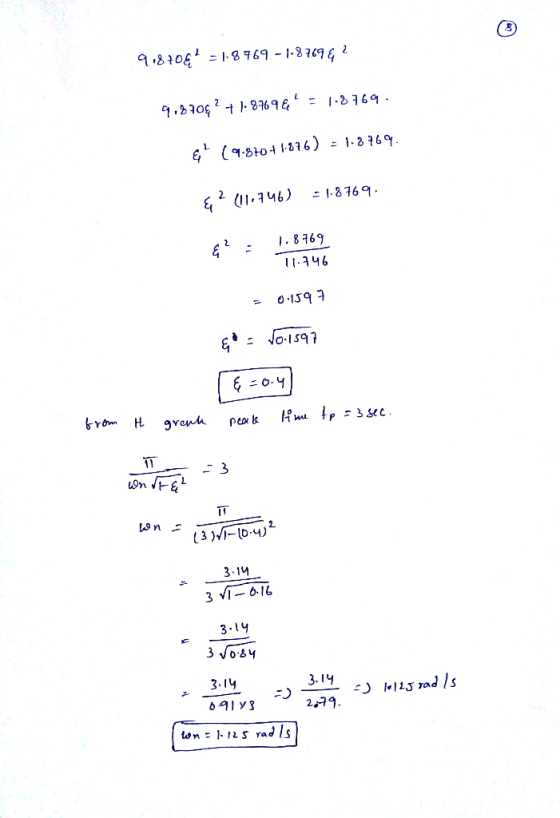

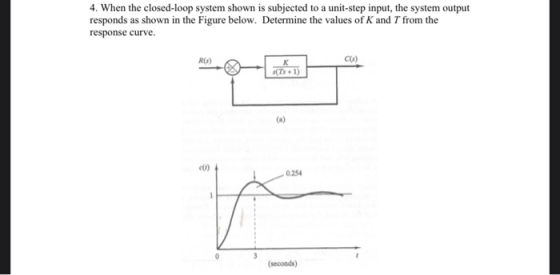

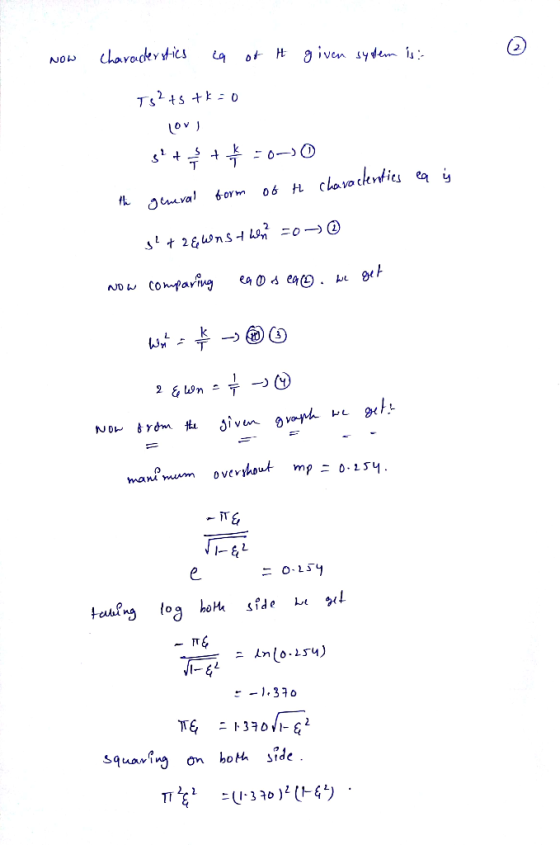

4. When the closed-loop system shown is subjected to a unit-step input, the system output responds...
please help to solve this. Thank you Section B: Answer any 3 questions out of 4,...
please help to solve this. Thank you
Section B: Answer any 3 questions out of 4, each question carries 20 marks. Bl. When the system shown in figure (ə) is subjected to a unit-step input, the system output responds as shown in figure (b). Determine the values of K and T from the response curve. R(S) MTs + 1 (a) co 0.254
control system Q4) Figure (a) and Figure (b) below show a system with a unit-step input,...
control system
Q4) Figure (a) and Figure (b) below show a system with a unit-step input, and the output time response respectively. From the response curve, determine the values of K and T shown in Figure (a)
A negative feedback closed-loop system shown in the figure below is subjected to an input of...
A negative feedback closed-loop system shown in the figure below is subjected to an input of 5 V. Determine the output voltage (volts) if the system has a forward gain (G(s)) of 1 and feedback gain (H(s) of 1. R(S) - G(s) C($) HI O1V 071 2.5 V 5V
Please solve them on MATLAB PROBLEM 1 A closed loop control system is depicted in Figure 1 where K 2 and the nominal value of a is 1. The goal in this problem is to examine the sensitivity of the who...
Please solve them on MATLAB
PROBLEM 1 A closed loop control system is depicted in Figure 1 where K 2 and the nominal value of a is 1. The goal in this problem is to examine the sensitivity of the whole system in Figure 1 to the parameter a (a) If a = 1, demonstrate explicitly that the steady state value of output is equal to 2 when input is unit step function. Confirm that, after 4 seconds, the unit...
Please solve with MATLAB, please solve with MATLAB PROBLEM 1 A closed loop control system is depicted in Figure 1 where K 2 and the nominal value of a is 1. The goal in this problem is to examine the...
Please solve with MATLAB, please solve with MATLAB
PROBLEM 1 A closed loop control system is depicted in Figure 1 where K 2 and the nominal value of a is 1. The goal in this problem is to examine the sensitivity of the whole system in Figure 1 to the parameter a. (a) If a 1, demonstrate explicitly that the steady state value of output is equal to 2 when input is unit step function. Confirm that, after 4 seconds,...
1. [25%] Consider the closed-loop system shown where it is desired to stabilize the system with...
1. [25%] Consider the closed-loop system shown where it is desired to stabilize the system with feedback where the control law is a form of a PID controller. Design using the Root Locus Method such that the: a. percent overshoot is less than 10% for a unit step b. settling time is less than 4 seconds, c. steady-state absolute error (not percent error) due to a unit ramp input (r=t) is less than 1. d. Note: The actuator u(t) saturates...
1. Consider the following closed-loop system. vlt) glt) The input-output relationship of the plant is described...
1. Consider the following closed-loop system. vlt) glt) The input-output relationship of the plant is described by the differential equation dy(t) -dt +2y(t) = 3r(t). The gain of the amplifier is K. Find the values of K for which the steady state error due to a step input is less than 1% of the amplitude of the step.
yUCni ias the block diagram shown below. Controller Process Sensor (a) (5%) Sketch the root locus of the closed-loop system. (b) (5%) Determine the range of K that the closed-loop system is stabl...
yUCni ias the block diagram shown below. Controller Process Sensor (a) (5%) Sketch the root locus of the closed-loop system. (b) (5%) Determine the range of K that the closed-loop system is stable. (c) (5%) Find the percentage of overshoot and the steady state error due to a unit step input of the open loop system process. (d) (5%) Find the steady-state error due to a unit step input of the closed-loop syste as a function of the design parameter...
Consider the closed-loop system shown in the following figure. RIS) Y(S) G(S) Let (52+1) 19. If...
Consider the closed-loop system shown in the following figure. RIS) Y(S) G(S) Let (52+1) 19. If the gain is changed from K= 6 to K=12, then the system steady-state output response for a unit-step input will improve by: Select one: o o o a. 33.33% b. 25% c. 50% o d. 75%
Problem 3 (25%): The closed-loop system has the block diagram shown below. Controlle Process Sensor s + l (a) (5%) Sketch the root locus of the closed-loop system. (b) (5%) Determine the range of...
Problem 3 (25%): The closed-loop system has the block diagram shown below. Controlle Process Sensor s + l (a) (5%) Sketch the root locus of the closed-loop system. (b) (5%) Determine the range of K that the closed-loop system is stable. (c) (5%) Find the percentage of overshoot and the steady state error due to a unit step input of the open loop system process. (d) (5%) Find the steady-state error due to a unit step input of the closed-loop...
please help to solve this. Thank you
Section B: Answer any 3 questions out of 4, each question carries 20 marks. Bl. When the system shown in figure (ə) is subjected to a unit-step input, the system output responds as shown in figure (b). Determine the values of K and T from the response curve. R(S) MTs + 1 (a) co 0.254
control system
Q4) Figure (a) and Figure (b) below show a system with a unit-step input, and the output time response respectively. From the response curve, determine the values of K and T shown in Figure (a)
A negative feedback closed-loop system shown in the figure below is subjected to an input of 5 V. Determine the output voltage (volts) if the system has a forward gain (G(s)) of 1 and feedback gain (H(s) of 1. R(S) - G(s) C($) HI O1V 071 2.5 V 5V
Please solve them on MATLAB
PROBLEM 1 A closed loop control system is depicted in Figure 1 where K 2 and the nominal value of a is 1. The goal in this problem is to examine the sensitivity of the whole system in Figure 1 to the parameter a (a) If a = 1, demonstrate explicitly that the steady state value of output is equal to 2 when input is unit step function. Confirm that, after 4 seconds, the unit...
Please solve with MATLAB, please solve with MATLAB
PROBLEM 1 A closed loop control system is depicted in Figure 1 where K 2 and the nominal value of a is 1. The goal in this problem is to examine the sensitivity of the whole system in Figure 1 to the parameter a. (a) If a 1, demonstrate explicitly that the steady state value of output is equal to 2 when input is unit step function. Confirm that, after 4 seconds,...
1. [25%] Consider the closed-loop system shown where it is desired to stabilize the system with feedback where the control law is a form of a PID controller. Design using the Root Locus Method such that the: a. percent overshoot is less than 10% for a unit step b. settling time is less than 4 seconds, c. steady-state absolute error (not percent error) due to a unit ramp input (r=t) is less than 1. d. Note: The actuator u(t) saturates...
1. Consider the following closed-loop system. vlt) glt) The input-output relationship of the plant is described by the differential equation dy(t) -dt +2y(t) = 3r(t). The gain of the amplifier is K. Find the values of K for which the steady state error due to a step input is less than 1% of the amplitude of the step.
yUCni ias the block diagram shown below. Controller Process Sensor (a) (5%) Sketch the root locus of the closed-loop system. (b) (5%) Determine the range of K that the closed-loop system is stable. (c) (5%) Find the percentage of overshoot and the steady state error due to a unit step input of the open loop system process. (d) (5%) Find the steady-state error due to a unit step input of the closed-loop syste as a function of the design parameter...
Consider the closed-loop system shown in the following figure. RIS) Y(S) G(S) Let (52+1) 19. If the gain is changed from K= 6 to K=12, then the system steady-state output response for a unit-step input will improve by: Select one: o o o a. 33.33% b. 25% c. 50% o d. 75%
Problem 3 (25%): The closed-loop system has the block diagram shown below. Controlle Process Sensor s + l (a) (5%) Sketch the root locus of the closed-loop system. (b) (5%) Determine the range of K that the closed-loop system is stable. (c) (5%) Find the percentage of overshoot and the steady state error due to a unit step input of the open loop system process. (d) (5%) Find the steady-state error due to a unit step input of the closed-loop...
