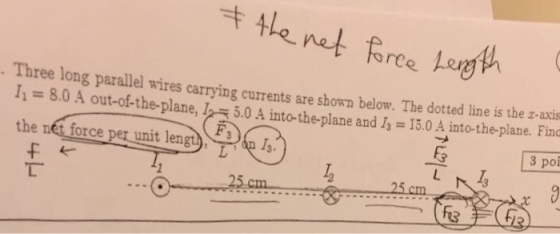

Three long parallel wires carrying currents are shown below. The dotted line is the x-axis I_1...

Question

Question

science physics

Answer 1

Answer #1

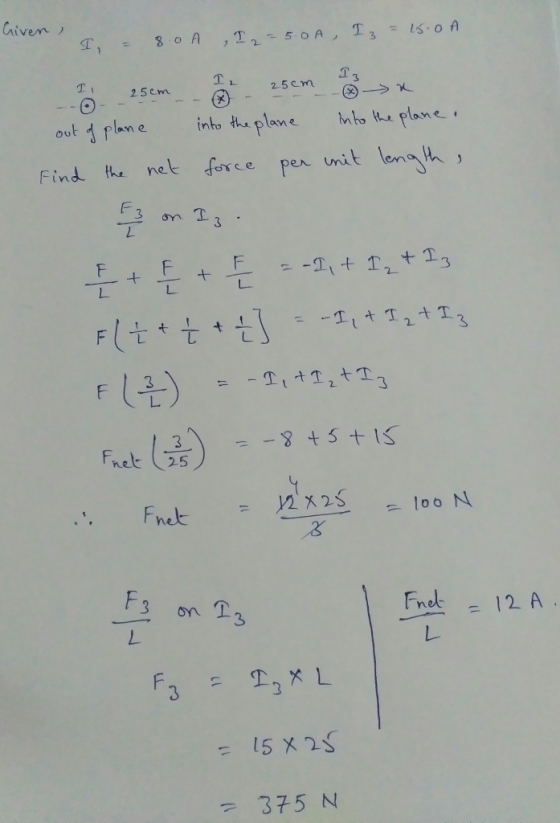

riven 3 25cm 25 cm out寸flmn e into tha plane nto he plane Find the net 3 3 nel 25 on 上 Fnel 3 375 N

Answer 2

Similar Homework Help Questions

In the figure below, five long parallel wires in an xy plane are separated by distance...

In the figure below, five long parallel wires in an xy plane are separated by distance d = 30.0 cm. The currents into the page are i_1 = 1.90 A, i_3 = 0.500 A, i_4 = 5.00 A, and i_5 = 1.90 A; the current out of the page is i_2 = 3.80 A. What is the magnitude of the net force per unit length acting on wire 3 due to the currents in the other wires?
Two long, parallel wires carry currents of I_1= 2.80 A and I_2 = 5.15 A in...

Two long, parallel wires carry currents of I_1= 2.80 A and I_2 = 5.15 A in the direction indicated in the figure below. (Choose the line running from wire 1 to wire 2 as the positive x-axis and the line running upward from wire 1 as the positive y-axis.) (Find the magnitude and direction of the magnetic field at a point midway between the wires (d = 20.0 cm). magnitude muT direction from the positive x-axis (Find the magnitude and...
Two long, parallel wires carry currents of I_1 = 2.96 A and I_2 = 4.85 A...

Two long, parallel wires carry currents of I_1 = 2.96 A and I_2 = 4.85 A in the direction indicated in the figure below. (Choose the line running from wire 1 to wire 2 as the positive x-axis and the line running upward from wire 1 as the positive y-axis.) (a) Find the magnitude and direction of the magnetic field at a point midway between the wires (d = 20.0 cm). magnitude mu T direction degree from the positive x-axis...

Two parallel wires L_1 = 0.6m and L_2 = 0.6m carrying currents I_1 = 1.2A upward...

Two parallel wires L_1 = 0.6m and L_2 = 0.6m carrying currents I_1 = 1.2A upward and I_2 = 3.6A downward, respectively. Calculate the force on wire 1 due to wire 2. Do the wires attract or repel each other?
Figure (a) shows, in cross section, two long, parallel wires carrying current and separated by distance...

Figure (a) shows, in cross section, two long, parallel wires carrying current and separated by distance L. The ratio i_1/i_2 of their currents is 5.10; the directions of the currents are not indicated. Figure (b) shows the y component B_y of their net magnetic field along the x axis to the right of wire 2. The vertical scale is set by B_ys = 5.8 nT, and the horizontal scale is set by x_s = 20.6 cm. At what value x...
Three parallel current-carrying wires are shown in the figure below. The currents in each wire are...

Three parallel current-carrying wires are shown in the figure below. The currents in each wire are I1 = 0.460 A, I2 = 0.710 A, and I3 = 0.260 A. If the wires are separated by distances r1 = 0.185 m and r2 = 0.290 m, find the net magnetic force per unit length on the middle wire due to the other wires. (Express your answer in vector form.)

Two long, parallel wires carry currents of I_1 = 2.70 A and I_2 = 4.80 A...

Two long, parallel wires carry currents of I_1 = 2.70 A and I_2 = 4.80 A in the directions indicated in the figure below, where d = 17.0 cm. (Take the positive x direction to be to the right.) Find the magnetic field at the midpoint of the wires (magnitude and direction) Find the magnetic field at the point "P" (magnitude and direction)
The figure below shows two long, straight wires carrying currents I_1 =1.80 A and I_2 =...

The figure below shows two long, straight wires carrying currents I_1 =1.80 A and I_2 = 5.50 A into the page. The wires are separated by a distance a = 1.30 m. (a) What are the magnitude and direction of the magnetic field at point A, halfway between the two wires? magnitude 1.14 mu T direction 0 degree counterclockwise from the +x axis (b) What are the magnitude and direction of the magnetic field at point B, at a distance...
Three long straight wires are parallel to the z-axis carrying equal currents of 10 A in...

Three long straight wires are parallel to the z-axis carrying equal currents of 10 A in the +z-direction and passing through the z 0 plane at points (x, y) (0, 0), (0, 20 cm), and (20 cm, 0). (a) What is the magnitude of the magnetic field at (20 cm, 20 cm)? (b) What is it at (10 cm, 10 cm)?

Two long straight current-carrying parallel wires cross the x axis and carry currents I and 3I...

Two long straight current-carrying parallel wires cross the x axis and carry currents I and 3I in the same direction, as shown. At what value of x is the net magnetic field zero?
