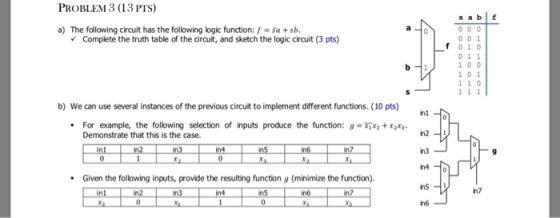

PROBLEM 3 (13 PTS) a) The following circuit has the following logic function: f = $a+sb. ✓ Complete the truth table of the ci
0 0
Add a comment Improve this question Transcribed image text
Request Professional Answer

Request Answer!

We need at least 10 more requests to produce the answer.

0 / 10 have requested this problem solution

The more requests, the faster the answer.

Request! (Login Required)


All students who have requested the answer will be notified once they are available.
Know the answer?
Add Answer to:
PROBLEM 3 (13 PTS) a) The following circuit has the following logic function: f = $a+sb....
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Similar Homework Help Questions
  • 4. Implement the function using only NOR gates (20 pts) (A B+C).D Sketch the logic gate...

    4. Implement the function using only NOR gates (20 pts) (A B+C).D Sketch the logic gate schematic and verify your circuit by truth table.

  • please answer Ouestion 6 - Boolean Functions and Digital Circuits [30% A function F takes 3...

    please answer Ouestion 6 - Boolean Functions and Digital Circuits [30% A function F takes 3 inputs x, y and z, and returns 1 if and only if exactly two of the inputs have value 1. Otherwise it returns 0. a. draw a truth table for F b. design a circuit to implement F Ouestion 6 - Boolean Functions and Digital Circuits [30% A function F takes 3 inputs x, y and z, and returns 1 if and only if...

  • Consider the following logic functions with a, b, c, d, e as logic inputs, x and...

    Consider the following logic functions with a, b, c, d, e as logic inputs, x and y as intermediate outputs, and fis the output. :=e(d + x) 5 a) Implement the logic function fas a 3-stage precharged dynamic complex CMOS circuit using inverter between two consecutive stages. b) Implement the logic function fas a 3-stage precharged dynamic complex CMOS circuit using NP logic

  • Multiplexer Example Implement the following Boolean function using a 4x1 Mux;

     Multiplexer Example Implement the following Boolean function using a 4x1 Mux;    F(x,y,z) = Σ (1,2,6,7) Decoder Example Implement the following functions for a full adder using decoder; S(x,y,z) = Σ (1,2,4,7) C(x,y,z) = Σ (3,5,6,7) Implement the following Boolean function; F(x,y,z) = Σ (0,2,3,7): Using; 1. Two 2x4 decoders and logic gates 2. One 4x1 multiplexer Decoder . Draw the truth table for the function to be implemented. . Pick the terms for output. . Derive appropriate logic to combine terms. . Use two 2x4 decoders to make one3x8 decoder. . Pay attention to fact...

  • Problem 3 (28 points) A. Consider the logic circuit below. VSS 10 V A D 1....

    Problem 3 (28 points) A. Consider the logic circuit below. VSS 10 V A D 1. Complete the truth table for the above logic circuit: C (V) В (V) D(V) A (V) 0 0 10 0 0 10 10 A Fall 2018 ECE 3710 10 pause 1 t shift 2. Write C and D as logie functions in terms of A and B. C- D- 3. What the type of logic gate is this with inputs A and B and...

  • There are two multiplexers in the following circuit. The three ports A, B, C are inputs,...

    There are two multiplexers in the following circuit. The three ports A, B, C are inputs, and s) uput(1) Write a truth table for the logic function Y F(A, B, C) of the following cirouit (2) ne inimized Boolean equation for the logic function. B C 01 10 ground P. (5 pts). Use a decoder to implement the following Boolean logic function: Y= AB+AC. Draw schematic of your circuit.

  • Design the logic circuit to display a 3 bit octal numbers from 0 to 7 on...

    Design the logic circuit to display a 3 bit octal numbers from 0 to 7 on a seven segment display shown below (for number 1 use segments b and c; for 6 include segment (a) Write the Truth Table with A, B. C representing the input bits (A is the MSB) and a, b, c, d, e, f and g representing the outputs to the seven segments. (b) Implement the circuit using a Programmable Logic Array (use simplified notation to...

  • PROBLEM 3 (16 PTS) ▪ With a D flip flop and logic gates, sketch the circuit...

    PROBLEM 3 (16 PTS) ▪ With a D flip flop and logic gates, sketch the circuit whose excitation equation is given by: PROBLEM 3 (16 PTS) • With a D flip flop and logic gates, sketch the circuit whose excitation equation is given by: Qit+1) + y + Q(t) + y(t) (4 pts) • Complete the timing diagram of the circuit whose VHDL description is shown below. Also, get the excitation equation for q. library ieee: elsaf (cll'event and clk...

  • Design a logic circuit to implement the following logical function X = A.B.C A.B.C

    Design a logic circuit to implement the following logical function X = A.B.C A.B.C

  • A combination circuit is specified by the following Boolean functions listed below. h(a, b, c) = b,c' + a'c Implement the circuit with a 3x8 decoder. Provide truth table and drawing the l...

    A combination circuit is specified by the following Boolean functions listed below. h(a, b, c) = b,c' + a'c Implement the circuit with a 3x8 decoder. Provide truth table and drawing the logic/circuit diagram. Use the block diagram for the decoder provided in Figure A4 in supplements. Please label the inputs and outputs clearly. Note: use single 3x8 decoder Question 2 (15 points] A priority encoder is an encoder circuit that includes the Truth Table of a priority function. The...
