Derive the Bernoulli equation, and derive the equations for reading the Volume flow rate (Q) using...
Derive the Bernoulli equation, and derive the
equations for reading the Volume flow rate (Q) using the
following.
- orifice
- venturi
- pitot
- coriolis

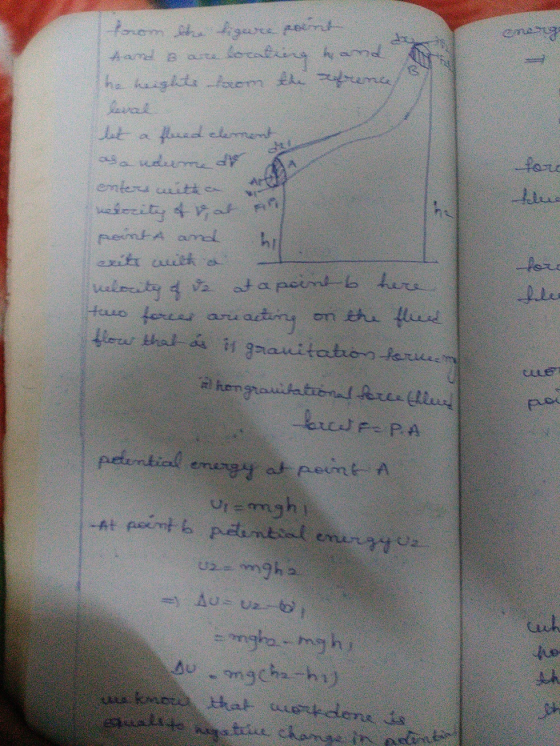

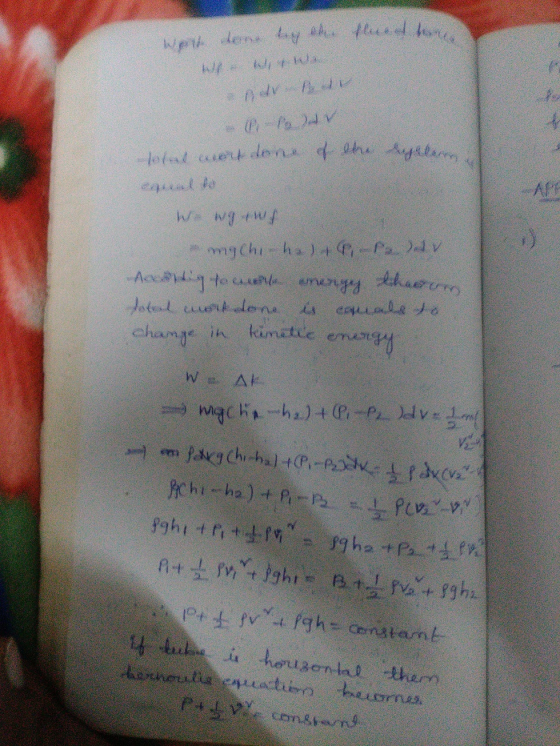

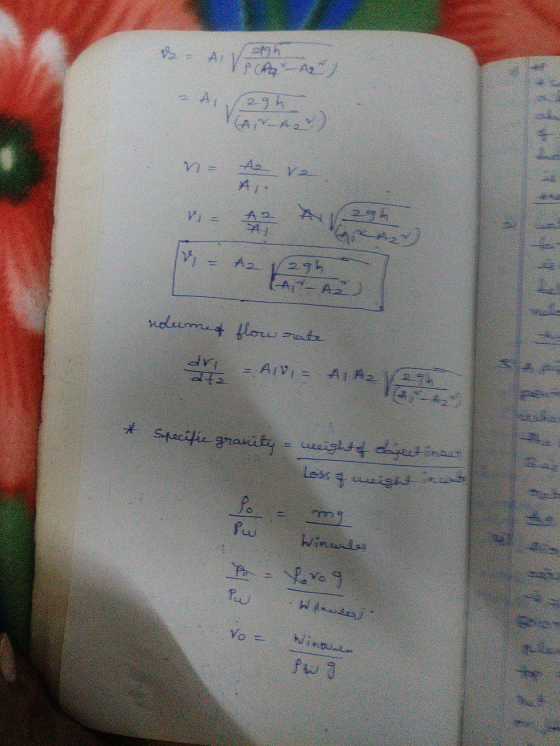

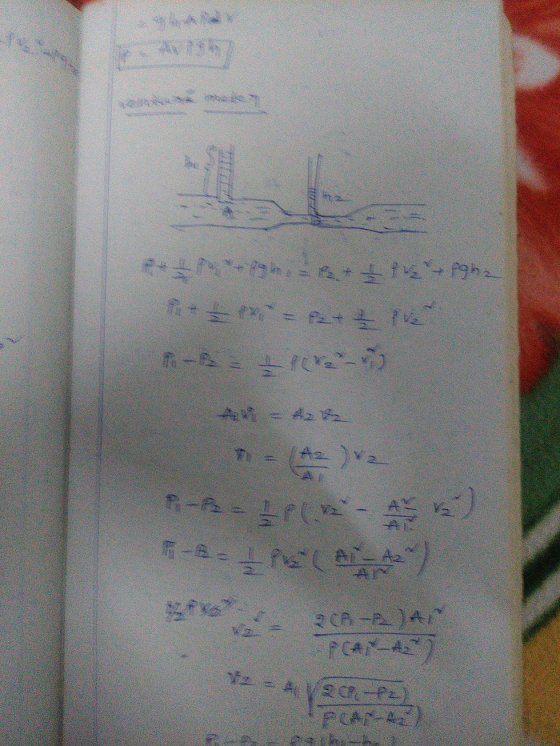

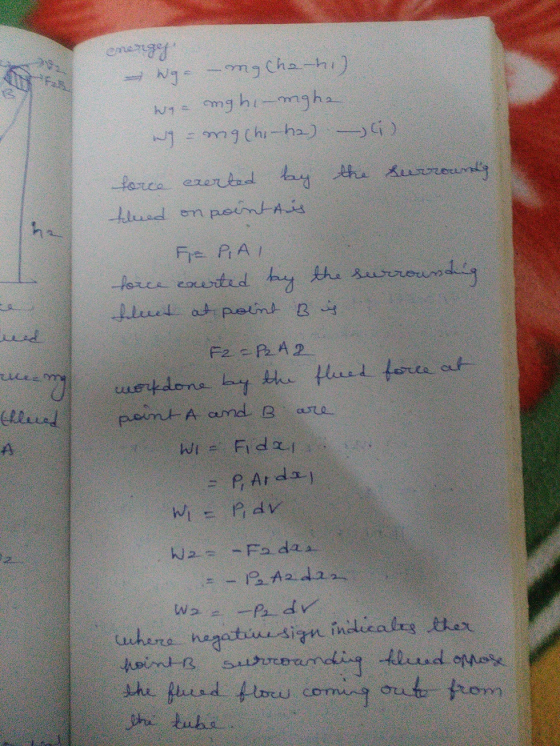

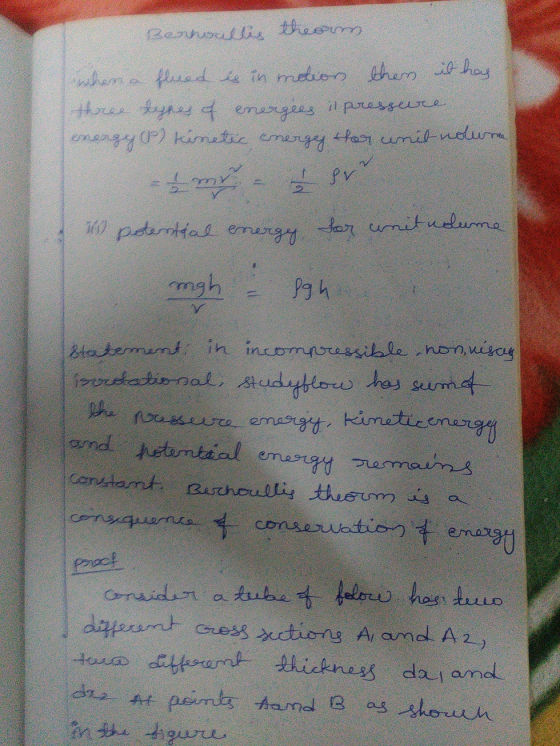

Homework Answers
Add Answer to:
Derive the Bernoulli equation, and derive the
equations for reading the Volume flow rate (Q) using...
How to use Bernoulli equation to derive air mass flow? Please give me a more detailed...
How to use Bernoulli equation to derive air mass flow?
Please give me a more detailed process, thank you very much
example:
tange * HTC2C155 2 pipe wall jave t r easure flow speed - decreases Tut de pressure or limites flow rate n orifice plate Few @EVA , van fit fege. Att 1 Pi-p= 2 I (Vok mys & A V2 = A prop (volume flow rate). ੨ Pvr ( 4 ) (-ਨਾ ਆ oh=fgh Water
Please derive the relation of the volume flow rate (Q) in terms of the diameters (D,...
Please derive the relation of the volume flow rate (Q) in terms of the diameters (D, and D2), the manometer height (h; and ha), and density ( ). Also compare the manometer height hand ha; which one is higher. Please sketch the height (hl and h2) and explain its reasoning. Venturi (1) (2)
Bernoulli equation. The Bernoulli equation is a special case of conservation of linear momentum law of...
Bernoulli equation. The Bernoulli equation is a special case of conservation of linear momentum law of conservation of energy) for steady frictionless flow. This equation can be arrived at in three different ways. The usual form of the Bernoulli equation is: 1. pv2 + P + ?9z-constant a) For frictionless flow at steady state, Euler's equation of conservation of linear momentum reduces to: Starting from this equation, derive the Bernoulli equation. Assume irrotational flow. Derive the Bernoulli equation using the...
Flow Measurement Methods Obiective: To demonstrate the use of a Rotameter and obstruction and an ...
can you please do the analysis for run# 2,3 and 4
Flow Measurement Methods Obiective: To demonstrate the use of a Rotameter and obstruction and an orifice plate meter) for flow rate measurements. Venturi & orifice meter dimensions Venturi meter pipe diameter = 26 mm and throat diameter= 16 mm Orifice meter pipe diameter 51.9 mm and throat diameter-20 mm Open the apparatus valve until the rotameter shows a reading of approximately 10 mm. Record the readings in the following...
a formula is given for the volumetric flow rate (picture), Q, as a function of density,...
a formula is given for the
volumetric flow rate (picture), Q, as a function of density, the
pressure difference, and the area ratio, for a venturi meter.
Derive a similar equation for a case when the venturi meter is
inclined at an angle θ, where the distance between points 1 and 2
in the meter is given by d.
1 1 P1 + 5 poi + pgyi = P2 + z poz + Pg42. M-es= 32 - I 1 1...
Use the method for solving bernoulli equations to solve Use the method for solving Bernoulli equations...
Use the method for solving bernoulli equations to solve
Use the method for solving Bernoulli equations to solve the following differential equation. Ignoring lost solutions, if any, the general solution is y=1. (Type an expression using x as the variable.)
Equations of Motion using Lagrange Equation Use Lagranges equations to derive the equations of motion for...
Equations of Motion using Lagrange Equation
Use Lagranges equations to derive the equations of motion for
the system.
2(P1-P) B4) Where (1 mark) (iii) Based on relation 1 above, write an expression for the...
2(P1-P) B4) Where (1 mark) (iii) Based on relation 1 above, write an expression for the volume flow rate for the two cases: a) Ignoring losses (0.5 mark) b) Accounting for the losses at the obstruction (0.5 mark) (iv) The value of The value of C (coefficient of discharge) depends on both B and the Reynolds number. Discuss this statement considering various types of obstruction meters. (0.5 mark) (V) The flow rate of methanol at 20°C (p=788.4 kg/m3 and -5.857...
Use the method for solving Bernoulli equations to solve the following differential equation. Use the method...
Use the method for solving Bernoulli equations to solve the
following differential equation.
Use the method for solving Bernoulli equations to solve the following differential equation. dx dt 79 X + t' xº + - = 0 t C, where C is an arbitrary constant. Ignoring lost solutions, if any, an implicit solution in the form F(t,x) = C is (Type an expression using t and x as the variables.)
Derive time equation but for that first we have to derive acceleration using the following equations:...
Derive time equation but for that first we have to derive acceleration using the following equations: [1] mg*sin(θ) – fs = ma [2] Rfs = Iα [3] I = cmR2 [4] α = a/R Once we have derived acceleration in terms of sin(θ), g, and c , we are then asked to derive time based on kinematic equation. The time equation should be based on of y, c, g, and d. d=length of Ramp.y=Height of ramp.
How to use Bernoulli equation to derive air mass flow?
Please give me a more detailed process, thank you very much
example:
tange * HTC2C155 2 pipe wall jave t r easure flow speed - decreases Tut de pressure or limites flow rate n orifice plate Few @EVA , van fit fege. Att 1 Pi-p= 2 I (Vok mys & A V2 = A prop (volume flow rate). ੨ Pvr ( 4 ) (-ਨਾ ਆ oh=fgh Water
Please derive the relation of the volume flow rate (Q) in terms of the diameters (D, and D2), the manometer height (h; and ha), and density ( ). Also compare the manometer height hand ha; which one is higher. Please sketch the height (hl and h2) and explain its reasoning. Venturi (1) (2)
Bernoulli equation. The Bernoulli equation is a special case of conservation of linear momentum law of conservation of energy) for steady frictionless flow. This equation can be arrived at in three different ways. The usual form of the Bernoulli equation is: 1. pv2 + P + ?9z-constant a) For frictionless flow at steady state, Euler's equation of conservation of linear momentum reduces to: Starting from this equation, derive the Bernoulli equation. Assume irrotational flow. Derive the Bernoulli equation using the...
can you please do the analysis for run# 2,3 and 4
Flow Measurement Methods Obiective: To demonstrate the use of a Rotameter and obstruction and an orifice plate meter) for flow rate measurements. Venturi & orifice meter dimensions Venturi meter pipe diameter = 26 mm and throat diameter= 16 mm Orifice meter pipe diameter 51.9 mm and throat diameter-20 mm Open the apparatus valve until the rotameter shows a reading of approximately 10 mm. Record the readings in the following...
a formula is given for the
volumetric flow rate (picture), Q, as a function of density, the
pressure difference, and the area ratio, for a venturi meter.
Derive a similar equation for a case when the venturi meter is
inclined at an angle θ, where the distance between points 1 and 2
in the meter is given by d.
1 1 P1 + 5 poi + pgyi = P2 + z poz + Pg42. M-es= 32 - I 1 1...
Use the method for solving bernoulli equations to solve
Use the method for solving Bernoulli equations to solve the following differential equation. Ignoring lost solutions, if any, the general solution is y=1. (Type an expression using x as the variable.)
Equations of Motion using Lagrange Equation
Use Lagranges equations to derive the equations of motion for
the system.
2(P1-P) B4) Where (1 mark) (iii) Based on relation 1 above, write an expression for the volume flow rate for the two cases: a) Ignoring losses (0.5 mark) b) Accounting for the losses at the obstruction (0.5 mark) (iv) The value of The value of C (coefficient of discharge) depends on both B and the Reynolds number. Discuss this statement considering various types of obstruction meters. (0.5 mark) (V) The flow rate of methanol at 20°C (p=788.4 kg/m3 and -5.857...
Use the method for solving Bernoulli equations to solve the
following differential equation.
Use the method for solving Bernoulli equations to solve the following differential equation. dx dt 79 X + t' xº + - = 0 t C, where C is an arbitrary constant. Ignoring lost solutions, if any, an implicit solution in the form F(t,x) = C is (Type an expression using t and x as the variables.)
