The

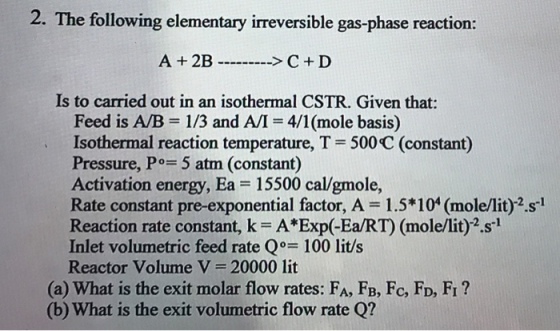

following elementary gas phase reaction
A+2B—>C+D
Feed is A/B= 1/3 mol A/I =4/1 (mole basis)...
The elementary gas phase reaction (A <--> 2B) is to be carried out in an adiabatic...
The elementary gas phase reaction (A <--> 2B) is to be carried out in an adiabatic CSTR. The feed which is at a temperature of 27oC, consists of 80% of A and the remainder inerts. The volumetric flow rate entering the reactor at this temperature is 100 l/min. The concentration of A in the feed at 27oC is 0.5 mol/liter. For 80% of the adiabatic equilibrium conversion, calculate the required reactor volume. DATA: CpA=12 J/mol.K; CpB=10 J/mol.K; CpI=15 J/mol.K deltaHrxn=-75000...
Question 1: Design of isothermal reactors 30 Marks The irreversible, gas-phase reaction A+B D is to be carried out...
Question 1: Design of isothermal reactors 30 Marks The irreversible, gas-phase reaction A+B D is to be carried out in an isotherma °C) plug-flow reactor (PFR) at 5.0 atm. The mole fractions of the feed streams are A 0 B 0.50, and inerts 0.30. The activation energy for the above reaction is 80 000 cal/mol. the pressure drop due to fluid friction in the reactor is so small that it can be ignored, perform the following tasks: 2T a s...
PROBLEM 1 The elementary liquid phase irreversible reaction (A + B -> C) is to be...
PROBLEM 1 The elementary liquid phase irreversible reaction (A + B -> C) is to be carried out in a flow reactor. An equimolar feed with A and B enters the reactor at 300K at a volumetric flow rate of 2 L/s, and feed molar concentration of A equal to 0.1 kmol/m3 a. A. Calculate the conversion of A that can be achieved in one 500 Liter Mixed Flow Reactor under adiabatic conditions. b. Calculate the conversion of A that...
Note: The following information may or may not be used in solving the problems. Gas constant, R=8.314 kPa L/(mol K...
Note: The following information may or may not be used in solving the problems. Gas constant, R=8.314 kPa L/(mol K) (1-)|150(1-φ)4+1. PgeDpa where is porosity, p is gas density, dP G The Ergun equation: Dp dz p is gas viscosity, G is superficial mass velocity, and D, is particle diameter. 5. (20 pts.) Consider a dehydrogenation of alkane (A B+C) in an inert membrane reactor with catalyst pellets on the feed side. The reactor has an inner diameter of 1...
PROBLEM 2 The elementary liquid phase irreversible reaction (A+B -> C) takes place in a 1...
PROBLEM 2 The elementary liquid phase irreversible reaction (A+B -> C) takes place in a 1 m² Mixed Flow Reactor with the equimolar mixture of A and B at the volumetric feed flow rate of 0.5 m3/min, the feed concentration of A equal to 1 mol/L, and the feed temperature of 300K. When the reaction takes place under isothermal conditions at 300K the conversion of A is 30%. When the reaction takes place adiabatically the exit temperature is 350K and...
An acid-catalyzed irreversible liquid-phase reaction A B is carried out adiabatically in a CSTR. The reaction is second...
An acid-catalyzed irreversible liquid-phase reaction A B is carried out adiabatically in a CSTR. The reaction is second order in A. The feed is equimolar A and solvent (S, which contains catalyst), and enters the reactor at a total volumetric flow rate of 10 dm3/min at a concentration of A of 4 mol/L. The feed enters at 300 K. The product and reactant heat capacities are 15 cal/(mol°C), the solvent is 18 cal/(mol°C). The reaction rate constant at 300 K...
QUESTION 5: 10 marks An elementary aqueous phase reaction A --> B+C is to be carried...
QUESTION 5: 10 marks An elementary aqueous phase reaction A --> B+C is to be carried out in 10 points a non-ideal CSTR which has both bypassing and a dead zone in it. The measured liquid volume in the reactor is 500 dm3 and the volumetric flow rate to the reactor is 10 dm3/min with a concentration of A as Imol/dm3. The reaction rate constant is 0.5 min^-1. a) Calculate the conversion that can be expected in this reactor if...
QUESTION 2: Design of Multiple Reactors: 30 marks B +C was a a) An elementary reaction...
QUESTION 2: Design of Multiple Reactors: 30 marks B +C was a a) An elementary reaction A reaction A B +C was carried out in a reactor system using an ideal STR followed by an ideal PER Isothermany. The rate constant is k = 0.4 min ". The volumetric flow rate is 20 L/min. The concentration of A in the feed is 5 moles/L. 1. Calculate the volume of the CSTR necessary to achieve a conversion of 50%. (7 marks)...
The elementary irreversible organic liquid-phase reaction. a+b==>c is carried out adiabatically in a flow reactor. An...
The elementary irreversible organic liquid-phase reaction. a+b==>c is carried out adiabatically in a flow reactor. An equal molar feed in A and 8 enters at 27'C, and the volumetric flow rate is 2 dm3/sa nd CAo= 0.I k molfm3 graphically.on exal
The following first-order gas-phase reaction occurs in an isothermal, isobaric PFR reactor: A->2B. There is 60%...
The following first-order gas-phase reaction occurs in an isothermal, isobaric PFR reactor: A->2B. There is 60% A and 40% inert in the initial feed. If the volumetric flow rate at the outlet of the reactor is 1.3 times of the one at entrance, calculate the conversion rate of the reactor. Assume ideal gas law (PQ = NRT)
Question 1: Design of isothermal reactors 30 Marks The irreversible, gas-phase reaction A+B D is to be carried out in an isotherma °C) plug-flow reactor (PFR) at 5.0 atm. The mole fractions of the feed streams are A 0 B 0.50, and inerts 0.30. The activation energy for the above reaction is 80 000 cal/mol. the pressure drop due to fluid friction in the reactor is so small that it can be ignored, perform the following tasks: 2T a s...
PROBLEM 1 The elementary liquid phase irreversible reaction (A + B -> C) is to be carried out in a flow reactor. An equimolar feed with A and B enters the reactor at 300K at a volumetric flow rate of 2 L/s, and feed molar concentration of A equal to 0.1 kmol/m3 a. A. Calculate the conversion of A that can be achieved in one 500 Liter Mixed Flow Reactor under adiabatic conditions. b. Calculate the conversion of A that...
Note: The following information may or may not be used in solving the problems. Gas constant, R=8.314 kPa L/(mol K) (1-)|150(1-φ)4+1. PgeDpa where is porosity, p is gas density, dP G The Ergun equation: Dp dz p is gas viscosity, G is superficial mass velocity, and D, is particle diameter. 5. (20 pts.) Consider a dehydrogenation of alkane (A B+C) in an inert membrane reactor with catalyst pellets on the feed side. The reactor has an inner diameter of 1...
PROBLEM 2 The elementary liquid phase irreversible reaction (A+B -> C) takes place in a 1 m² Mixed Flow Reactor with the equimolar mixture of A and B at the volumetric feed flow rate of 0.5 m3/min, the feed concentration of A equal to 1 mol/L, and the feed temperature of 300K. When the reaction takes place under isothermal conditions at 300K the conversion of A is 30%. When the reaction takes place adiabatically the exit temperature is 350K and...
An acid-catalyzed irreversible liquid-phase reaction A B is carried out adiabatically in a CSTR. The reaction is second order in A. The feed is equimolar A and solvent (S, which contains catalyst), and enters the reactor at a total volumetric flow rate of 10 dm3/min at a concentration of A of 4 mol/L. The feed enters at 300 K. The product and reactant heat capacities are 15 cal/(mol°C), the solvent is 18 cal/(mol°C). The reaction rate constant at 300 K...
QUESTION 5: 10 marks An elementary aqueous phase reaction A --> B+C is to be carried out in 10 points a non-ideal CSTR which has both bypassing and a dead zone in it. The measured liquid volume in the reactor is 500 dm3 and the volumetric flow rate to the reactor is 10 dm3/min with a concentration of A as Imol/dm3. The reaction rate constant is 0.5 min^-1. a) Calculate the conversion that can be expected in this reactor if...
QUESTION 2: Design of Multiple Reactors: 30 marks B +C was a a) An elementary reaction A reaction A B +C was carried out in a reactor system using an ideal STR followed by an ideal PER Isothermany. The rate constant is k = 0.4 min ". The volumetric flow rate is 20 L/min. The concentration of A in the feed is 5 moles/L. 1. Calculate the volume of the CSTR necessary to achieve a conversion of 50%. (7 marks)...
