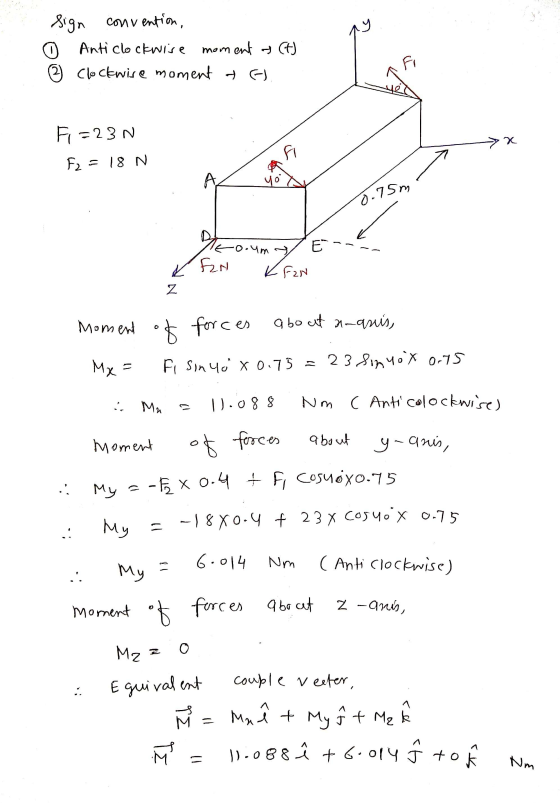

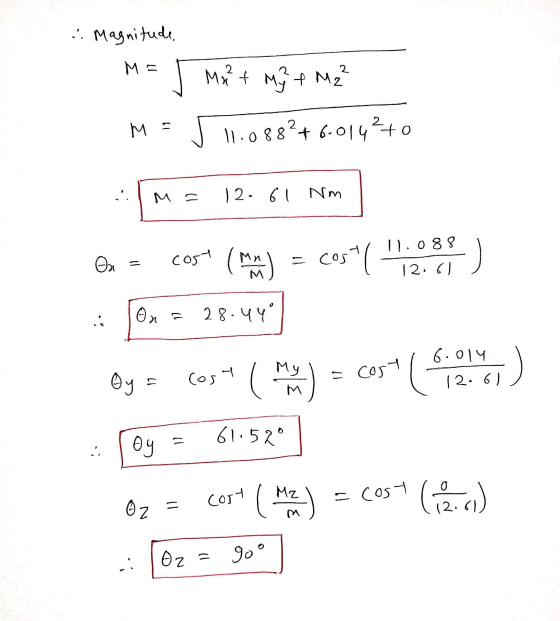

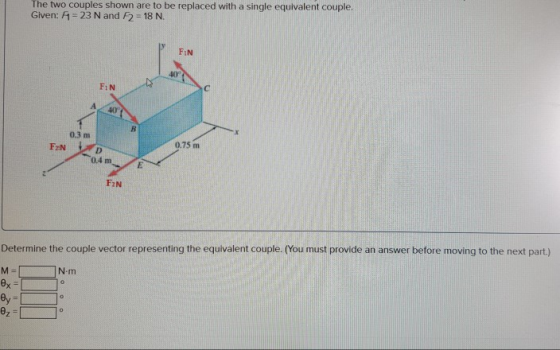

The two couples shown are to be replaced with a single equivalent couple. Given: =...
Replace the two couples shown with a single equivalent couple, specifying its magnitude and the direction of its axis. T...
Replace the two couples shown with a single equivalent couple, specifying its magnitude and the direction of its axis. The photo is at this link. imageshack.us/a/img22/5797/randomwz.jpg thanks!
Given: The plate is subjected to the couples and forces shown (P = 0 N). The...
Given: The plate is subjected to the couples and forces shown (P = 0 N). The couple @ F is 42 N.m CCw and the couple @H is 40 N m CCW Find: The plate is to be held in place by one rivet that can resist a force but not a couple. Determine the location of the rivet hole along the line that passes through FG relative to the top of the plate (ED) such that the plate would...
Couples Use the sub navigation below to navigate within this series of questions answer & continue...
Couples Use the sub navigation below to navigate within this series of questions answer & continue > A worker triesto move 8 rock by applyingゅ400-N force P to a steel ber 8$ $hown. 0.4 m 0.35 m ID 0.3 m 730 2.4 m References eBook& Resources Section Break Difficulty: Medium Required information 3.84 points Replace that force with an equivalent force-couple system at D. (Round the final answer to one decimal place.) (You must provide an answer before moving to...
A 3.5-kg slender rod AB and a 2-kg slender rod BC are connected by a pin at Band by the cord AC. The assembly can rota...
A 3.5-kg slender rod AB and a 2-kg slender rod BC are connected by a pin at Band by the cord AC. The assembly can rotate in a vertical plane under the combined effect of gravity and a couple M applied to rod BC. In the position shown, the angular velocity of the assembly is zero and the tension in cord AC is equal to 271 N. 400 mm 400 mm 300 mm A Problem 16.090.a - Rotation about a...
The position of the automobile jack shown is controlled by a screw ABC that is single...
The position of the automobile jack shown is controlled by a
screw ABC that is single threaded at each end
(right-handed thread at A, left-handed thread at
C). Each thread has a pitch of 2.5 mm and a mean diameter
of 10 mm. If the coefficient of static friction is 0.15, determine
the magnitude of the couple M that must be applied
to raise the automobile.
3500 N D С М А 30° В 30° E
HW Bearlngs Required information A 02-series single-row deeo-groove oall bearing is to oe selected trom lable...
HW Bearlngs Required information A 02-series single-row deeo-groove oall bearing is to oe selected trom lable 11-2 tor t conditions specited in the tableme Talble 11-1 is applicable if needed The value of raa oad Fr 8 kN, axial load Fa kN, design life LD10ringrotation factor V12 and eliability R 0.9a NOTE: This is a mult-part question. Once an answer is submitted, you will be unable to return to this part. the application 25 poimts Assuming that the values taken...
(a) "wrong" (b) (c) At the instant shown, the angular velocity of rod BE is 3.2...
(a)
"wrong"
(b)
(c)
At the instant shown, the angular velocity of rod BE is 3.2 rad/s counterclockwise. 192 mm 240 mm 30° 360 mm Determine the angular velocity of rod AD. (You must provide an answer before moving on to the next part.) The angular velocity of rod AD is 2.52 rad/s Determine the velocity of collar D. (You must provide an answer before moving on to the next part.) The velocity of collar D ism/s I Determine the...
3) For the single degree of freedom system shown below: a) Use the equivalent system method...
3) For the single degree of freedom system shown below: a) Use the equivalent system method to derive the differential equation governing the motion of the system, taking χ as the Slender har of mass m generalized coordinate. Rigid 1 link b) If m-6 kg, M = 10 kg, and k=500 N/m, determine the value of c that makes the system critically damped. c) For the values obtained in part (b), determine the response of the system, x(t) if x(0)=...
The instant shown, bar AB has an angular velocity of 4.5 rad/s and an angular acceleration...
The instant shown, bar AB has an angular velocity of 4.5 rad/s and an angular acceleration of 2.4 rad/s2, both clockwise. 25 in. - 20 in. 20 in. - Determine the angular acceleration of bar BD by using the vector approach. (You must provide an answer before moving to the next part.) The angular acceleration of bar BD is r r ad/s2 counterclockwise.
Consider a block placed on an inclined plane as shown in the figure. Given, P= 80...
Consider a block placed on an inclined plane as shown in the figure. Given, P= 80 lb and W= 50 lb. Hi = 0.40 li = 0.30 P 30° eBook & Resources THE LAWS OF DRY FRICTION value: 12.50 points Determine the magnitude of the friction force of the block. (Round the final answer to one decimal place.) (You must provide an answer before moving to the next part.) The magnitude of the friction force is lb 30°
Given: The plate is subjected to the couples and forces shown (P = 0 N). The couple @ F is 42 N.m CCw and the couple @H is 40 N m CCW Find: The plate is to be held in place by one rivet that can resist a force but not a couple. Determine the location of the rivet hole along the line that passes through FG relative to the top of the plate (ED) such that the plate would...
Couples Use the sub navigation below to navigate within this series of questions answer & continue > A worker triesto move 8 rock by applyingゅ400-N force P to a steel ber 8$ $hown. 0.4 m 0.35 m ID 0.3 m 730 2.4 m References eBook& Resources Section Break Difficulty: Medium Required information 3.84 points Replace that force with an equivalent force-couple system at D. (Round the final answer to one decimal place.) (You must provide an answer before moving to...
A 3.5-kg slender rod AB and a 2-kg slender rod BC are connected by a pin at Band by the cord AC. The assembly can rotate in a vertical plane under the combined effect of gravity and a couple M applied to rod BC. In the position shown, the angular velocity of the assembly is zero and the tension in cord AC is equal to 271 N. 400 mm 400 mm 300 mm A Problem 16.090.a - Rotation about a...
The position of the automobile jack shown is controlled by a
screw ABC that is single threaded at each end
(right-handed thread at A, left-handed thread at
C). Each thread has a pitch of 2.5 mm and a mean diameter
of 10 mm. If the coefficient of static friction is 0.15, determine
the magnitude of the couple M that must be applied
to raise the automobile.
3500 N D С М А 30° В 30° E
HW Bearlngs Required information A 02-series single-row deeo-groove oall bearing is to oe selected trom lable 11-2 tor t conditions specited in the tableme Talble 11-1 is applicable if needed The value of raa oad Fr 8 kN, axial load Fa kN, design life LD10ringrotation factor V12 and eliability R 0.9a NOTE: This is a mult-part question. Once an answer is submitted, you will be unable to return to this part. the application 25 poimts Assuming that the values taken...
(a)
"wrong"
(b)
(c)
At the instant shown, the angular velocity of rod BE is 3.2 rad/s counterclockwise. 192 mm 240 mm 30° 360 mm Determine the angular velocity of rod AD. (You must provide an answer before moving on to the next part.) The angular velocity of rod AD is 2.52 rad/s Determine the velocity of collar D. (You must provide an answer before moving on to the next part.) The velocity of collar D ism/s I Determine the...
3) For the single degree of freedom system shown below: a) Use the equivalent system method to derive the differential equation governing the motion of the system, taking χ as the Slender har of mass m generalized coordinate. Rigid 1 link b) If m-6 kg, M = 10 kg, and k=500 N/m, determine the value of c that makes the system critically damped. c) For the values obtained in part (b), determine the response of the system, x(t) if x(0)=...
The instant shown, bar AB has an angular velocity of 4.5 rad/s and an angular acceleration of 2.4 rad/s2, both clockwise. 25 in. - 20 in. 20 in. - Determine the angular acceleration of bar BD by using the vector approach. (You must provide an answer before moving to the next part.) The angular acceleration of bar BD is r r ad/s2 counterclockwise.
Consider a block placed on an inclined plane as shown in the figure. Given, P= 80 lb and W= 50 lb. Hi = 0.40 li = 0.30 P 30° eBook & Resources THE LAWS OF DRY FRICTION value: 12.50 points Determine the magnitude of the friction force of the block. (Round the final answer to one decimal place.) (You must provide an answer before moving to the next part.) The magnitude of the friction force is lb 30°
