Replace the two couples shown with a single equivalent couple, specifying its magnitude and the direction of its axis. T...
Homework Answers
Add Answer to:
Replace the two couples shown with a single equivalent couple, specifying its magnitude and the direction of its axis. T...
static The two couples shown are to be replaced with a single equivalent couple. Given: =...
static

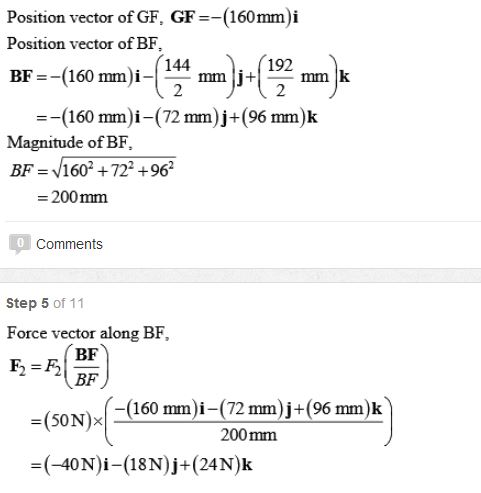

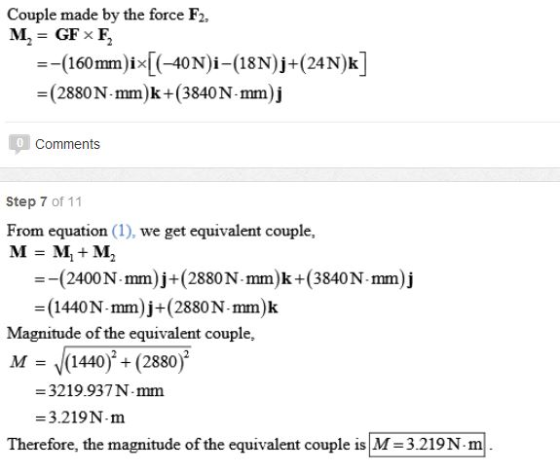

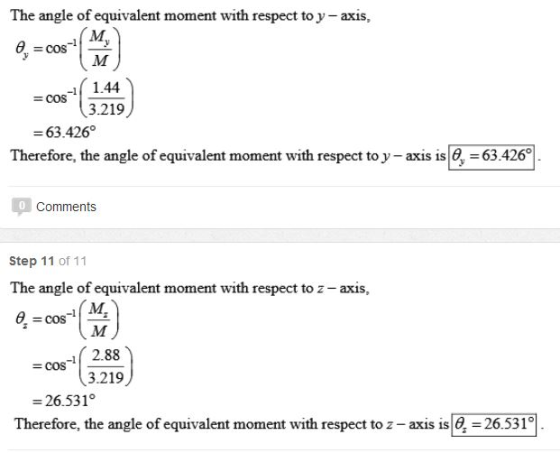

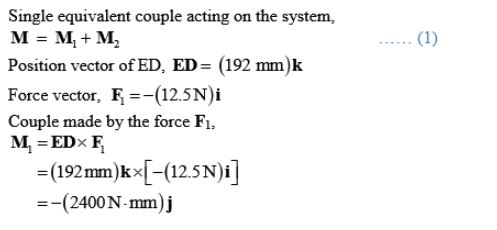

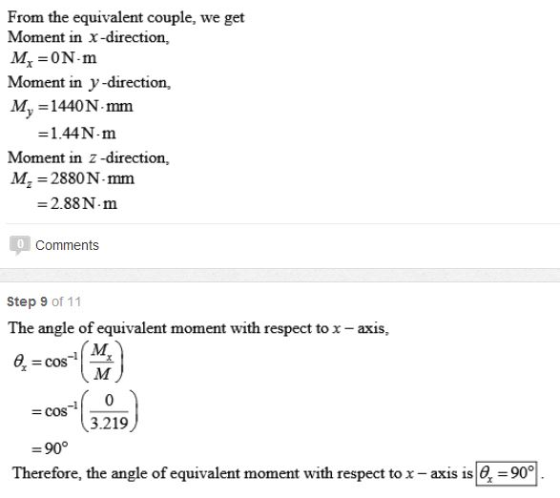

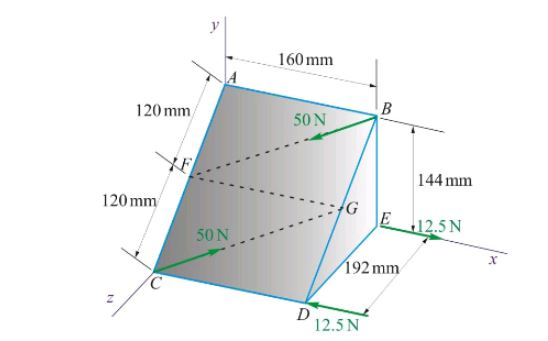

The two couples shown are to be replaced with a single equivalent couple. Given: = 23 N and F2 = 18 N. F2N Determine the couple vector representing the equivalent couple. (You must provide an answer before moving to the next part.) N.m M= ex= By = 02=
Force Couples and Moments
Shafts A and B connect the gearbox to the wheel assemblies of a tractor, and shaft C connects it to the engine. Shafts A and B lie in the vertical yz plane, while shaft C is directed along the x-axis. Replace the couples applied to the shafts with a single equivalent couple, specifying its magnitude and direction of its axis.Answer is: M= 2860Nm= 113.0 degrees= 92.7 degrees= 23.2 degrees
Replace the given loads with an equivalent force-couple system at O by specifying the resultant R...
Replace the given loads with an equivalent force-couple system at O by specifying the resultant R and couple Mo. Next, determine the equation for the line of action of the stand-alone resultant force R. 1.1 m 0.30 m J001 0.7 /5.4 kN / m m1.6 m 75 14 kN-m 10.7 kN 7.0 kN0.30 m Answers: Equivalent force-couple system at O R = 8.79 +2.355 kN Mo =T 19.1502 KN·m The equation for the line of action of the stand-alone resultant...
Replace the loading system shown by an equivalent resultant force and couple moment acting at point...
Replace the loading system shown by an equivalent resultant
force and couple moment acting at point A.
If possible please show steps, Thanks!
50 Iь 50 lb
Two couples act on the cantilevered beam as shown. Find the magnitude of F so that the resultant couple moment is 500 lb-ft.
Two couples act on the cantilevered beam as shown. Find the magnitude of F so that the resultant couple moment is 500 lb-ft.
2. Replace the two forces and the couple applied to the pipe assembly with a single...
2. Replace the two forces and the couple applied to the pipe assembly with a single equivalent force and couple system at the base O. The equivalent system will case the same reactions from the base. Use Cartesian notation. 50 lb X 40 lb-ft 60 lb 15" 12"
a) Replace the loading acting on the beam by an equivalent force and a couple moment...
a) Replace the loading acting on the beam by an equivalent force and a couple moment at point A b) Show the equivalent force Fr, its two components, the angle e, and the moment on an xy coordinate where A is the origin of the xy axis. 3 kN 2.5 kN 1.5 kN 1. 2m 4 m - 2 m
Replace the loading system shown by an equivalent resultant force and couple moment acting at point A.
Replace the loading system shown by an equivalent resultant force and couple moment
acting at point A.
Replace the two forces which act on the 2.6-m cube by an equivalent single force R at A and a...
Replace the two forces which act on the 2.6-m cube by an equivalent single force R at A and a couple M.
four forces are applied to the machine component ABDE as shown. Replace the forces by an equivalent force couple system...
four forces are applied to the machine component ABDE as shown. Replace the forces by an equivalent force couple system at A
static
The two couples shown are to be replaced with a single equivalent couple. Given: = 23 N and F2 = 18 N. F2N Determine the couple vector representing the equivalent couple. (You must provide an answer before moving to the next part.) N.m M= ex= By = 02=
Replace the given loads with an equivalent force-couple system at O by specifying the resultant R and couple Mo. Next, determine the equation for the line of action of the stand-alone resultant force R. 1.1 m 0.30 m J001 0.7 /5.4 kN / m m1.6 m 75 14 kN-m 10.7 kN 7.0 kN0.30 m Answers: Equivalent force-couple system at O R = 8.79 +2.355 kN Mo =T 19.1502 KN·m The equation for the line of action of the stand-alone resultant...
Replace the loading system shown by an equivalent resultant
force and couple moment acting at point A.
If possible please show steps, Thanks!
50 Iь 50 lb
2. Replace the two forces and the couple applied to the pipe assembly with a single equivalent force and couple system at the base O. The equivalent system will case the same reactions from the base. Use Cartesian notation. 50 lb X 40 lb-ft 60 lb 15" 12"
a) Replace the loading acting on the beam by an equivalent force and a couple moment at point A b) Show the equivalent force Fr, its two components, the angle e, and the moment on an xy coordinate where A is the origin of the xy axis. 3 kN 2.5 kN 1.5 kN 1. 2m 4 m - 2 m
