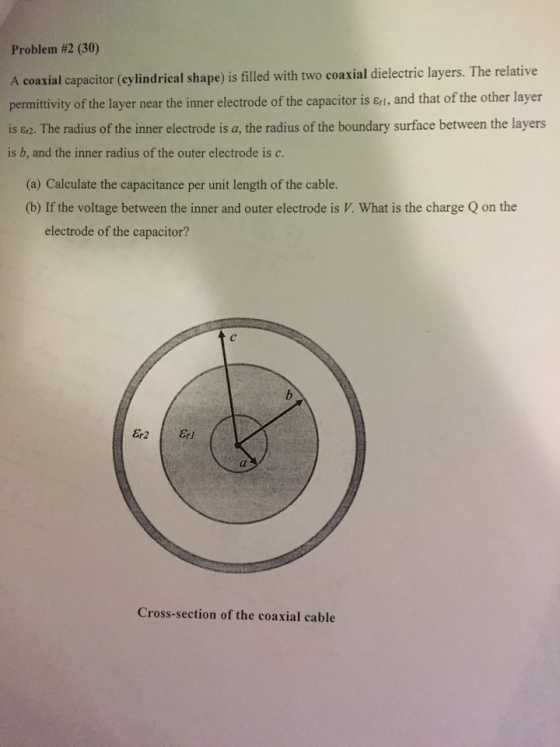

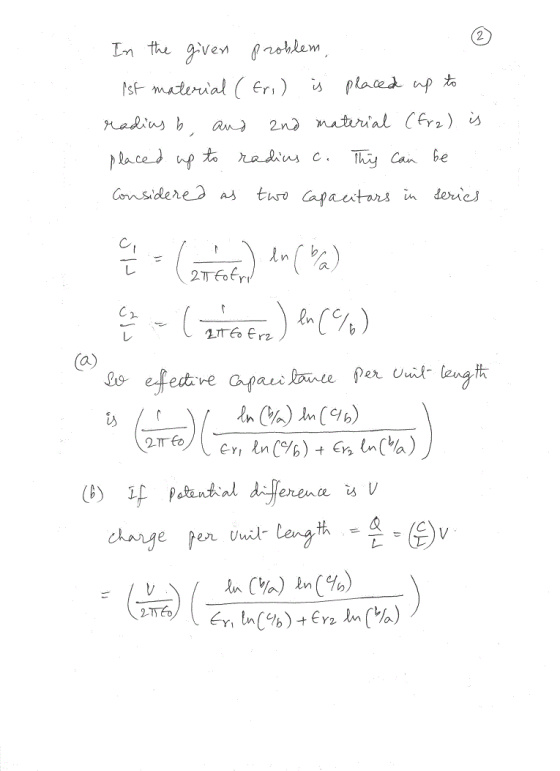

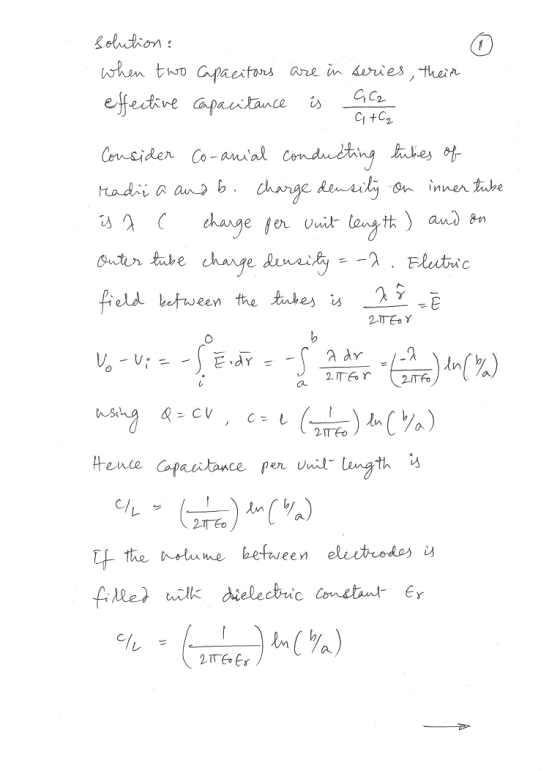

A coaxial capacitor (cylindrical shape) is filled with two coaxial dielectric lasers. The relative permittivity of...
A long cylindrical coaxial capacitor of length ?, has an inner radius ? and an outer...
A long cylindrical coaxial capacitor of length ?, has an inner radius ? and an outer radius ?, as shown in figure (4). The capacitor is filled with one layers of an isotropic and homogenous dielectric with permittivity of 4??. If the voltage of the inner electrode is maintained at ?? while the outer electrode is earthed, calculate the following: a) Electric flux density and the electric field intensity in whole space b) The equation that describe the voltage between...
Problem 2: Consider a coaxial cable with an inner conductor radius of a and outer conductor...
Problem 2: Consider a coaxial cable with an inner conductor radius of a and outer conductor radius of b. The region between the conductors is filled with a linear dielectric material that has a relative permittivity er (recall, ε = Er €0). A voltage V is applied to a length h of the cable, resulting in a free-charge of qf residing on the inner conductor and -9f residing on the outer conductor. Part a Determine the D, E, and P...
A coaxial line with cylindrical symmetry as shown in cross section by Figure A1-1. It is...
A coaxial line with cylindrical symmetry as shown in cross section by Figure A1-1. It is constructed from a solid inner conductor of radius a, a hollow outer conductor of internal radiusb and is filled with a dielectric having relative permittivity & 2b 2a Figure A1-1: Cross section of a coaxial transmission line (a) Draw lines of electric and magnetic flux for a coaxial transmission line. (4 marks) (b) Use Gauss' Law and a relationship between electric field and voltage...
Solve Laplace’s equation in cylindrical coordinates to obtain the potential function inside of a ...
Solve Laplace’s equation in cylindrical coordinates to obtain the potential function inside of a coaxial cable, having inner radius a and outer radius b. The cable is filled with a dielectric having a relative permittivity εr. The potential on the inner conductor is V0 volts, while the outer conductor (the shield) has a potential of zero volts. Note that the potential should only be a function of the radial distance ρ.
7.U)A cylindrical capacitor of length L consists of coaxial conducting surfaces of radii a and b...
7.U)A cylindrical capacitor of length L consists of coaxial conducting surfaces of radii a and b (Fig. 4). The dielectric material between the surfaces has a relative permittivity s, 2+(4/r) for a <r< b. (a) Determine the capacitance of this capacitor. (b) Find the electrostatic energy stored in the dielectric region. (Neglect the fringing of the electric field at the edge.) (1490) If the constant electric field in Fig. 5 has a magnitude Eo, calculate the totala electric flux through...
Bl A co-axial cable can be treated as two straight cylindrical layers with length of h -6 cm, radii of a lcm and b 4 cm, that is filled with air. Let there be a charge ( +12 pC) on the inner lay...
Bl A co-axial cable can be treated as two straight cylindrical layers with length of h -6 cm, radii of a lcm and b 4 cm, that is filled with air. Let there be a charge ( +12 pC) on the inner layer and - -12 pC) on the outer layer (as shown in Fig. Bla). Assume each layer has negligible thickness. -Q bt Fig. Bla Fig. Blb (1) Find the electric field intensity E (p) and potential difference in...
A coaxial cable consists of an internal solid cylindrical conductor of radius a and a cylindrical...
A coaxial cable consists of an internal solid cylindrical conductor of radius a and a cylindrical conductive thin shell of radius b separated by a dielectric of permittivity e.Assuming the length of the cable as infinite and that it carries a linear electric charge of qlcoulombs/meter, find the following:1. The electric field E for a ≤p≤b2. The voltage difference between the two conductor surfaces. 3. Since the maximum value of the electric field occurs at the surface p = a,...
A coaxial cable used in a transmission line has an inner radius of 0.12 mm and...
A coaxial cable used in a transmission line has an inner radius of 0.12 mm and an outer radius of 0.76 mm. Calculate the capacitance per meter for the cable. Assume that the space between the conductors is filled with a material with a dielectric constant of 2.9.
A coaxial cable, as shown in Figure 2, consists of an inner conductor of radius a,...
A coaxial cable, as shown in Figure 2, consists of an inner conductor of radius a, surrounded by an outer conductor of radius b, along the same axis. The space is filled with dielectric. The cable is connected to a power supply and it is deposited a charge of +Q uniformly along the length of the surface of the inner conductor and a charge - Q uniformly along the length of the inner surface of the outer conductor. No fields...
The figure to the right shows a cylindrical capacitor with inner radius b and outer radius a. Between the cylinders (shaded region) is a dielectric of constant k.
The figure to the right shows a cylindrical capacitor with inner radius b and outer radius a. Between the cylinders (shaded region) is a dielectric of constant k. If the inner cylinder contains charge +Q and out charge -Q determine an expression for: The electric field in the region between the cylinders. The potential difference between in the region between the cylinders. The capacitance of the capacitor. The energy density of the capacitor
Problem 2: Consider a coaxial cable with an inner conductor radius of a and outer conductor radius of b. The region between the conductors is filled with a linear dielectric material that has a relative permittivity er (recall, ε = Er €0). A voltage V is applied to a length h of the cable, resulting in a free-charge of qf residing on the inner conductor and -9f residing on the outer conductor. Part a Determine the D, E, and P...
A coaxial line with cylindrical symmetry as shown in cross section by Figure A1-1. It is constructed from a solid inner conductor of radius a, a hollow outer conductor of internal radiusb and is filled with a dielectric having relative permittivity & 2b 2a Figure A1-1: Cross section of a coaxial transmission line (a) Draw lines of electric and magnetic flux for a coaxial transmission line. (4 marks) (b) Use Gauss' Law and a relationship between electric field and voltage...
7.U)A cylindrical capacitor of length L consists of coaxial conducting surfaces of radii a and b (Fig. 4). The dielectric material between the surfaces has a relative permittivity s, 2+(4/r) for a <r< b. (a) Determine the capacitance of this capacitor. (b) Find the electrostatic energy stored in the dielectric region. (Neglect the fringing of the electric field at the edge.) (1490) If the constant electric field in Fig. 5 has a magnitude Eo, calculate the totala electric flux through...
Bl A co-axial cable can be treated as two straight cylindrical layers with length of h -6 cm, radii of a lcm and b 4 cm, that is filled with air. Let there be a charge ( +12 pC) on the inner layer and - -12 pC) on the outer layer (as shown in Fig. Bla). Assume each layer has negligible thickness. -Q bt Fig. Bla Fig. Blb (1) Find the electric field intensity E (p) and potential difference in...
A coaxial cable, as shown in Figure 2, consists of an inner conductor of radius a, surrounded by an outer conductor of radius b, along the same axis. The space is filled with dielectric. The cable is connected to a power supply and it is deposited a charge of +Q uniformly along the length of the surface of the inner conductor and a charge - Q uniformly along the length of the inner surface of the outer conductor. No fields...
