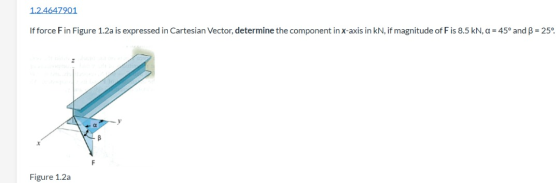

1.2.4647901 If force Fin Figure 1.2a is expressed in Cartesian Vector, determine the component in x-axis...

Question

Question

1.2.4647901 If force Fin Figure 1.2a is expressed in Cartesian Vector, determine the component in x-axis in KN, if magnitude

engineering Civil-Engineering

Answer 1

Answer #1

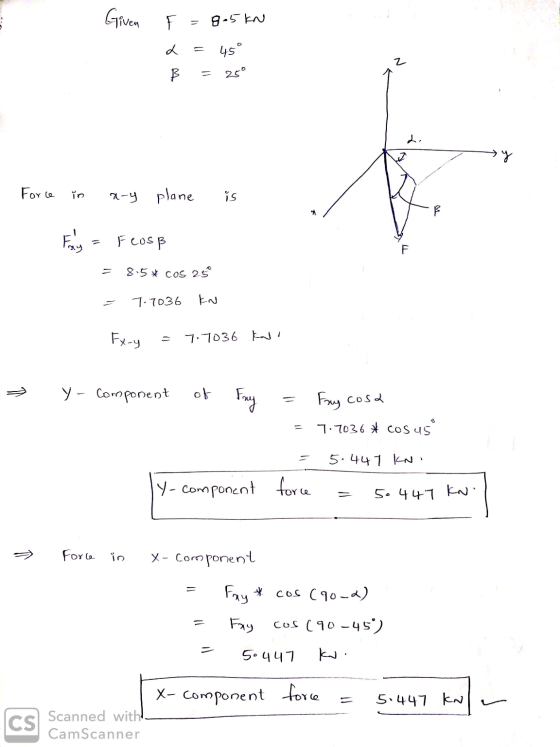

X-component force = 5.447 KN

Y-component force = 5.477 KN

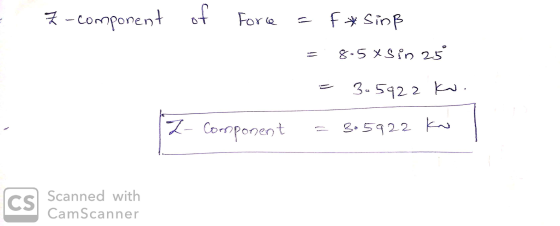

Z-component force = 3.5922 KN

Ping me in comment if u need any clarification

Feel free to UPVOTE???????????

Add a comment

Answer 2

Similar Homework Help Questions

1) (30 pts) A Force is given with F= BC kN in the figure below. According...

1) (30 pts) A Force is given with F= BC kN in the figure below. According to this configuration, please; a) write the force in Cartesian vector form, b) write unit vector of AB in Cartesian vector form, c) find magnitude of the projected component of the force Facting along the axis AB of pipe. d) determine the projected component of the force Facting along the axis AB of pipe in Cartesian vector form. B 4 m 6 m 3...
The magnitude of the force vector F is 75.6 newtons. The x component of this vector...

The magnitude of the force vector F is 75.6 newtons. The x component of this vector is directed along the +x axis and has a magnitude of 67.2 newtons. The y component points along the +y axis. Find the direction of F relative to the +x axis in degrees.Find the component of F (in Newtons), in the previous question, that points along the +y axis.
If force F is to have a component along the u axis of F 8.0 kN,...

If force F is to have a component along the u axis of F 8.0 kN, determine the magnitude of F tu 45° 105° 0 Part B Determine the magnitude of the component F, along the v axis. Express your answer to three significant figures and include the appropriate units.

Determine the magnitude of the projected component of the F=6 kN force acting along the axis...

Determine the magnitude of the projected component of the F=6 kN force acting along the axis BC of the pipe. Suppose that a=2.6m and b=4.6m 5 m 1 m x.
Express the Force in Cartesian vector form in Figure 1. Then, determine: a) Its magnitude b) Coordinate direction angles

Express the Force in Cartesian vector form in Figure 1. Then, determine: a) Its magnitude b) Coordinate direction angles
3. The bracket is subjected to the two forces shown. Express each force in Cartesian vector...

3. The bracket is subjected to the two forces shown. Express each force in Cartesian vector form and then determine the resultant force FR. Find the magnitude and coordinate direction angles of the resultant force. F, = 400 N 60° 45° 120 25° 35° F, = 250 N

Question 1 options: Determine the moment of force F about an axis extending between A and...

Question 1 options: Determine the moment of force F about an axis extending between A and C. Express the result as a Cartesian vector. Use F = {5i + 10j - 4k} kN, L1 = 5 m, L2 = 4 m, and L3 = 3 m for your calculations. Your answer: x-component of the resultant moment in kNm (round the result to 1 decimal place): y-component of the resultant moment in kNm (round the result to 1 decimal place): z-component...
A force F⃗ of magnitude F making an angle θ with the x axis is applied...

A force F⃗ of magnitude F making an angle θ with the x axis is applied to a particle located along axis of rotation A, at Cartesian coordinates (0,0) in the figure. The vector F⃗ lies in the xy plane, and the four axes of rotation A, B, C, and D all lie perpendicular to the xy plane. A particle is located at a vector position r⃗ r→r_vec with respect to an axis of rotation (thus r⃗ r→r_vec points from...
5. (8 points) A force 250 with the positive x axis. Draw the force vector on...

5. (8 points) A force 250 with the positive x axis. Draw the force vector on the x-y plane scalar componen vector has a magnitude of 15.0 newtons and makes at an angle of t and (b) the y scalar component of the vector and find (a) the x 6. (8 pts.) A force vector has x component of -41 newtons and a y component of -27 newtons. Find (a) the magnitude and (b) the direction the force vector.

Express the force as a Cartesian vector. (Figure 1) Express your answer in terms of the...

Express the force as a Cartesian vector. (Figure 1) Express your answer in terms of the unit vectors i, j and k. 2 F = 50 lbr 45° 5
